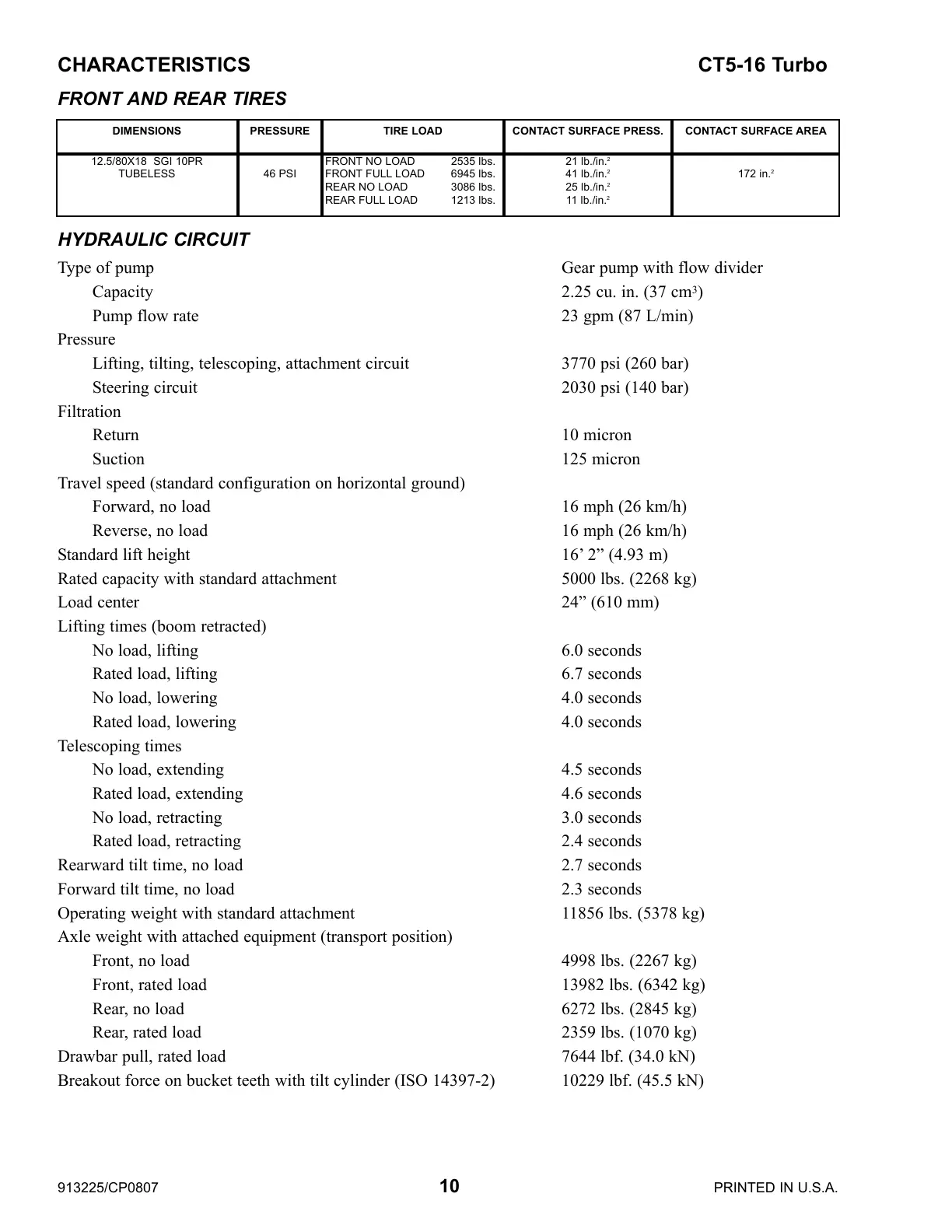

HYDRAULIC CIRCUIT
Type of pump Gear pump with flow divider
Capacity 2.25 cu. in. (37 cm
3
)
Pump flow rate 23 gpm (87 L/min)
Pressure
Lifting, tilting, telescoping, attachment circuit 3770 psi (260 bar)
Steering circuit 2030 psi (140 bar)
Filtration
Return 10 micron
Suction 125 micron
Travel speed (standard configuration on horizontal ground)
Forward, no load 16 mph (26 km/h)
Reverse, no load 16 mph (26 km/h)
Standard lift height 16’ 2” (4.93 m)
Rated capacity with standard attachment 5000 lbs. (2268 kg)
Load center 24” (610 mm)
Lifting times (boom retracted)
No load, lifting 6.0 seconds
Rated load, lifting 6.7 seconds
No load, lowering 4.0 seconds
Rated load, lowering 4.0 seconds
Telescoping times
No load, extending 4.5 seconds
Rated load, extending 4.6 seconds
No load, retracting 3.0 seconds
Rated load, retracting 2.4 seconds
Rearward tilt time, no load 2.7 seconds
Forward tilt time, no load 2.3 seconds
Operating weight with standard attachment 11856 lbs. (5378 kg)
Axle weight with attached equipment (transport position)
Front, no load 4998 lbs. (2267 kg)
Front, rated load 13982 lbs. (6342 kg)
Rear, no load 6272 lbs. (2845 kg)
Rear, rated load 2359 lbs. (1070 kg)
Drawbar pull, rated load 7644 lbf. (34.0 kN)
Breakout force on bucket teeth with tilt cylinder (ISO 14397-2) 10229 lbf. (45.5 kN)
CHARACTERISTICS CT5-16 Turbo
FRONT AND REAR TIRES
DIMENSIONS PRESSURE TIRE LOAD CONTACT SURFACE PRESS. CONTACT SURFACE AREA
12.5/80X18 SGI 10PR
TUBELESS 46 PSI
FRONT NO LOAD 2535 lbs.
FRONT FULL LOAD 6945 lbs.
REAR NO LOAD 3086 lbs.
REAR FULL LOAD 1213 lbs.
21 lb./in.
2
41 lb./in.
2
25 lb./in.
2
11 lb./in.
2
172 in.
2
