PRINTED IN U.S.A. 9 913225/CP0807
HYDRAULIC CIRCUIT
Type of pump Gear pump with flow divider
Capacity 2.25 cu. in. (37 cm
3
)
Pump flow rate 23 gpm (87 L/min)
Pressure
Lifting, tilting, telescoping, attachment circuit 3336 psi (230 bar)
Steering circuit 2030 psi (140 bar)
Filtration
Return 10 micron
Suction 125 micron
Travel speed (standard configuration on horizontal ground)
Forward, no load 16 mph (26 km/h)
Reverse, no load 16 mph (26 km/h)
Standard lift height 16’2” (4.93 m)
Rated capacity with standard attachment 5000 lbs. (2268 kg)
Load center 24” (610 mm)
Lifting times (boom retracted)
No load, lifting 6.0 seconds
Rated load, lifting 6.7 seconds
No load, lowering 4.0 seconds
Rated load, lowering 4.0 seconds
Telescoping times
No load, extending 4.5 seconds
Rated load, extending 4.6 seconds
No load, retracting 3.0 seconds
Rated load, retracting 2.4 seconds
Rearward tilt time, no load 2.7 seconds
Forward tilt time, no load 2.3 seconds
Operating weight with standard attachment 11556 lbs. (5242 kg)
Axle weight with attached equipment (transport position)
Front, no load 4895 lbs. (2220 kg)
Front, rated load 13800 lbs. (6260 kg)
Rear no load 6173 lbs. (2800 kg)
Rear, rated load 2337 lbs. (1060 kg)
Drawbar pull, rated load 7644 lbf. (34.0 kN)
Breakout force on bucket teeth with tilt cylinder (ISO 14397-2) 9105 lbf. (40.5 kN)

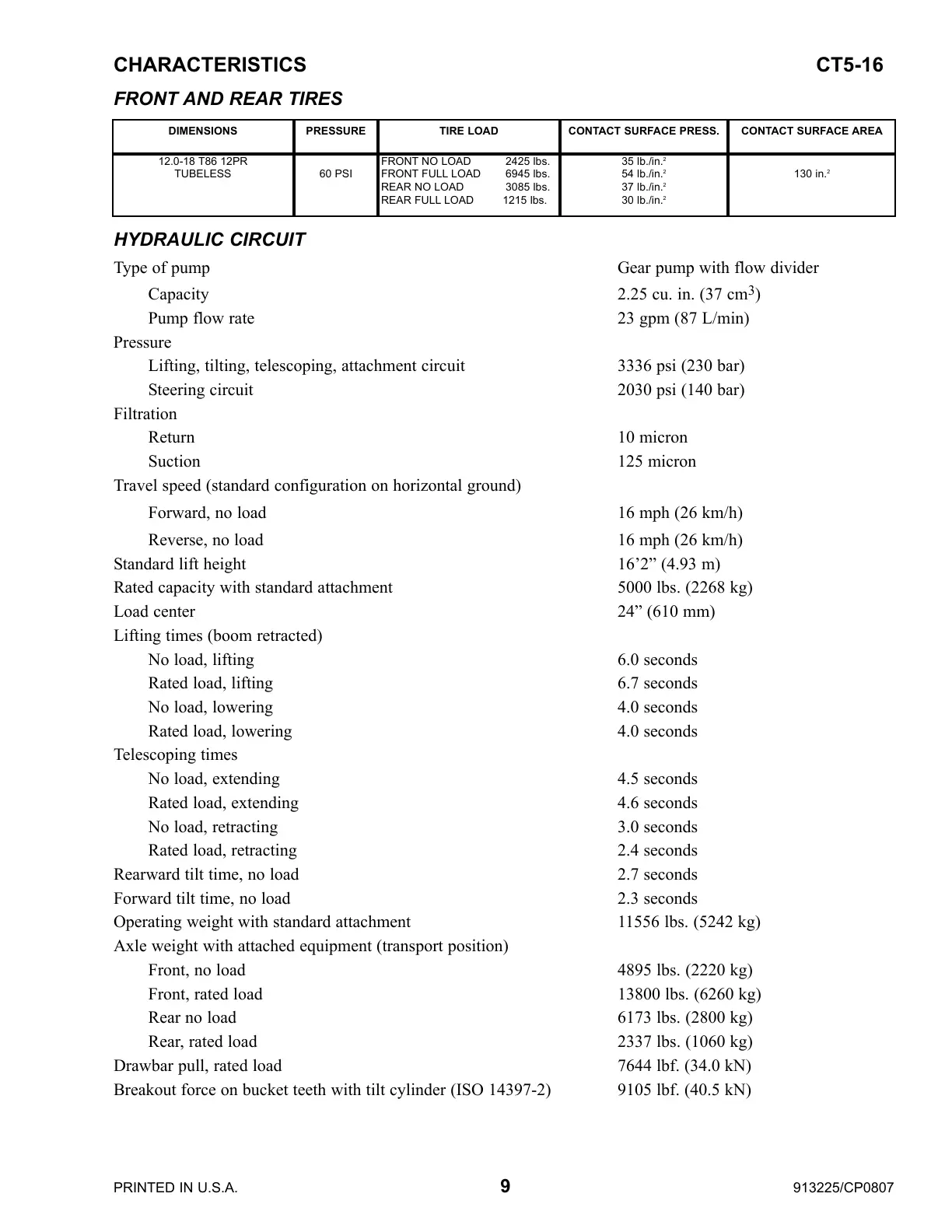

CHARACTERISTICS CT5-16
FRONT AND REAR TIRES
DIMENSIONS PRESSURE TIRE LOAD CONTACT SURFACE PRESS. CONTACT SURFACE AREA
12.0-18 T86 12PR
TUBELESS 60 PSI
FRONT NO LOAD 2425 lbs.
FRONT FULL LOAD 6945 lbs.
REAR NO LOAD 3085 lbs.
REAR FULL LOAD 1215 lbs.
35 lb./in.
2
54 lb./in.
2
37 lb./in.
2
30 lb./in.
2
130 in.
2
