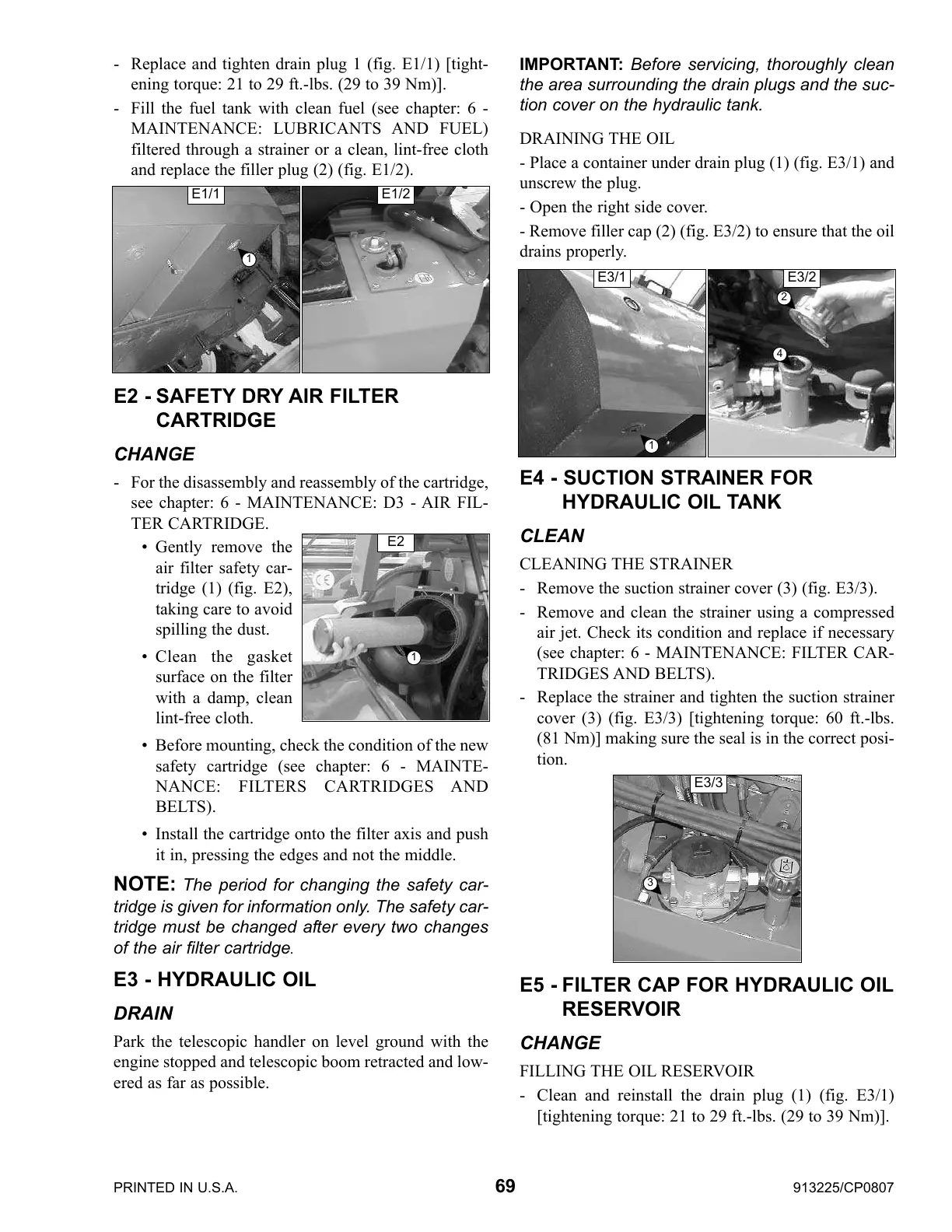

PRINTED IN U.S.A. 69 913225/CP0807
- Replace and tighten drain plug 1 (fig. E1/1) [tight-
ening torque: 21 to 29 ft.-lbs. (29 to 39 Nm)].
- Fill the fuel tank with clean fuel (see chapter: 6 -
MAINTENANCE: LUBRICANTS AND FUEL)
filtered through a strainer or a clean, lint-free cloth
and replace the filler plug (2) (fig. E1/2).
E2 - SAFETY DRY AIR FILTER
CARTRIDGE
CHANGE
- For the disassembly and reassembly of the cartridge,
see chapter: 6 - MAINTENANCE: D3 - AIR FIL-
TER CARTRIDGE.
• Gently remove the
air filter safety car-
tridge (1) (fig. E2),
taking care to avoid
spilling the dust.
• Clean the gasket
surface on the filter
with a damp, clean
lint-free cloth.
• Before mounting, check the condition of the new
safety cartridge (see chapter: 6 - MAINTE-
NANCE: FILTERS CARTRIDGES AND
BELTS).
• Install the cartridge onto the filter axis and push
it in, pressing the edges and not the middle.
NOTE: The period for changing the safety car-
tridge is given for information only. The safety car-
tridge must be changed after every two changes
of the air filter cartridge.
E3 - HYDRAULIC OIL
DRAIN
Park the telescopic handler on level ground with the
engine stopped and telescopic boom retracted and low-
ered as far as possible.
E1/1 E1/2
E2
1
1
IMPORTANT: Before servicing, thoroughly clean
the area surrounding the drain plugs and the suc-
tion cover on the hydraulic tank.
DRAINING THE OIL
- Place a container under drain plug (1) (fig. E3/1) and
unscrew the plug.
- Open the right side cover.
- Remove filler cap (2) (fig. E3/2) to ensure that the oil
drains properly.
E4 - SUCTION STRAINER FOR
HYDRAULIC OIL TANK
CLEAN
CLEANING THE STRAINER
- Remove the suction strainer cover (3) (fig. E3/3).
- Remove and clean the strainer using a compressed
air jet. Check its condition and replace if necessary
(see chapter: 6 - MAINTENANCE: FILTER CAR-
TRIDGES AND BELTS).
- Replace the strainer and tighten the suction strainer
cover (3) (fig. E3/3) [tightening torque: 60 ft.-lbs.
(81 Nm)] making sure the seal is in the correct posi-
tion.
E5 - FILTER CAP FOR HYDRAULIC OIL
RESERVOIR
CHANGE
FILLING THE OIL RESERVOIR
- Clean and reinstall the drain plug (1) (fig. E3/1)
[tightening torque: 21 to 29 ft.-lbs. (29 to 39 Nm)].
E3/1 E3/2
1
2
4
E3/3
3
