PRINTED IN U.S.A. 85 913225/CP0807

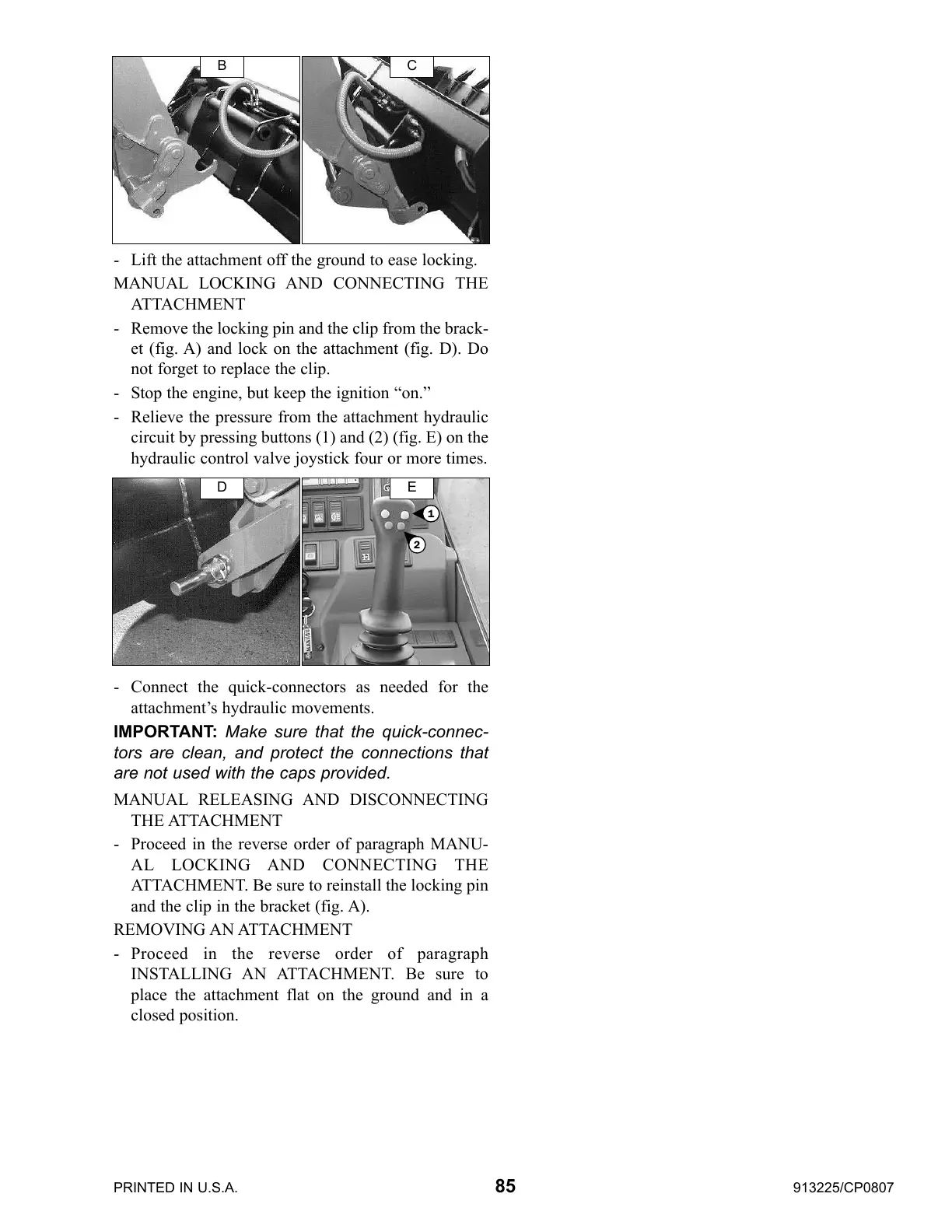

- Lift the attachment off the ground to ease locking.
MANUAL LOCKING AND CONNECTING THE
ATTACHMENT
- Remove the locking pin and the clip from the brack-
et (fig. A) and lock on the attachment (fig. D). Do
not forget to replace the clip.
- Stop the engine, but keep the ignition “on.”
- Relieve the pressure from the attachment hydraulic
circuit by pressing buttons (1) and (2) (fig. E) on the
hydraulic control valve joystick four or more times.
- Connect the quick-connectors as needed for the
attachment’s hydraulic movements.
IMPORTANT: Make sure that the quick-connec-
tors are clean, and protect the connections that
are not used with the caps provided.
MANUAL RELEASING AND DISCONNECTING
THE ATTACHMENT
- Proceed in the reverse order of paragraph MANU-
AL LOCKING AND CONNECTING THE
ATTACHMENT. Be sure to reinstall the locking pin
and the clip in the bracket (fig. A).
REMOVING AN ATTACHMENT
- Proceed in the reverse order of paragraph
INSTALLING AN ATTACHMENT. Be sure to
place the attachment flat on the ground and in a
closed position.
B C
D E
1
2
