RT250 - LOADER ARM
HIGH-FLOW HYDRAULICS CIRCUIT - (OPTION)
01 100541 CLAMP, HOSE 1.00 IN. TWIN 1
02 50302380 WASHER/BULKHEAD 4
03 136226 CLAMP, HOSE .075" x 0.41" 1
04 650733 CS 5/16 x 2-1/2" C5ZY 1
05 274114 HOSE, MP 6 x 110.0 IN. * 1
06 068938 90 MJ06-MAORB06 1
07 273631 HOSE, MP 12 x 106.0 IN. 1
08 273631 HOSE, MP 12 x 106.0 IN. 1
09 50300089 45 BULKHD MJ16-MJ16 2
10 50301009 TUBE, HIGH-FLOW 1
11 50301012 TUBE, HIGH-FLOW 1
12 274605 45 MJ16-MAORB12 2
13 50302469 VALVE, 4-SPOOL EH CONTROL 1
18 275977 BRACKET, COUPLER 1
19 076589 CS FL LOCK 3/8" x 1" C5ZY 2
20 137059 COUPLER, FEMALE MJ12 1
21 131958 COUPLER, MALE MJ08 1
22 137058 COUPLER, MALE MJ12 1
23 064354 CS FL LOCK 5/16" x 1" C5ZY 4
24 276002 SHIELD 1
HOSE CONNECTION:
#05 connects to hydraulic tank return (front side of tank)
#07 connects to main hydraulic valve (A4)
#08 connects to main hydraulic valve (B4)
* Also shown on the next page as item 29.
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.

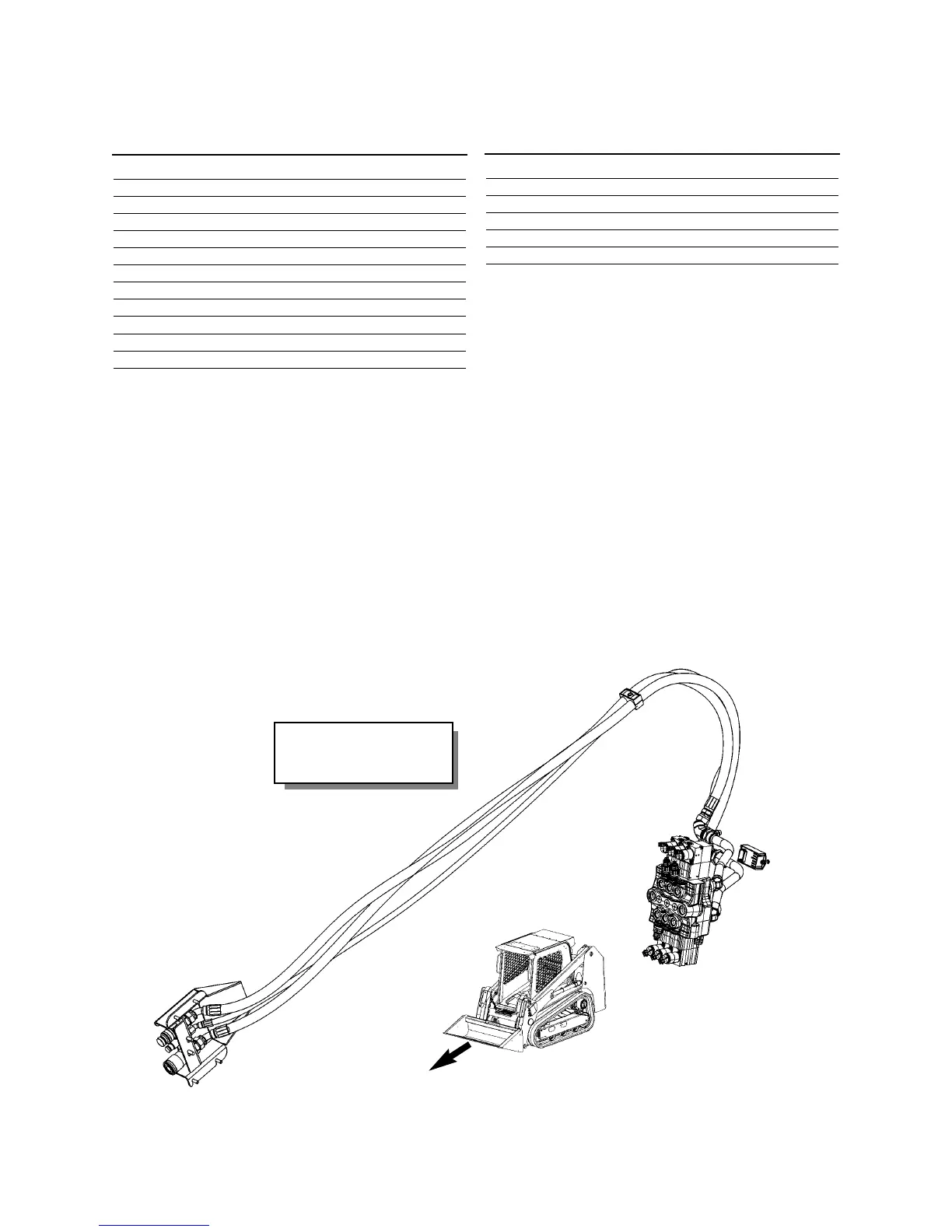

High-Flow Hydraulics
(located on right-side loader arm)
To Next Page
