RT250 - HYDRAULIC COMPONENTS

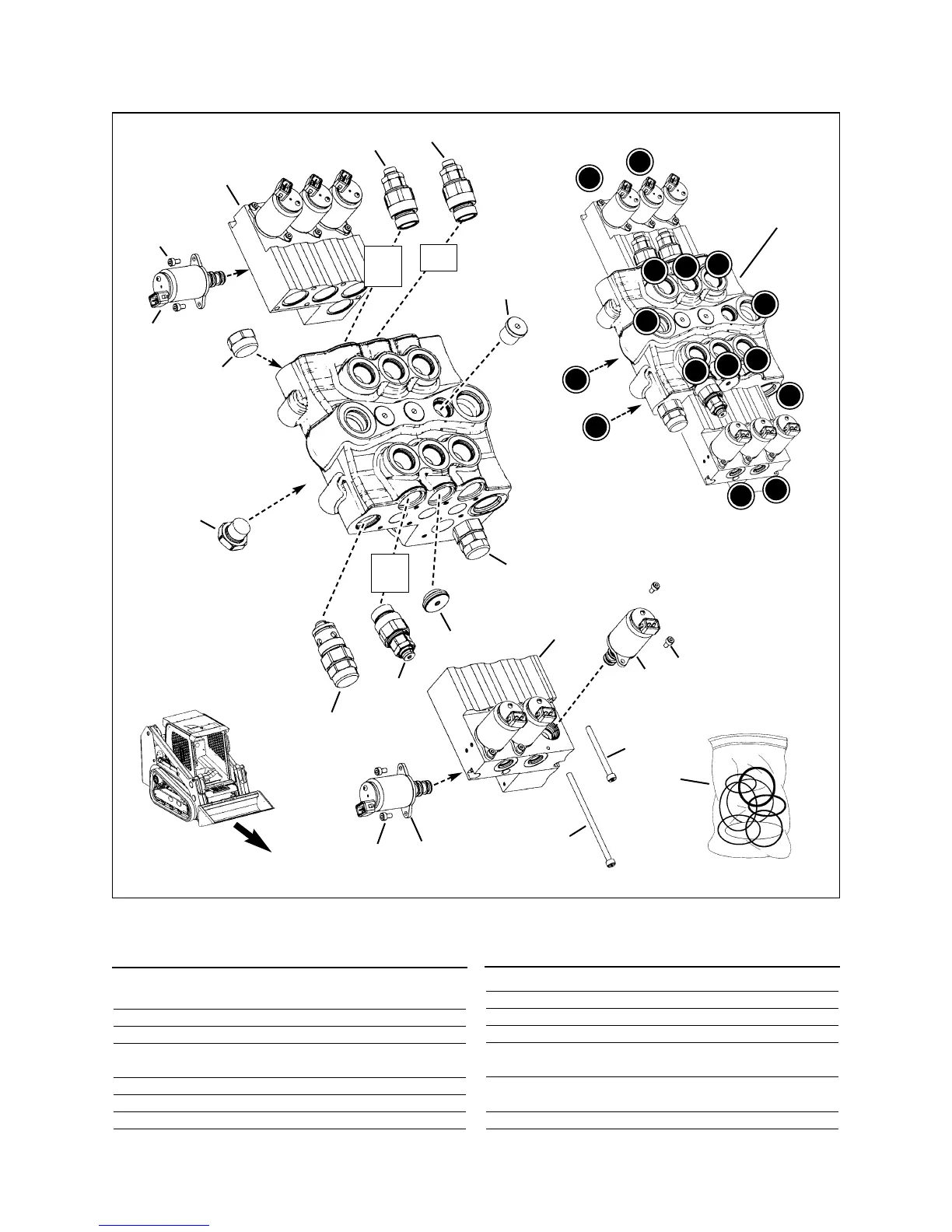

HYDRAULIC MAIN VALVE - (HIGH-FLOW HYDRAULICS — OPTION)
01 50302469 VALVE, 4-SPOOL EH CONTROL 1
(includes all items shown)
02 NSS SOCKET HEAD SCREW, METRIC 16
03 50280185 PROPORTIONAL VALVE (12 VDC) 8
04 50280177 EH CONTROL 4-SECTION 1
(includes (4) item #3; (8) item #2)
05 NSS SOCKET HEAD SCREW, METRIC 6
06 NSS SOCKET HEAD SCREW, METRIC 6
07 50280176 MAIN RELIEF VALVE (210 BAR) 1
08 240278 COMBINED VALVE (240-A BAR) 2
(port relief)
09 240274 PLUG KIT SECONDARY RELIEF 1
10 50280178 MAIN RELIEF VALVE (200 BAR) 1
11 103052 CHECK VALVE 1
12 240272 CHECK VALVE 3
13 240277 COMBINED VALVE (120 BAR) 1
(port relief)
14 50280180 EH CONTROL 4-SECTION 1
(includes (4) item #3; (8) item #2)
15 103060 PLUG KIT, 1-1/16-12 UNF 1
16 50280181 SEAL KIT (not shown) 1
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
1
T
B3
B2
B1
P2
A3
A2
A1
P1
A4
B4
P
T
T
P
13
8
12
2
3
11
7
8
2
10
3
9
3
6
5
2
4
14
16
15
Loader
Arm
(Up)
Loader
Arm
(Down)
Bucket
(Back)
