913364/BP0314 136 Printed in U.S.A.
RT250 - HYDRAULIC COMPONENTS

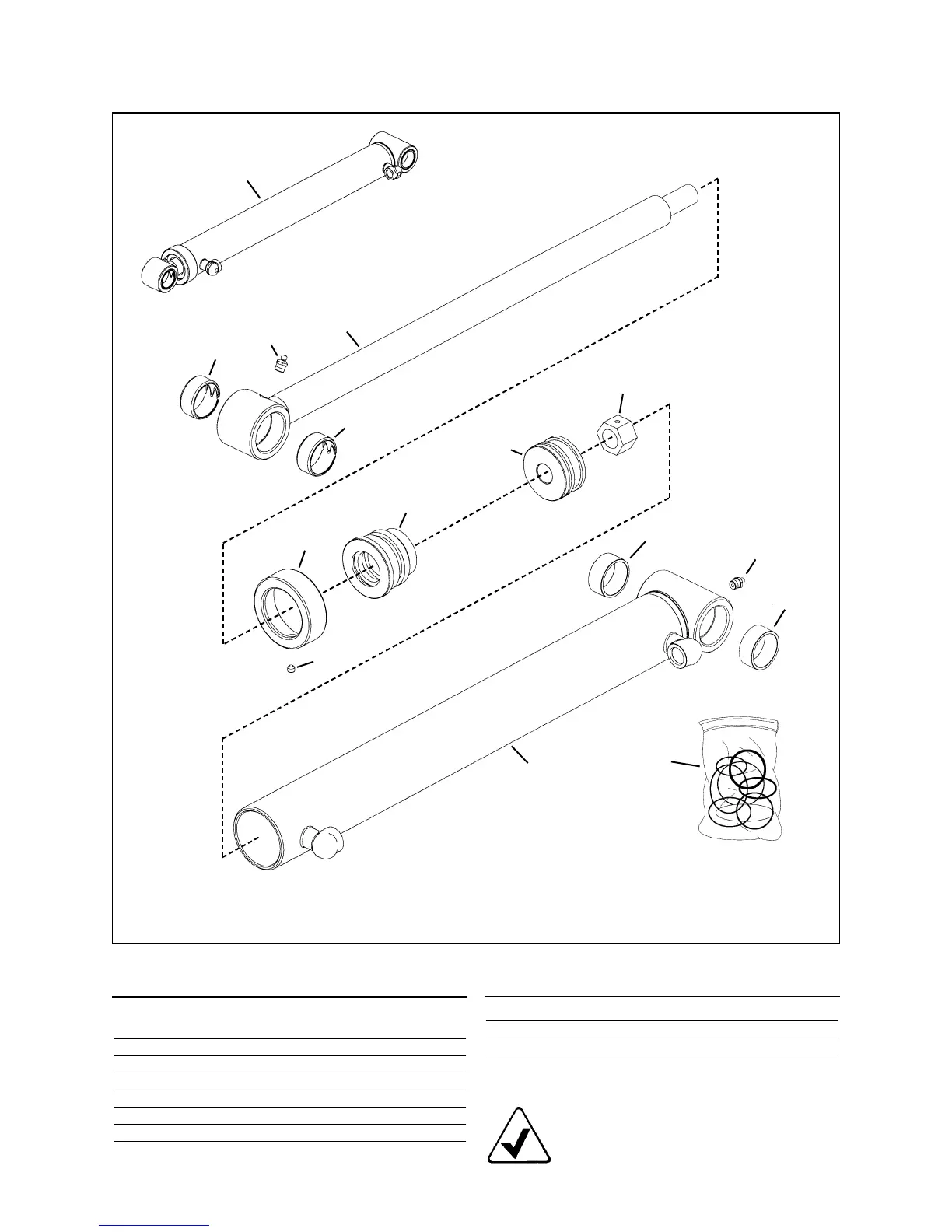

TILT CYLINDER
01 50300621 CYLINDER, TILT 1
(includes all items shown)
02 131488 BUSHING (included with item #4) 2
03 570019 ZERK 1/4"-28 STR. SELF-TAP 2
04 50286409 ROD WELDMENT 1
05 189143 HEAD GLAND CAP 1
06 L99857 SETSCREW, 5/16 x 1/4 1
07 187618 HEAD GLAND 1
08 50286408 PISTON 1
09 L500668 LN 1-1/8"-12 UNF (collared) 1
10 50286410 POLYLUBE BEARING 2
11 NSS TUBE WELDMENT 1
12 50286411 SEAL KIT (not shown) 1
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
12
2
3
4
5
7
8
9
6
3
10
10
2
11
1
NOTE: The quantities shown are for one
cylinder; the machine uses two cylinders.
