Gehl RT250 - Cab Door - Latches (Optional Swing-Out Door)

913364/BP0314 10 Printed in U.S.A.
RT250 - CAB

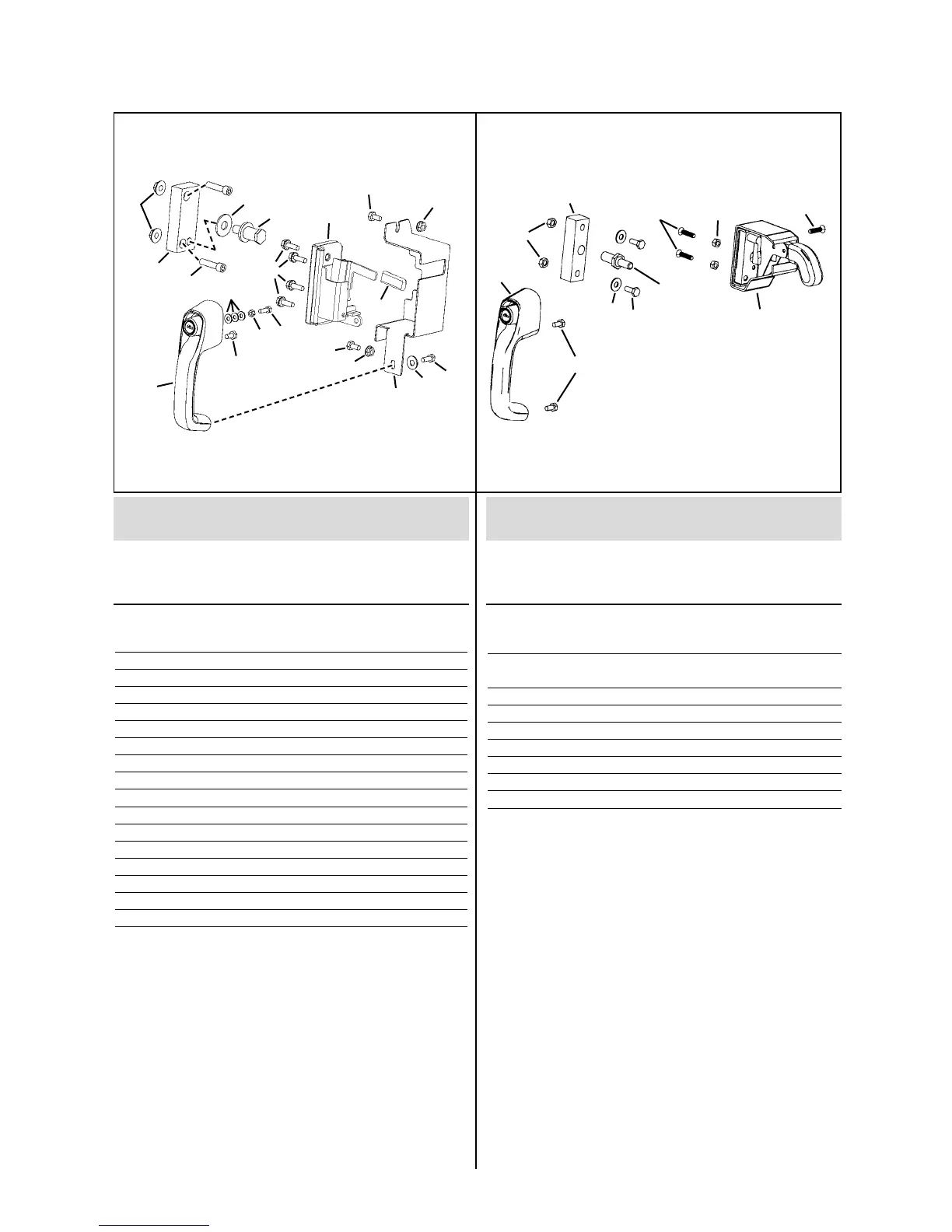

CAB DOOR - LATCHES (OPTIONAL SWING-OUT DOOR)
1
2
6
7
4
5
3
8
9
10
8
01 273340 HANDLE, PUSH BUTTON 1
50280186 KEY, 8001 (14603) (not shown) 1
02 656092 CS M6-1x12 C8.8 ZY DIN931 2
(included with item # 1)
03 654002 FW 1/4” AWZY AR
04 650426 CS 1/4” x 1-1/4” C5ZY 2
05 187724 STRIKER, CAM LATCH 1
06 070634 LN LG FL SERR 1/4” CZ AR
07 274594 MOUNT, STRIKER 1
08 651800 FHSCS M6-1x30 C8.8 ZY DIN7991 3
09 651457 LN INS M6-1 C8 ZY DIN6924 2
10 182076 LATCH, CAM 1
1
2
3
4
5
13
14
15
16
17
18
12
6
7
6
7
8
9
10
11
01 273340 HANDLE, PUSH BUTTON 1
50280186 KEY, 8001 (14603) (not shown) 1
02 656092 CS M6-1x12 C8.8 ZY DIN931 1
03 650584 FW #10 AZY AR
04 656100 HN M5-0.8 C8 ZY 1
05 651521 CS M5-0.8 x 16 C8.8 ZY 1
06 650542 CS 1/4" x 1/2" C5ZY 2
07 210-32184 HN FL CLOC 1/4" CZY 2
08 50303454 COVER 1
09 654002 FW 1/4 AWZY 1
10 656149 CS M16-1x16 C8.8 ZY 1
11 50303465 LATCH HANDLE GRIP 1
12 50303453 LATCH 1
13 072916 CS FL LOCK 1/4" x 3/4" C5ZY 4
14 420-36187 STRIKER 1
15 654046 FW 7/16" AWZY AR
16 650896 SHCS HS 5/16" x 1-1/4" C 2
17 50303416 MOUNT, STRIKER 1
18 210-31017 HN LF CLOC 5/16" CZY 2
EARLY-STYLE DOOR LATCH
LATE-STYLE DOOR LATCH
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
