RT250 - CAB

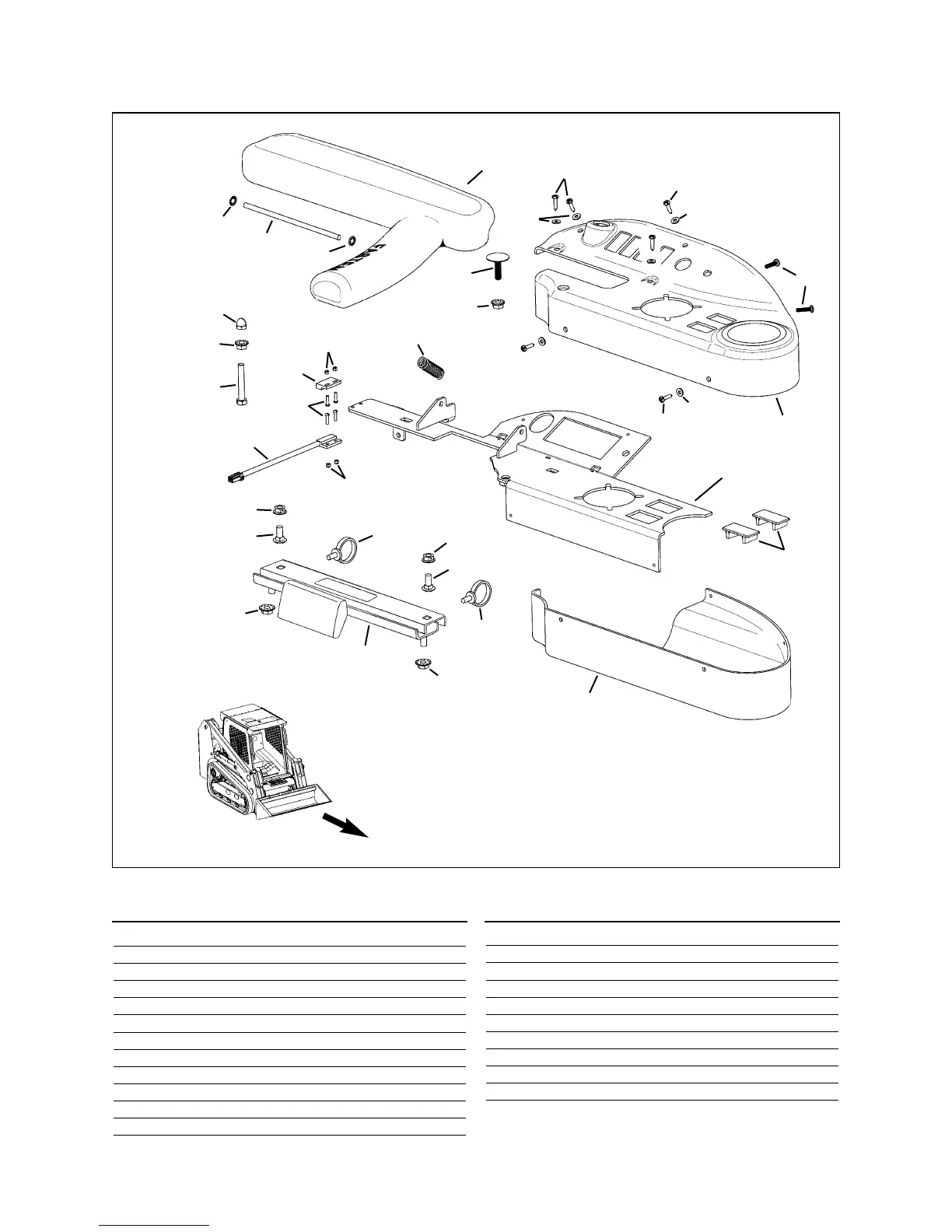

CONSOLE - LEFT SIDE
(Late Style - See Note on Facing Page)
8
1
3
3
4
4
2
4
3
24
5
21
20
19
20
16
18
17
16
18
17
12
14
15
22
7
23
13
12
11
6
7
9
10
10
01 50303477 COVER, JOYSTICK (LH) 1
02 273071 SCREW, TPH TF CR #1014 x 3/4” 2
03 651783 SCREW/TPH TF CR#8-32x3/4 CZY 6
04 650606 FW #8 6
05 242636 PANEL PLUG AR
06 50303472 STOP, ARM BAR 1
07 210-19470 HN FL SLOC 5/16 CZY 2
08 273545 ARM REST (left) * 1
09 272542 BAR, ARM REST 1
10 272543 KEEPER, 0.5” SHAFT 2
11 275982 SPRING, 0.50 x 2.00 EXT. 1
12 651328 HLN INST #5-40 CZY 4
13 193157 MAGNET, SWITCH ACTUATOR 1
14 651212 RMS SLT #5-40 x 1/2 “ CZY 4
15 276026 SWITCH, PROXIMITY 1
16 273369 CABLE TIE 2
17 210-31017 HN FL CLOC 5/16 CZY 2
18 650687 CB 5/16” x 3/4” C5ZY 2
19 271858 SLIDE, ARM REST 1
20 070648 LN LG FL SERR 5/16” CZ 2
21 275979 COVER 1
22 L51035 HTB 5/16" x 2" C5ZY 1
23 50303432 SLIDER CAP 1
24 50303458 WELDMENT, JOYSTICK MOUNT 1
* Refer to page 27; item #25 for increased operator room.
