Printed in U.S.A. 131 913364/BP0314
RT250 - HYDRAULIC COMPONENTS

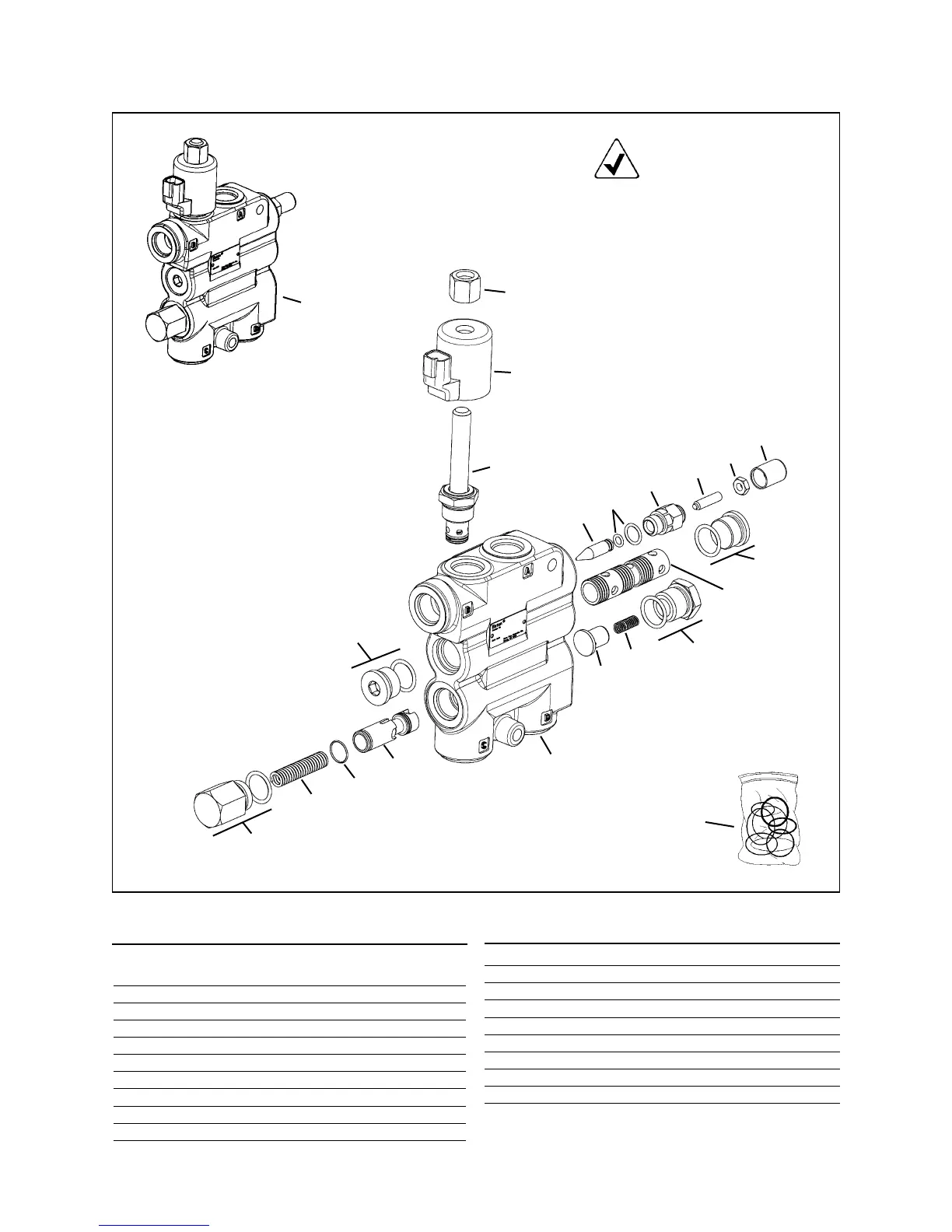

SELF-LEVEL VALVE - (SWITCHABLE) (OPTION)
01 271958 VALVE, SELF-LEVEL W/BYPASS 1
(includes all items shown)
02 NSS COIL NUT (included with item 4) 1
03 50280058 COIL, 12 VDC 1
04 50280059 VALVE, CARTRIDGE 2-WAY NC 1
05 080808 PIN 1
06 080809 ADJUSTMENT CAP 1
07 080811 SET SCREW 1
08 080810 NUT 1
09 NSS COVER 1
10 080813 PLUG ASSEMBLY (includes o-ring) 2
11 088472 PLUG ASSEMBLY (includes o-ring) 1
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
12 088471 SPRING 1
13 088473 LOAD CHECK 1
14 NSS O-RINGS (included with item #21) 2
15 NSS BODY 1
16 NSS SPOOL 1
17 350-27299 RETAINING RING 1
18 089961 SPRING 1
19 129004 PLUG ASSEMBLY (includes o-ring) 1
20 NSS SPOOL 1
21 129066 SEAL KIT 1
(includes item #9 and all o-rings shown)
2
3
4
5
6
7
8
9
11
12
13
16
17
18
19
10
20
15
21
1
11
14
NOTE: The orientation of the valve
on this page differs from the actual
orientation for installation.
