RT250 - HYDRAULIC COMPONENTS

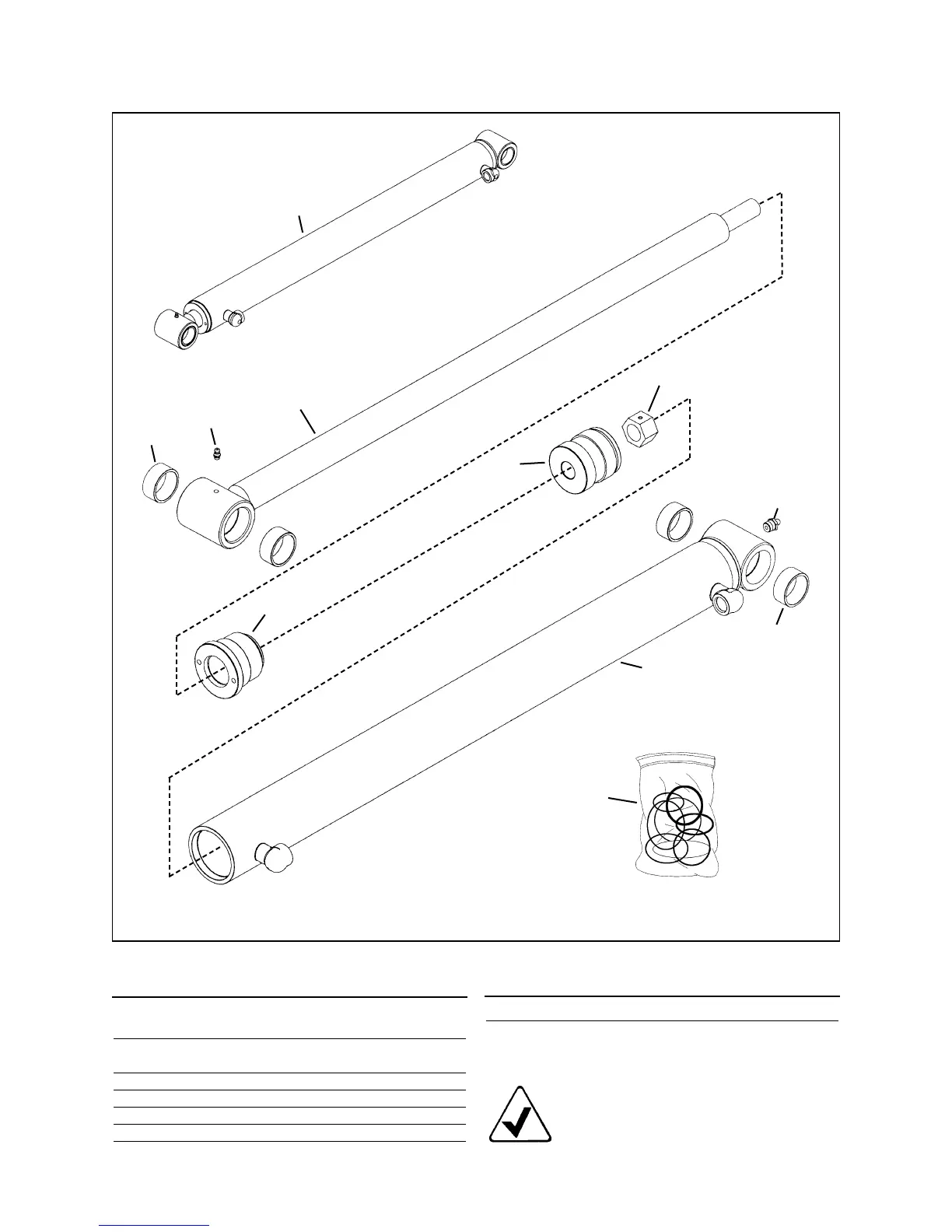

LIFT CYLINDER
01 50300622 CYLINDER, LIFT 1
(includes all items shown)
02 50286410 POLYLUBE BEARING 4
(two are included with item #4)
03 570019 ZERK 1/4"-28 STR. SELF-TAP 2
04 50286414 ROD WELDMENT 1
05 270489 HEAD GLAND 1
06 243203 PISTON 1
07 L500668 LN 1-1/8"-12 UNF (collared) 1
08 NSS TUBE WELDMENT 1
09 50286412 SEAL KIT (not shown) 1
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
9
5
2
3
4
6
7
8
3
2
1
NOTE: The quantities shown are for one
cylinder; the machine uses two cylinders.
