RT250 - TRACKS

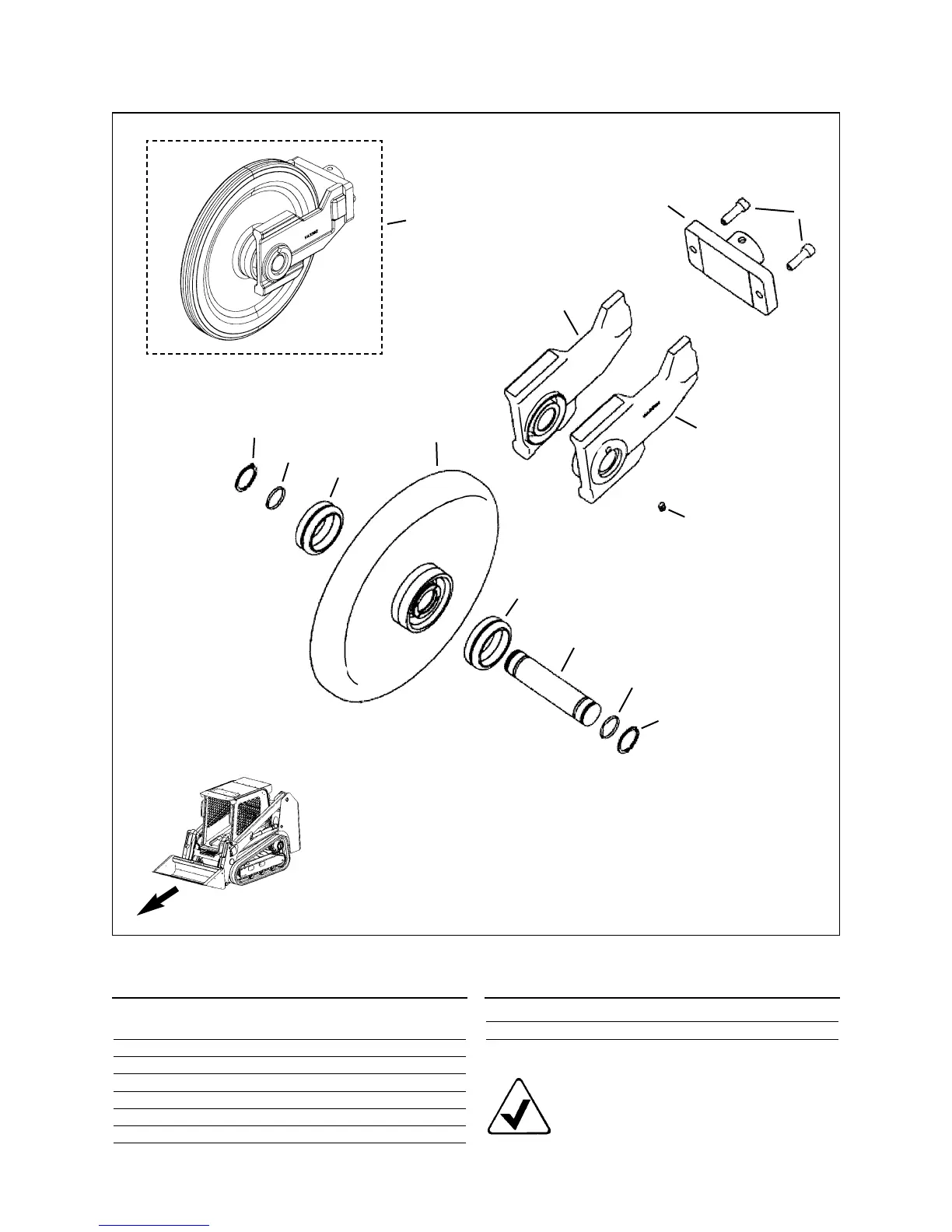

FRONT IDLER ASSEMBLY
01 271005 FRONT IDLER ASSEMBLY 1
(includes all items shown)
02 50280172 BOLT 2
04 50280171 TRACK IDLER WELDMENT 1
05 50280169 BRACKET 1
06 50280170 BRACKET W/HOLE 1
07 50280160 PLUG 1
08 50280163 SNAP RING 2
09 50280166 O-RING 2
10 50280168 SHAFT 1
11 50280155 SEAL GROUP 2
12 50280167 IDLER SHELL W/BUSHING 1
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
1
2
4
5
6
7
8
9
11
11
10
9
8
12
NOTE: Quantities shown are for one front idler
assembly. When ordering parts, be aware that
the machine uses two front idler assemblies,
one on each side.
