RT250 - CAB

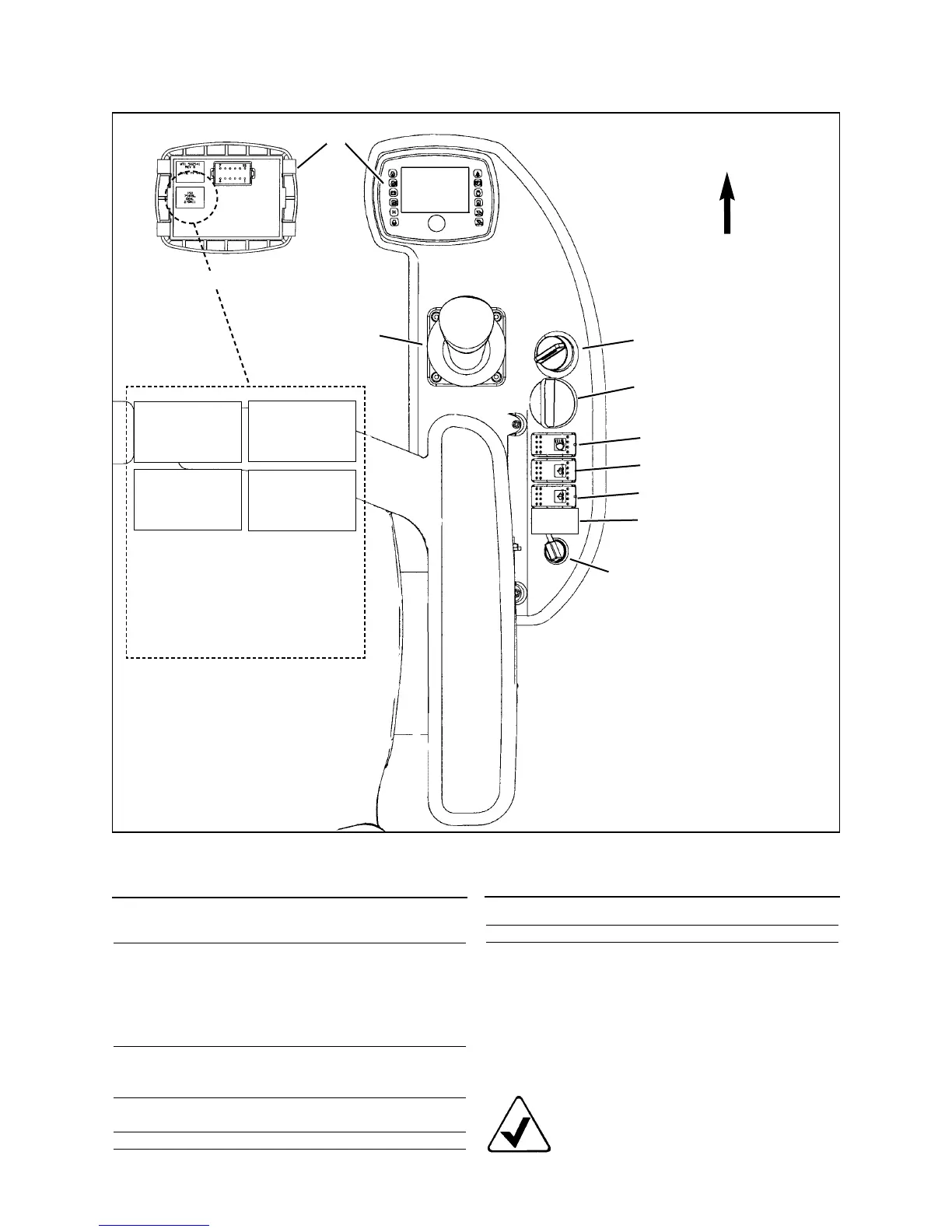

CONSOLE CONTROLS - RIGHT SIDE
9
8
7
6
5
4
3
FRONT
Ignition
Switch and
Key
2
IMPORTANT: Multiple displays are offered
for this machine; shown above is an example
of one of the stickers that is affixed to the
back of the display. Before ordering a
replacement display, refer to the sticker on
the back of the display, and use that part
number to order the replacement display.
ISO
50302670
ISO VAR
SPEED
50302671
ISO-DH
50302672
ISO-DH-VAR
SPEED
50302673
Rear of Display
1
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
01 See * DISPLAY, IN-CAB - CAN * 1
50300318 RUBBER BOOT, BUTTON 1
02 CONTROLLER (right) 1
651424 SCREW M6-1x20 C8.8 (not shown) 4
275459 One-button joystick - (standard float)
50300314 KIT, SWITCH (not shown) 1
275460 Two-button joystick - (Hydraglide™ float)
50300314 KIT, SWITCH (not shown) 1
03 272578 SWITCH, IGNITION (includes key) 1
50280186 KEY, 8001 (14603) (shown in switch) 1
50280187 KEY COVER, RUBBER 1
04 272531 THROTTLE CONTROL 1
651820 SCREW FCHM CR 10-32x3/4 2
05 271523 SWITCH, WORK LIGHTS 1
06 L71076 SWITCH, WIPER/WASHER - FRONT 1
07 L71076 SWITCH, WIPER/WASHER - REAR 1
08 242636 PANEL PLUG 1
09 137602 12 VOLT AUXILIARY POWER 1
137603 COVER, RUBBER 1
* IMPORTANT: Before ordering, refer to the sticker on the
back of the display—this is the part number for the display;
be sure to order the correct display for this machine.
NOTE: The illustration and parts list identifies
both standard and optional features for the
machine—not all machines will have the items
shown on this page.
