913364/BP0314 134 Printed in U.S.A.
RT250 - HYDRAULIC COMPONENTS

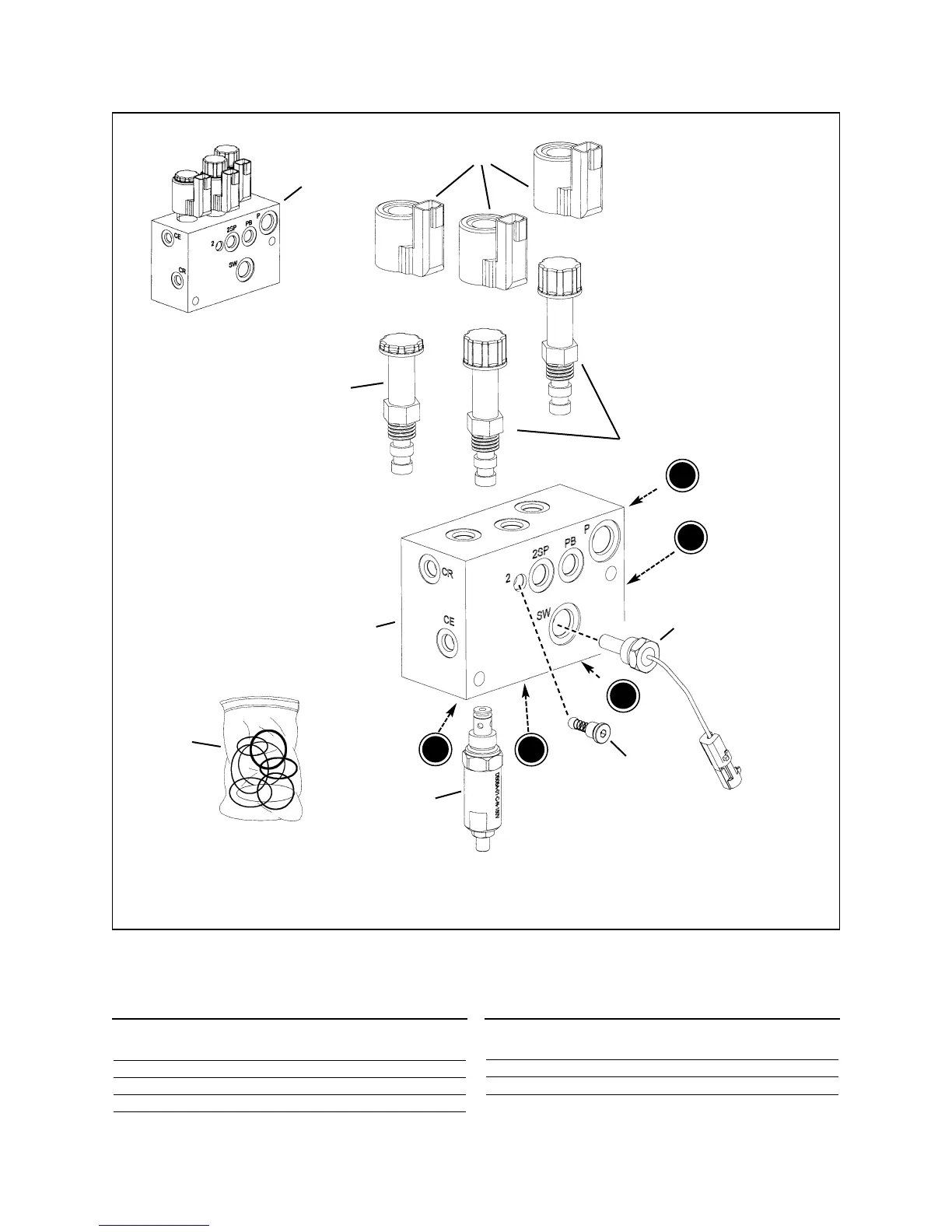

PILOT PRESSURE MANIFOLD
01 274477 MANIFOLD, PILOT PRESSURE 1
(includes all items shown—except #9)
02 184384 COIL, 12 VDC 3
03 184388 CARTRIDGE, 3-WAY 2
04 184389 CARTRIDGE, 4-WAY 1
05 NSS MANIFOLD BLOCK 1
06 50280052 SEAL KIT(not shown) 1
(includes seal for all cartridges and valves)
07 50280051 RELIEF VALVE 1
08 50280053 CHECK VALVE 1
09 132049 TEMPERATURE SWITCH 1
(not included with item #1)
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
2
3
4
8
7
5
6
9
4
T2
DR
VP
T1
1
(port)
