Printed in U.S.A. 119 913364/BP0314

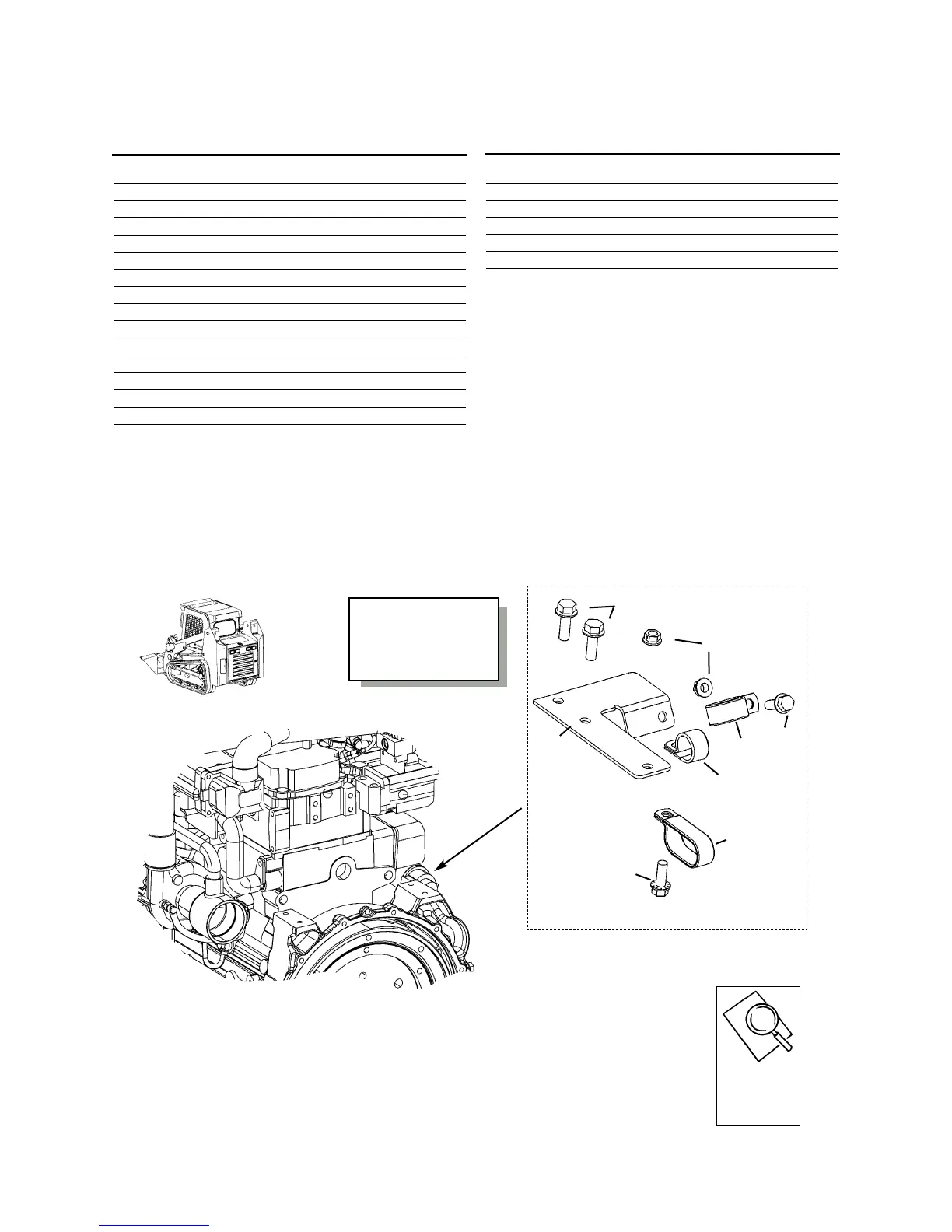

RT250 - HYDRAULIC SYSTEM
AUXILIARY / HIGH-FLOW HYDRAULICS MAIN VALVE CIRCUIT
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
01 271476 HOSE, MP 4 x 24.0 IN. 1
02 271476 HOSE, MP 4 x 24.0 IN. 1
03 230-32693 90 MJ04-MAORB6 2
04 081377 CS FL LOCK 3/8 x 1-1/4 C5Z7 3
05 273566 BRACKET 1
06 081380 CS FL LOCK 5/16 x 3/4 C5ZY 4
07 50301377 HOSE, MP 10 x 56.0 IN. L90 1
08 50301375 HOSE, MP 10 x 60.0 IN. S90 1
09 273867 HOSE, MP 6 x 74.0 IN. 1
10 137542 90 BLKHD MJ10-MJ10 2
11 098534 90 BLKHD MJ06-MJ06 1
12 100541 CLAMP, HOSE 1.00 IN. TWIN 1
13 50302211 MP 4 x 29.0 IN. 1
14 50301382 HOSE, MP 4 x 67.0 IN. 1
15 272287 TEE RUN MJ04-MORB06-MJ04 2
16 072580 ST MJ10-MORB10 2
17 50301998 PLATE, CLAMP MOUNT 1
18 50300078 CS FLH M10-1.5 x 30 10.9 2
19 210-19533 HN FL CLOC 3/8 CZY 2
20 055021 CLAMP, VINYL 0.75 x 0.41 IN. 1
21 076589 CS FL LOCK 3/8" x 1" C5ZY 2
22 271341 CLAMP, VINYL 1.0 x 0.41 IN. DBL. 1
23 L45666 CLAMP, VINYL 1.0 x 0.41 IN. 1
HOSE CONNECTION:
#01 - Hydraulic valve (T) to hydraulic valve (T)
#02 - Hydraulic valve (P) to hydraulic valve (P)
#07 - Hydraulic valve (A3) to bulkhead fitting to loader arm
#08 - Hydraulic valve (B3) to bulkhead fitting to loader arm
#09 - Bulkhead fitting/lift arm aux. to hydraulic tank return
#13 - Hydraulic valve (P) [Tee] to pilot press. manifold (VP)
#14 - Hydraulic valve (T) to hydraulic tank return
Engine
Mounting Bracket
(to secure hoses 7 and 8
shown on facing page)
Mounting
bracket also
shown on
page 61.
18
23
17
22
21
19
20
21
To Next Page
