RT250 - CAB
SEAT
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
01 SEAT, SUSPENSION (complete) 1
275469 MECHANICAL (standard)
275515 AIR (option)
02 50280201 KIT, SEAT BELT 2" (standard) 1
420-36087 KIT, SEAT BELT 3" (option) 1
(See item #25 to increase the room for the operator.)
03 50280202 KIT, SEAT TOP (includes item #6) 1
04 50280205 KIT, SEAT CUSHIONS * 1
05 KIT, BOOT 1
50280212 (mechanical suspension seat)
50280210 (air suspension seat)
06 50280204 KIT, SEAT SWITCH (w/ harness) 1
07 50280209 KIT, SHOCK (uses only one shock) 1
08 50280211 KIT, BEARING SHAFT 1
09 50280206 KIT, BUMPERS 1
10 KIT, SLIDES 1
50280203 (mechanical suspension seat)
50280213 (air suspension seat)
11 50280207 KIT, COMPRESSOR ** 1
12 50280208 KIT, AIR SPRING ** 1
13 50280457 SWITCH/VALVE ** 1
14 50280458 KIT, KNOB SEAT HEIGHT *** 1
16 656093 CS M8-1.25x16 C8.8 ZY DIN931 4
17 656111 FW M8 ZY DIN125 12
18 651710 LN M8-1.25 C8 ZY DIN6925 8
19 656105 CSM8-1.25x25 C8.8 ZY DIN931 4
20 50300483 SPACER 4
21 068034 HLN INST 1/2 CZY 2
22 653044 HJN 1/2 C2ZY 2
23 081378 CSFL LOCK 1/2x1-1/2 C5ZY 2
24 651689 CS FL M8-1.25x20 C8.8 ZY DIN1662 4
25 50303434 KIT, LAP BAR EXTENSION 1
(Provides additional room between seat
and lap bar for operator.)
*Individual seat cushions are not sold separately; kit
includes both seat cushions.
** Air suspension seat only.
*** Mechanical suspension seat only.

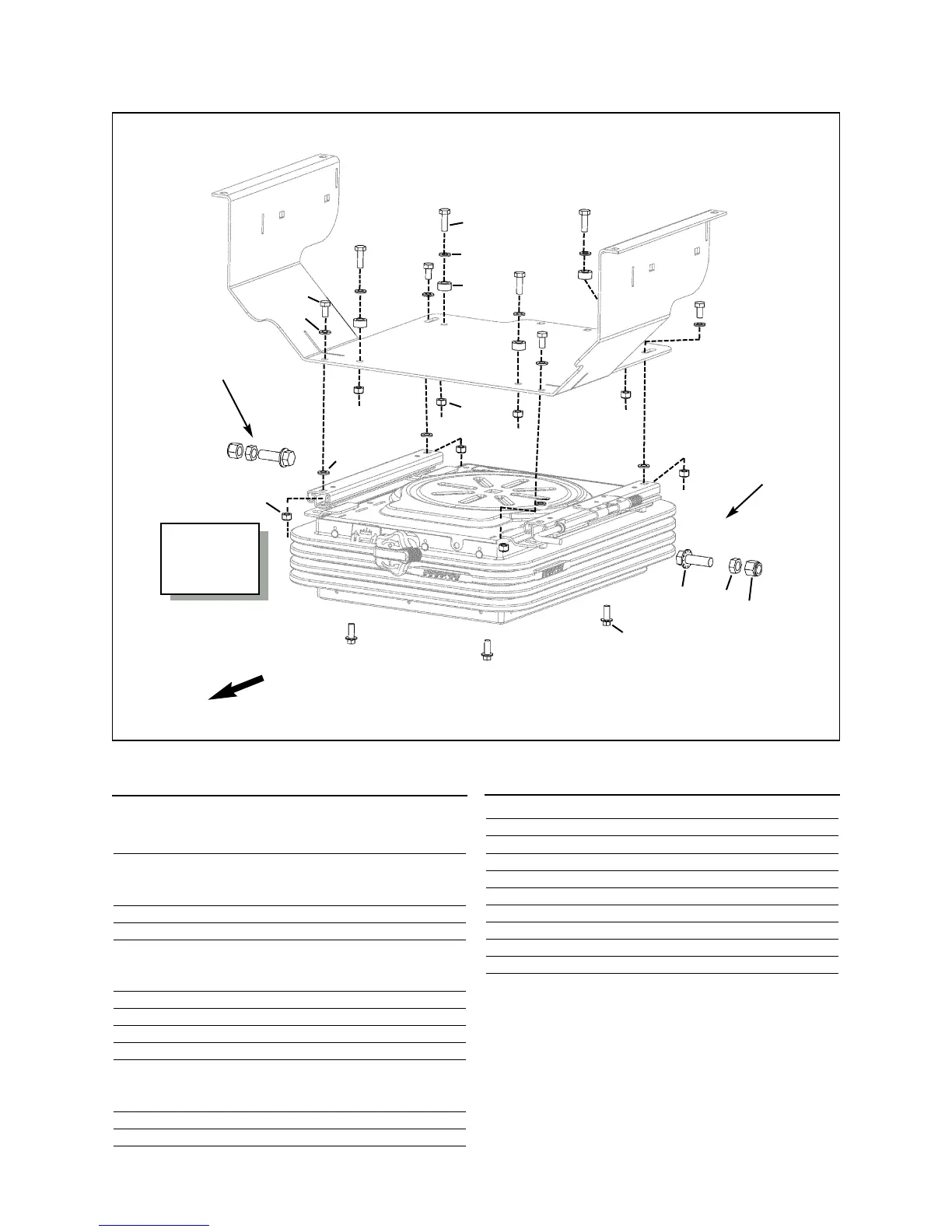

Seat
Mounting
Hardware
19
20
17
17
16
17
18
18
23
22
21
24
FRONT
Seat Belt
Anchor
Hardware
Seat Belt
Anchor
Hardware
Standard
Suspension Seat
(Shown)
To Next Page
