Printed in U.S.A. 43 913364/BP0314
RT250 - CHASSIS

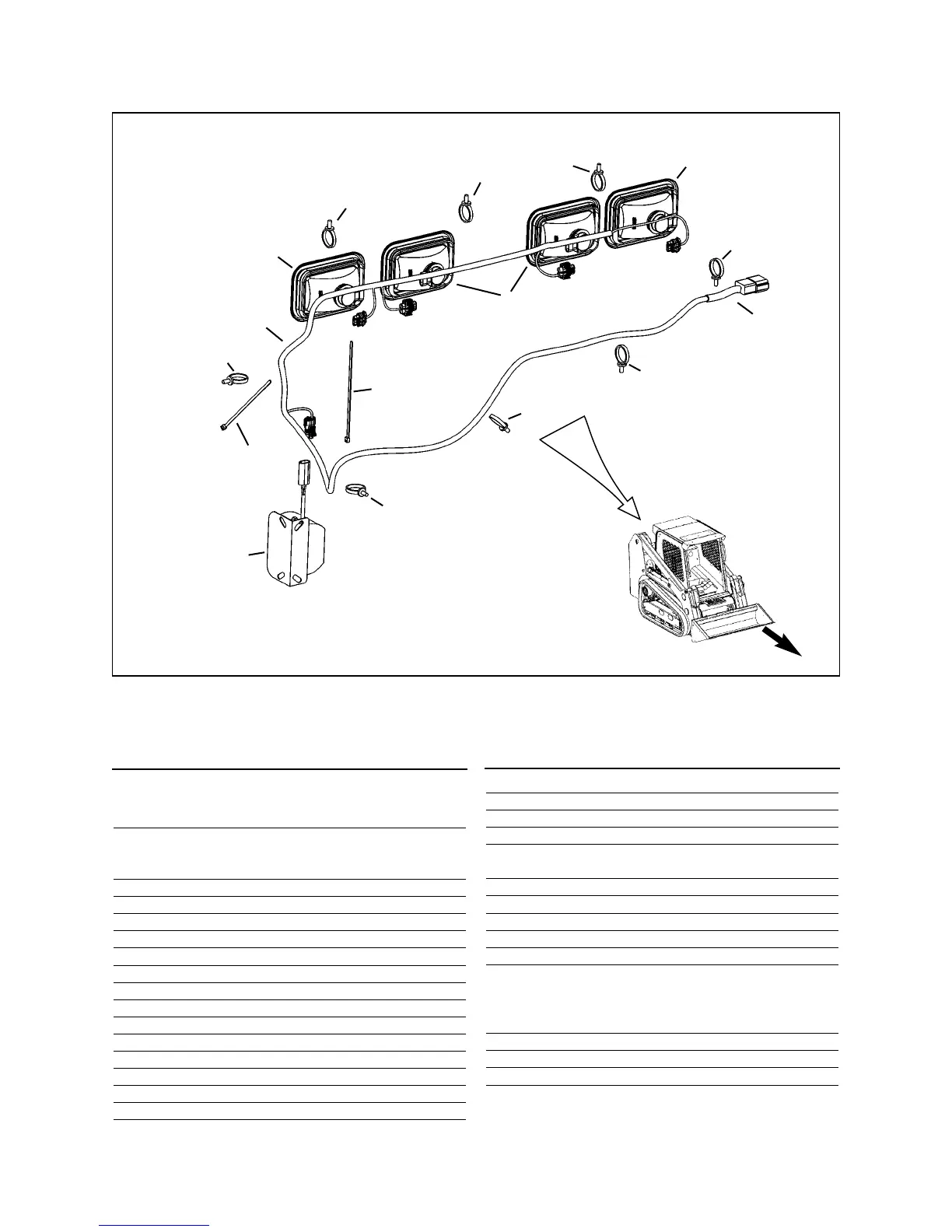

REAR DOOR
3
01 271718 LIGHTS, WORK (clear lens) 2
122488 BULB, 12V-38WATT (GE862) AR
(Work light includes bezel and bulb)
02 271541 LIGHTS, TAIL (red lens) 2
BULB, 12V-27WATT (GE3157) AR
(Tail light includes bezel and bulb)
03 50301240 WIRE HARNESS, REAR DOOR 1
04 273369 TIE / TREE MOUNT 8
05 50300983 DOOR WELDMENT, REAR 1
06 104416 STRIKER 1
07 650484 CS 5/16” x 1/2” C5ZY 2
08 654004 FW 5/16” 2
09 135727 BACK-UP ALARM 1
10 272750 HANDLE, REAR DOOR 1
11 272972 CLIP 1
13 137959 CB 1/4” x 1-1/4” CBC 4
14 272822 STRIKER 1
15 271024 LATCH, REAR DOOR 1
16 654002 FW 1/4” AWZY 4
17 071700 LN 1/4” CBZY 4
18 50301468 BULBSEAL, 1/4" x 25.5" 2
19 50301461 GRILLE, REAR DOOR 1
20 210-19533 HN FL CLOC 3/8" 4
21 055648 TIE / CABLE 0.19" x 7.5" BLACK 2
22 076589 CS FL LOCK 3/8” x 1” C5ZY 4
23 273217 ROD, DOOR STOP 1
273228 3/8" RETAINING RING (not shown) 1
24 071706 LN 1/2” CBZY 2
25 654009 FW 1/2” C5ZY 4
26 274717 FW 1-1/8" PLASTIC 2
27 650585 HN 1/2” C2ZY 2
28 650834 CB 1/2” x 1-1/2” CBC 2
29 275174 SHIM, 0.1345” AR
275175 SHIM, 0.1046” AR
275176 SHIM, 0.0598” AR
275177 SHIM, 0.0359” AR
30 081374 HN FL SLOC 1/2” CZY 2
31 275135 BRACKET, REAR DOOR (hinge) 1
32 50302464 BULBSEAL, 1/4" x 28.0" 2
33 50303838 SLEEVE, PLASTIC (protects handle) 1
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
4
4
4
4
4
4
4
4
21
21
9
1
2
2
3
