Printed in U.S.A. 53 913364/BP0314
RT250 - ELECTRICAL

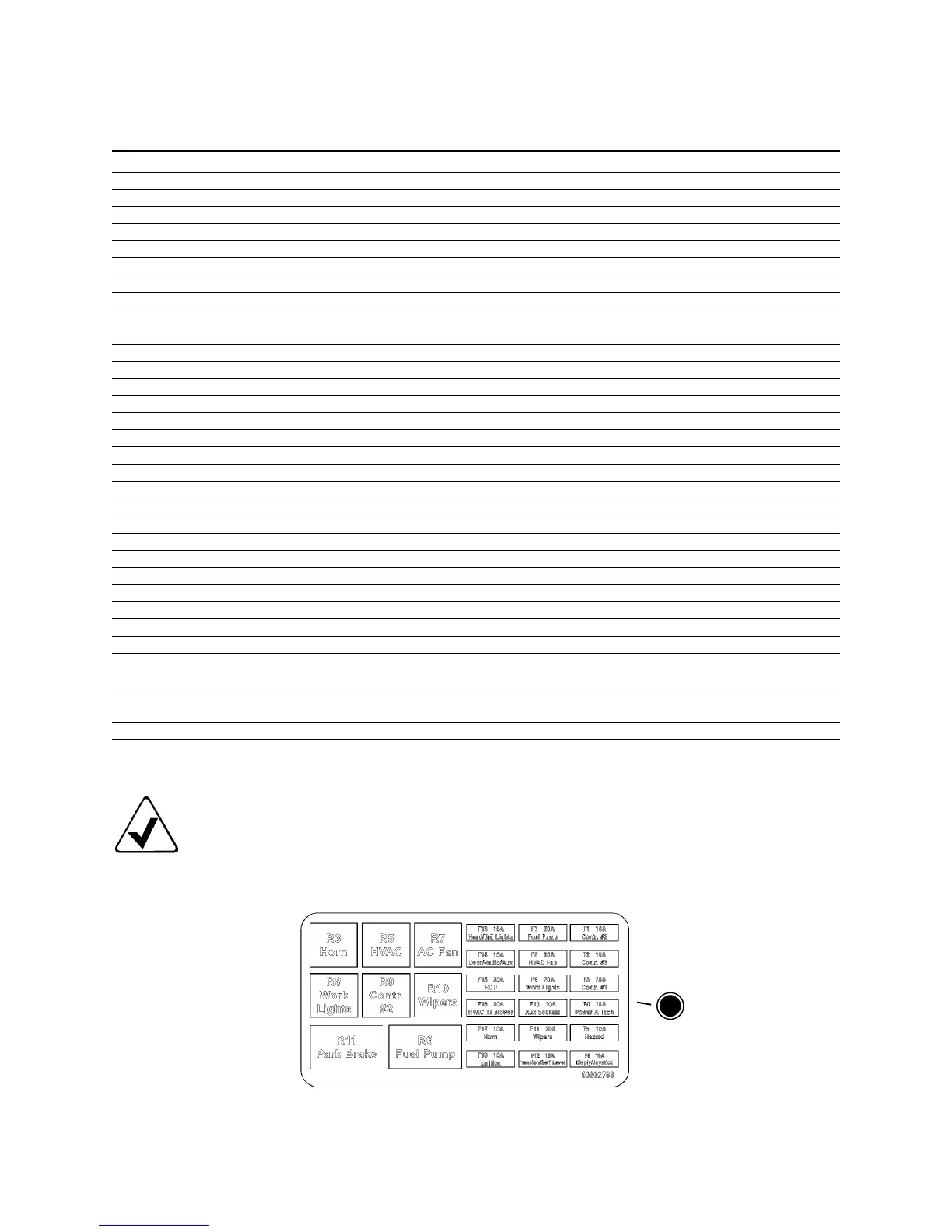

MAIN FUSE BOX / FUSES / RELAYS
Item Fuse
No. Part No. Description Relay Function
01 184631 MINI FUSE (10 AMP) F1 CONTROLLER 2 (MAESTRO 2)
02 184631 MINI FUSE (10 AMP) F2 CONTROLLER 3 (MARLIN I/O)
03 104769 MINI FUSE (20 AMP) F3 CONTROLLER 1 (MAESTRO 1)
04 184631 MINI FUSE (10 AMP) F4 PARK BRAKE RELAY; POWER-A-TACH™
05 184631 MINI FUSE (10 AMP) F5 FLASHER CONTROLLER; HAZARD SWITCH
06 184631 MINI FUSE (10 AMP) F6 DISPLAY; DOOR SWITCH; SEAT; JOYSTICKS
07 184627 MINI FUSE (30 AMP) F7 FUEL PUMP
08 104769 MINI FUSE (20 AMP) F8 CONDENSER FAN
09 104769 MINI FUSE (20 AMP) F9 WORK LIGHTS
10 184631 MINI FUSE (10 AMP) F10 AUXILIARY POWER OUTLETS
11 104769 MINI FUSE (20 AMP) F11 WIPERS
12 103099 MINI FUSE (15 AMP) F12 TRACK TENSION; SELF-LEVEL
13 103099 MINI FUSE (15 AMP) F13 HEAD LIGHTS; TAIL LIGHTS
14 184631 MINI FUSE (10 AMP) F14 REAR DOOR; RADIO; AUXILIARY
15 184627 MINI FUSE (30 AMP) F15 ECU
16 184627 MINI FUSE (30 AMP) F16 HVAC BLOWER (HIGH SPEED)
17 184631 MINI FUSE (10 AMP) F17 HORN
18 184631 MINI FUSE (10 AMP_ F18 IGNITION
19 50220311 RELAY, ISO 280 20A/15A R3 HORN
20 50220311 RELAY, ISO 280 20A/15A R5 HVAC BLOWER
21 50220311 RELAY, ISO 280 20A/15A R7 AC CONDENSER FAN
22 50220311 RELAY, ISO 280 20A/15A R8 WORK LIGHTS
23 50220311 RELAY, ISO 280 20A/15A R9 CONTROLLER 2
24 50220311 RELAY, ISO 280 20A/15A R10 WIPERS
25 50288226 RELAY, ISO 280 HIGH CUR. R11 PARK BRAKE
26 50288226 RELAY, ISO 280 HIGH CUR. R6 FUEL PUMP
27 242146 RELAY, ISO SPST R1 MAIN POWER
28 242381 MAXI FUSE (80 AMP) MAXI 1 MAIN POWER
29 275380 RELAY, DPDT (30 AMP) R13 POWER-A-TACH™ (located on engine-side of firewall)
30 L70247 ATO/ATC FUSE (30 AMP) -- POWER-A-TACH™ IN-LINE / TROMBETTA RELAY
(located in Power-A-TACH™ Wire Harness 275687)
31 50220071 MINI FUSE (3 AMP) -- RADIO / IN-LINE
(located in ROPS Wire Harness 275207)
32 50302793 DECAL, FUSE BLOCK 1
33 50288219 COVER, FUSE BOX (included with fuse box/chassis wire harness) 1
NOTE: The "FUSE/RELAY" column above identifies the fuse/relay on the
electrical schematic—located in the Operator’s Manual for this machine.
32
