Printed in U.S.A. 77 913364/BP0314
RT250 - TRACKS
TRACK ASSEMBLY
01 50302533 RUBBER TRACK 450 x 58 x 86 2
02 271556 PLATE, SERVICE COVER 2
03 072916 CS FL LOCK 1/4 x 3/4 C5ZY 8
04 272643 TENSION CYLINDER STOP (right) 1
05 271005 FRONT IDLER ASSEMBLY 2
06 651614 CS 3/8” x 3-1/2” C8ZY 2
07 271414 CYLINDER, TRACK TENSION 2
08 272913 STOP, HYDRAULIC CYLINDER 2
09 50300027 CS 3/8” x 7/8” C5Z 2
10 270322 SPROCKET, DRIVE 2
11 274423 MOTOR, DRIVE 1273cc W/FLANGE 2
12 230-32195 ST MJ04 MORB04 4
13 067847 HLN INST 3/8” CZY 2
14 272641 TENSION CYLINDER STOP (left) 1
15 271020 WHEEL, BOGIE - DUAL FLANGE 8
16 274602 CS M20-2.5 x 45 C10.9 PSP DIN931 20
17 275574 IDLER, DUAL FLANGE (rear) 2
18 274389 HOSE, MP 4 x 31.0 IN. 1
19 274839 HOSE, MP 4 x 31.0 IN. 1
20 274386 HOSE, MP 4 x 53.0 IN. 1
21 274386 HOSE, MP 4 x 53.0 IN. 1
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
NOTE: The next four pages contain detailed
component information for the bogie wheels,
front and rear idlers, and the track drive motors
and sprockets.
18
19
18
19
20
21

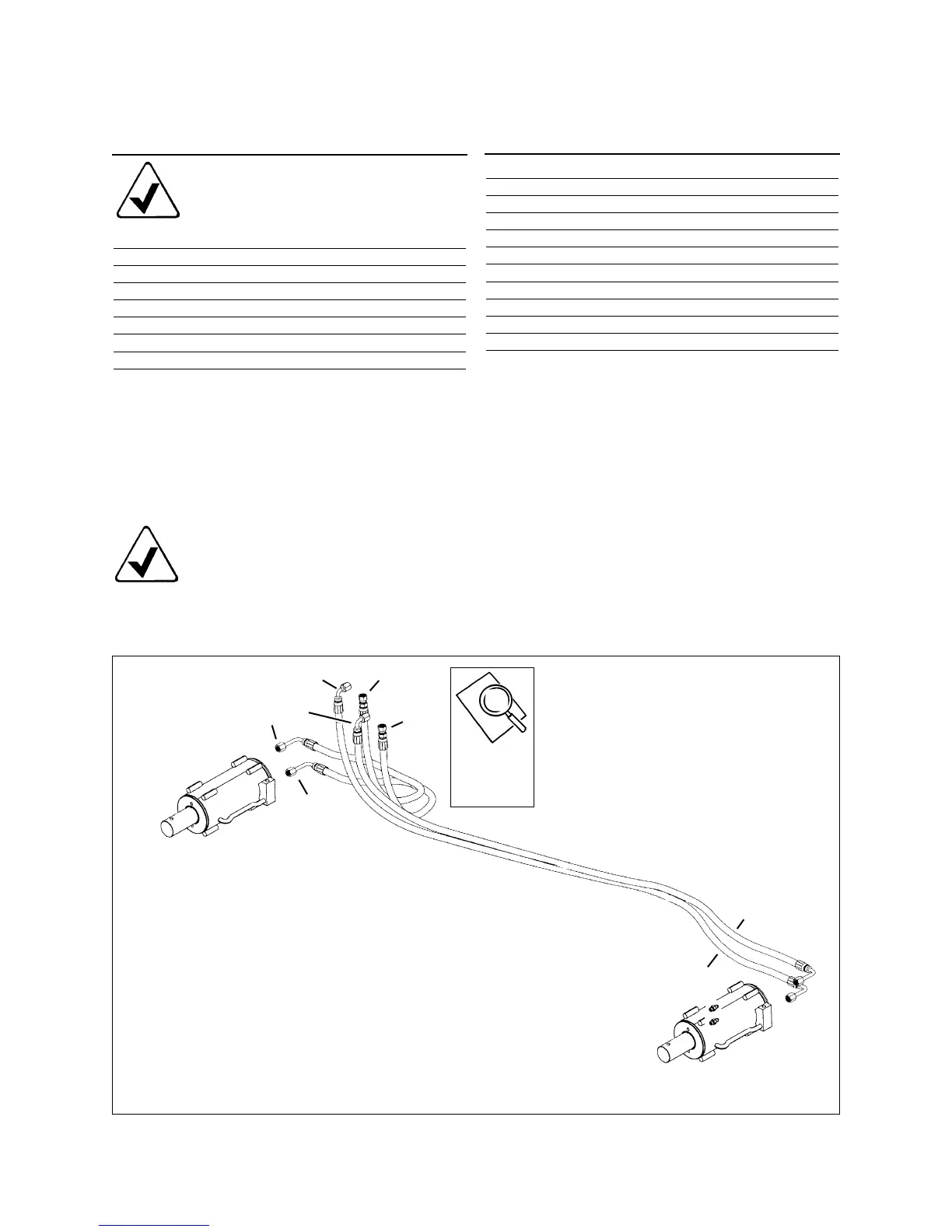

Track Tension Cylinder
(Left-Side)
Track Tension Cylinder
(Right-Side)
21
20
Pilot Pressure
Circuit is on
page 112.
NOTE: Quantities shown are for both sides of
the machine.
To Next Page
