Printed in U.S.A. 89 913364/BP0314

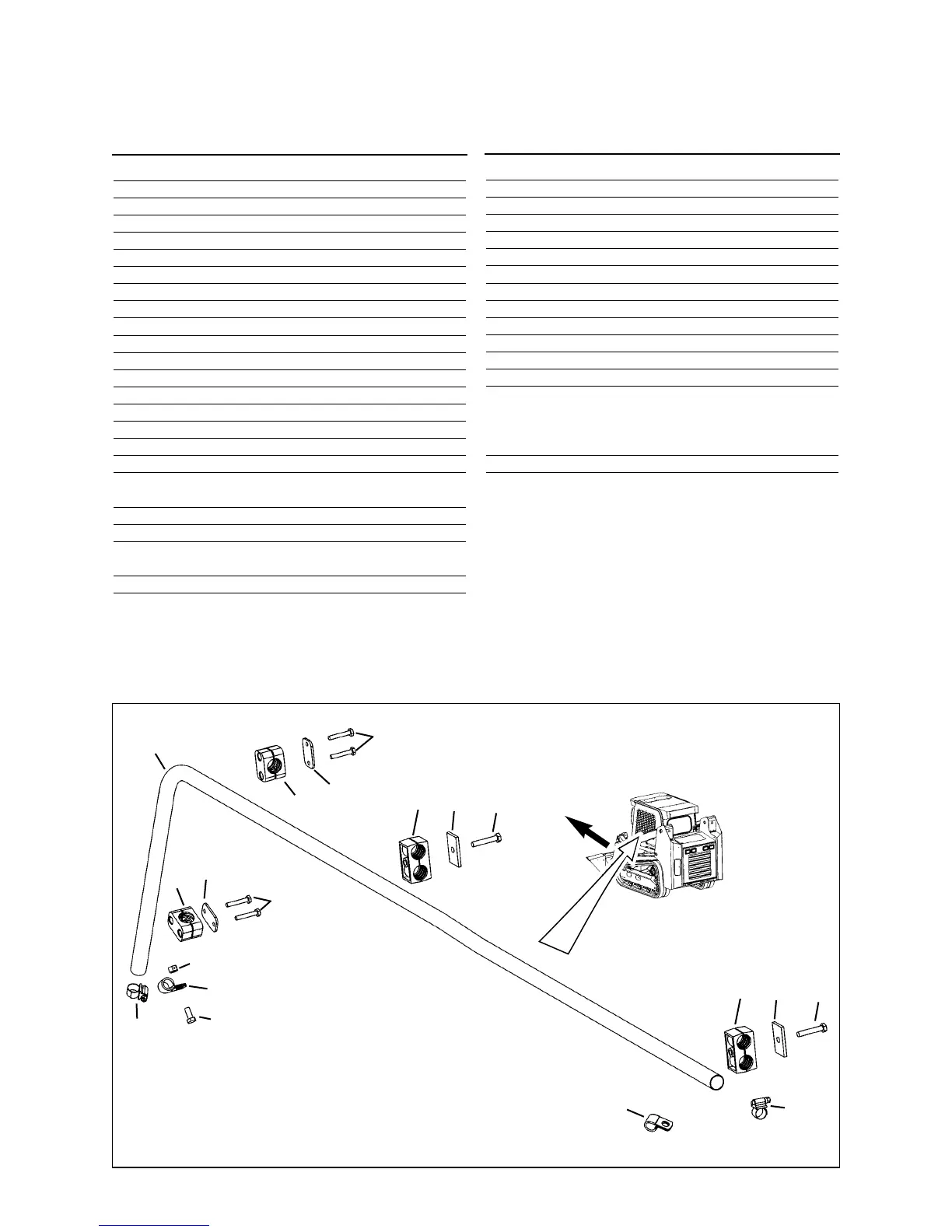

RT250 - LOADER ARM
ATTACHMENT BRACKET - POWER ALL-TACH
®
(OPTION)
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.
01 081380 CS FL LOCK 5/16 x 3/4 C5ZY 6
02 275523 COVER 1
03 274521 WELDMENT, QUICK ATTACH ** 1
04 210-31017 LN FL CTR 5/16" CFZY 2
05 50302097 SHOULDER BOLT 3/8"x1-3/4" * 2
06 275798 WELDMENT, EXT. LINK (right) 1
07 570002 FITTING, GREASE 1/8 PTF 2
08 068034 HLN INST 1/2 CZY 2
09 650585 CS 1/2 x 2 C5ZY 2
10 50300054 ACTUATOR, MOTOR LINEAR 1
11 275797 WELDMENT, EXT. LINK (left) 1
12 137169 LATCH LINK * 1
13 50350090 PIN, CLEVIS 7/16"x1-5/8" ZY * 1
14 137168 PIN LINK * 1
15 137386 PIN * 1
16 137170 LATCH PIN * 1
17 655006 COTTER PIN 1/8" x 1" Z * 1
18 275629 WIRE HARNESS, QUICKATTACH 1
19 071401 HLN INST 1/4 CZY 2
651094 CB 1/4x1-1/4 C5ZY (not shown) 2
20 275380 RELAY, DPDT TROMBETTA 1
21 134851 LN FL SPIRALOCK 5/16 FZY 4
22 275687 WIRE HARNESS, QA POWER 1
656047 HN M6-1 CA ZY DIN934 (not shown) 1
23 273369 TIE/TREE MOUNT 2
25 139107 DECAL, LATCHING (left) 1
26 50354117 DECAL, ATTACHMENT BRACKET 1
27 139109 DECAL, LATCHING (right) 1
28 276045 TUBE, POWER QUICK ATTACH 1
29 087852 CLAMP, HOSE #06 2
30 128007 CLAMP, HOSE 0.62" x 0.41" 2
31 650486 CS 5/16 x 1-1/2 C5ZY 1
32 071701 LN 5/16 CBZY 1
33 102524 CLAMP, TUBE 1.00" 2
34 102525 PLATE, TOP SINGLE SIZE 3 2
35 650588 CS 1/4 x 1-1/2 C5ZY 4
36 190950 CLAMP, TUBE 1.0 IN. TWIN 2
37 L69833 PLATE, TOP SIZE 2 TWIN 2
38 650692 CS 5/16 x 1-3/4 C5ZY 2
39 270064 QUICK ATTACH PIN ASSEMBLY 2
(includes items 4,5, and 12-17)
-- ITEMS NOT SHOWN --
- - 055648 TIE, CABLE 0.19 x 7.50 AR
- - 074091 TIE, CABLE 0.19 x 14.50 AR
* Quantity is for one side. Item 39 includes these parts, be
sure when ordering parts to not duplicate parts; order the
individual parts needed, or the assembly (item #39). Items 4
and 5 are included with item #39.
** Refer to the previous page for pins, hardware, and other
items not shown here.
28
29
33
34
35
29
30
30
32
31
Wire harness is routed through the
tube—attached to the left-side lift arm.
33
34
35
36
37
38
36
37
38
To Next Page
