RT250 - LOADER ARM

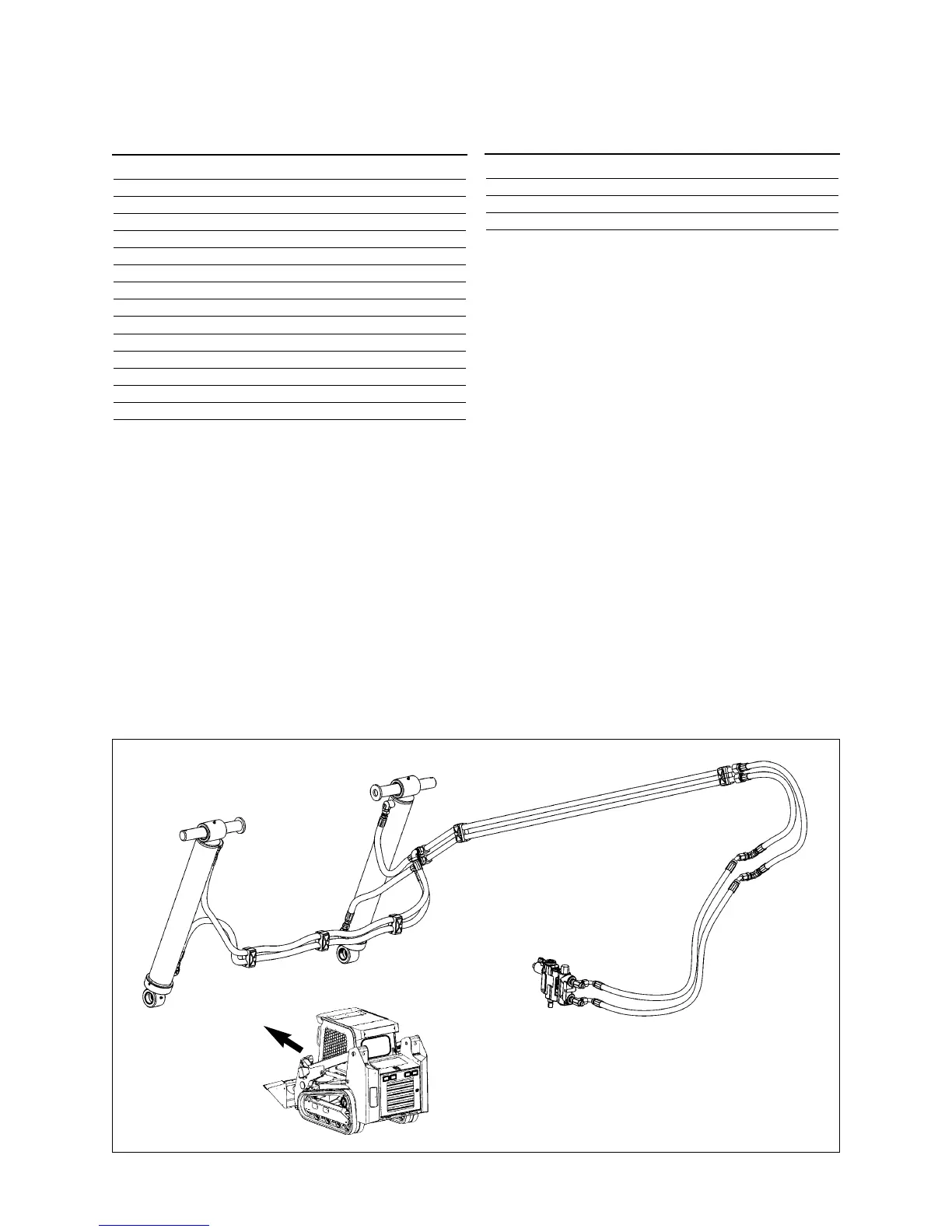

TILT CIRCUIT HYDRAULICS
01 273459 TUBE, TILT - OUTER 2
02 50301887 HOSE, MP 8 x 33.0 IN. 1
03 50301372 HOSE, MP 8 x 28.0 IN. 1
04 079097 CLAMP, TUBE 0.75 (twin) 4
05 L69833 PLATE, TOP SIZE 2 (twin) 7
06 650692 CS 5/16 x 1-3/4" C5ZY 7
07 50300742 PIN, TILT CYLINDER (base end) 2
08 650629 CS 3/8 x 3-1/4 C8ZY 2
09 067847 HLN INST 3/8 CZY 2
10 50300621 CYLINDER, TILT 2
11 054626 ST MJ08-MORB08 4
12 273863 HOSE, MP 8 x 67.5 IN. 1
13 273863 HOSE, MP8 X 67.5 IN. 1
14 271282 CLAMP, HOSE 19mm (twin) 3
15 273689 HOSE, MP 8 x 19 IN. 1
16 273689 HOSE, MP 8 x 19 IN. 1
17 230-21555 90 BULKHD MJ08-MJ08 2
18 50301634 HOSE, MP 8 x 41.0 IN. 1
19 50301634 HOSE, MP 8 x 41.0 IN. 1
20 121387 TEE RUN MJ08-MAORB10-MJ08 2
21 VALVE, SELF-LEVEL 1
135367 (standard) - (not shown)
271958 (switchable) - (shown) (Optional)
HOSE CONNECTION:
#02 connects to bulkhead and then to self-level valve (D)
#03 connects to bulkhead and then to self-level valve (C)
#12 (see illustration on facing page)
#13 (see illustration on facing page)
#15 (see illustration on facing page)
#16 (see illustration on facing page)
#18 connects to bulkhead and then to self-level valve (C)
#19 connects to bulkhead and then to self-level valve (D)
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.

Gehl RT250 Specifications

General

Rated Operating Capacity	2, 500 lbs
Engine Power	74 hp
Tipping Load	5, 000 lbs
Auxiliary Hydraulics - High Flow	35 gpm
Engine Net Power	74 hp
Engine Gross Power	74 hp
Overall Length with Bucket	146.2 inches
Width	72 inches
Horsepower	74 hp
Length with Bucket	146.2 inches
