Gehl RT250 - Page 97

Printed in U.S.A. 95 913364/BP0314
RT250 - LOADER ARM
LIFT CIRCUIT HYDRAULICS
01 50301386 HOSE, MP 8 x 75.0 IN. 1
02 50301384 HOSE, MP 8 x 55.0 IN. 1
03 50301386 HOSE, MP 8 x 75.0 IN. 1
04 50301384 HOSE, MP 8 x 55.0 IN. 1
05 650629 CS 3/8 x 3-1/4" C5ZY 2
06 067847 HLN INST 3/8 CZY 4
07 50300842 PIN 2
08 50300622 CYLINDER, LIFT 2
09 650629 CS 3/8 x 3-1/4 IN. C5ZY 2
10 50300740 PIN 2
11 230-30569 ST MJ10-MORB08 4
12 50300067 TUBE, LIFT CYLINDER (left) 1
13 273844 TUBE, LIFT CYLINDER 2
14 273451 CLAMP, SADDLE 0.55 x 3.43 IN. 6
15 088937 CLAMP, HOSE #64 6
16 50300085 TUBE, LIFT CYLINDER (right) 1
Item
No. Part No. Description Qty.
Item
No. Part No. Description Qty.

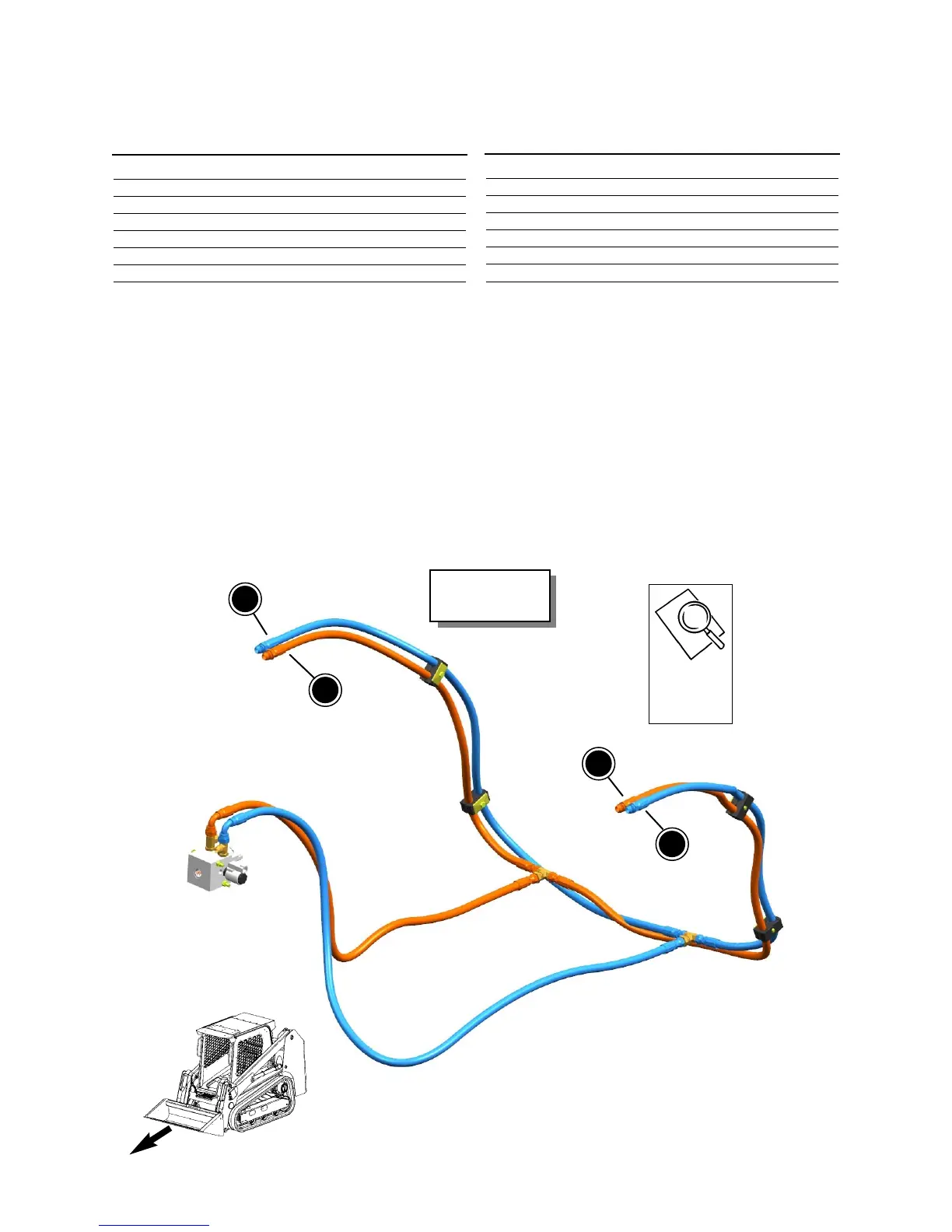

Float/Lift Circuit
Hose Routing
Lift Cylinder
(Right Side)
Lift Cylinder
(Left Side)
1
2
3
4
Float/Lift
Circuit - Ride
Control is on
page 122.
