Generac Power Systems Tower Light HYDRO POWER CUBE User Manual

HYDRO POWER CUBE 9mt 4x150W LED
57
TL113-01-10-00
23-09-2013

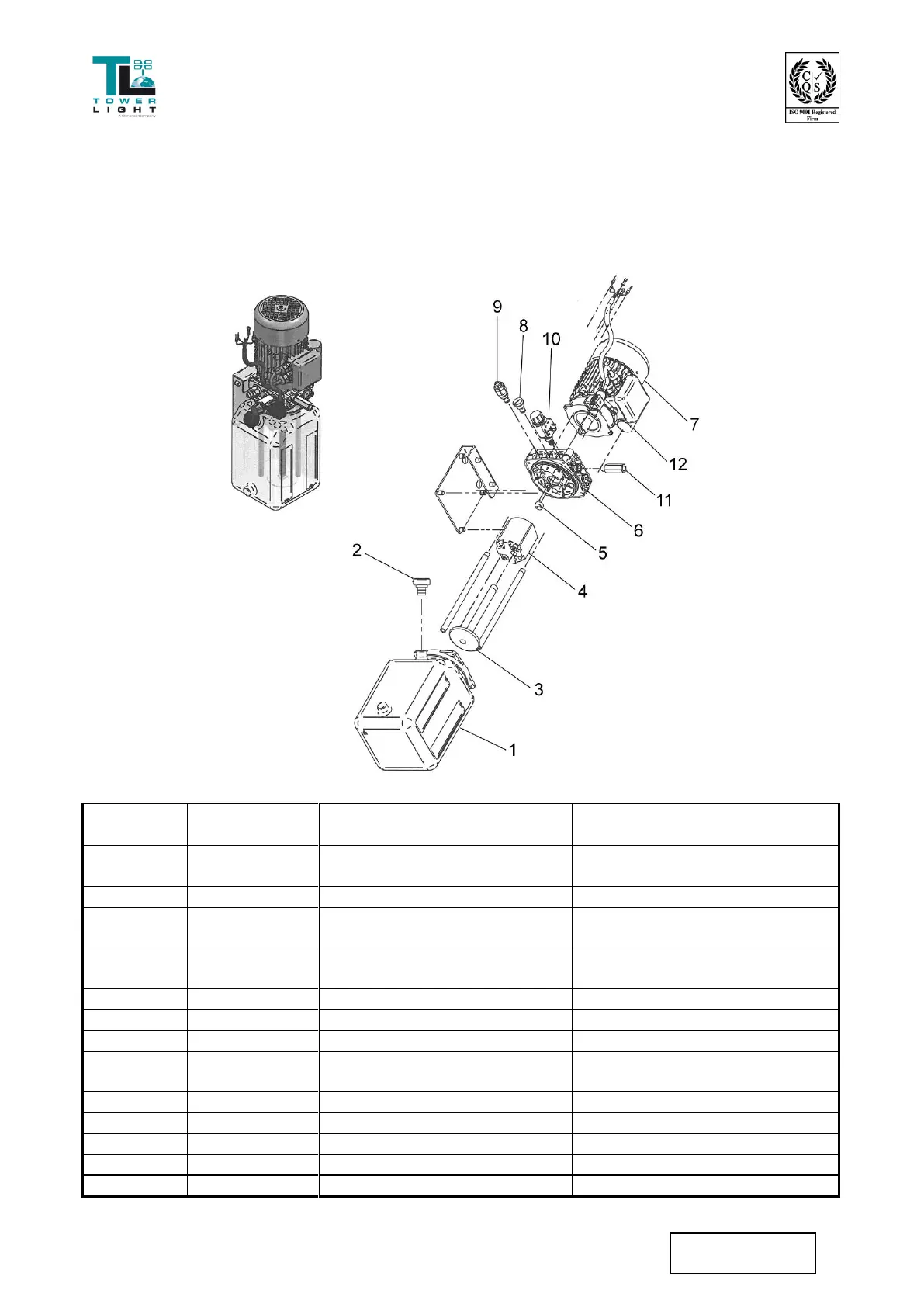

18.2.2 VERSION HYDROVEN (Elektromotor Melegary mit viereckigen Tank) – HYDROVEN
VERSION (Electric motor Melegary with square tank)
Position
Items
Code
Code
Beschreibung
Denomination
1-2-3-4-5-6-7-
8-9-10-11-12
10193-A
Komplettes hydraulisches
Steuergerät
Hydraulic gear box assembled
1
56220501B02E
Tank für das hydraulische Öl
Hydraulic oil tank
2
39G57B000C0C
Verschluss des Tanks für das
hydraulische Öl
Hydraulic oil tank cap
3
56233D14H0CA
Gruppe Saug-oder
Rückgabebelehrung
Group suction and return
4
56227A150050
Zahnradpumpe
Gear pump
5
1201PG00330T
Vordere Gelenk
Front joint
6
5620121031BR
Ventilkörper
Valve body
7
42206410D31O
Elektrischer Motor 0,55kw,
komplett mit Kondensator
0,55kw electrical motor with
capacitor
8
562571L3005E
Rückschlagventil
Non return valve
9
56203P31900V
Hochdruckventil
Valve of maximum pressure
10
562611L40A5D
Magnetventil
Solenoid valve
11
3392504A120F
Drosselrohr
Throttle pipe
12
14615
Kondensator 20μF ±5%b 450V
20μF ±5%b 450V capacitor
