GCL-GCX
1) Connect all LOW VOLTAGE control circuit wires to this
side
of unit using 1/2” conduit or flexible convoluted
tubing.
• Keep low voltage and line voltage wires separate.
• Route all low voltage control wiring as shown. This
includes
all control circuit wires such as wall controls,
timers and single
button
input
devices
as
well
as
radio control and safety
circuit wiring.
• Plug all unused conduit holes.

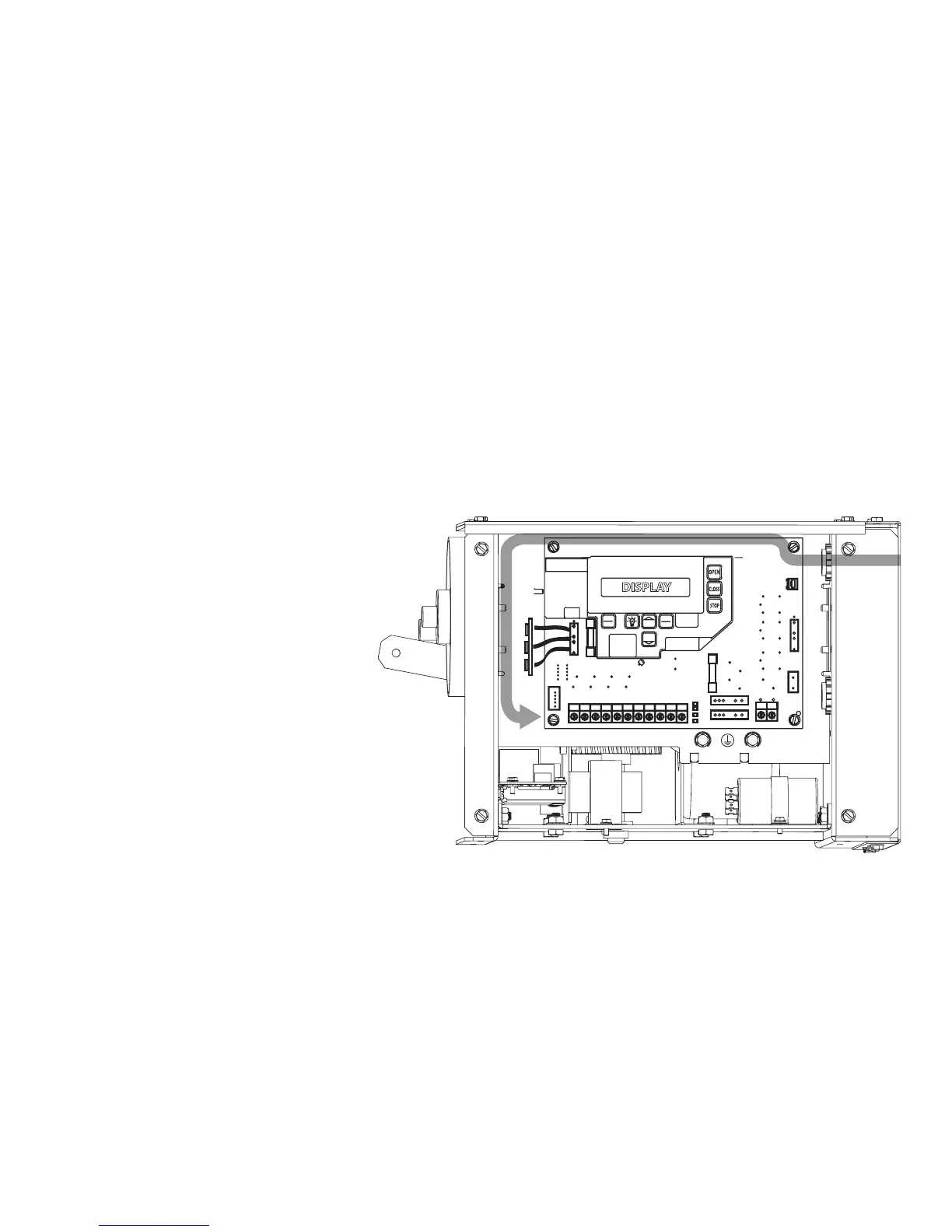

Low Voltage Control Wiring
Fig. 2
S
S B
S Y
SS B S B
STB
ENAB
+ 24
VAC
EXT
NTLK
HO ST
NTLK
CAL
RUN
SET
CLR
SCROLL
SCROLL
Figure 2
5.2
www.geniecompany.com 08-12
Counter Door Operator
