Setting Mid-Stop Limit
MID-STOP SET

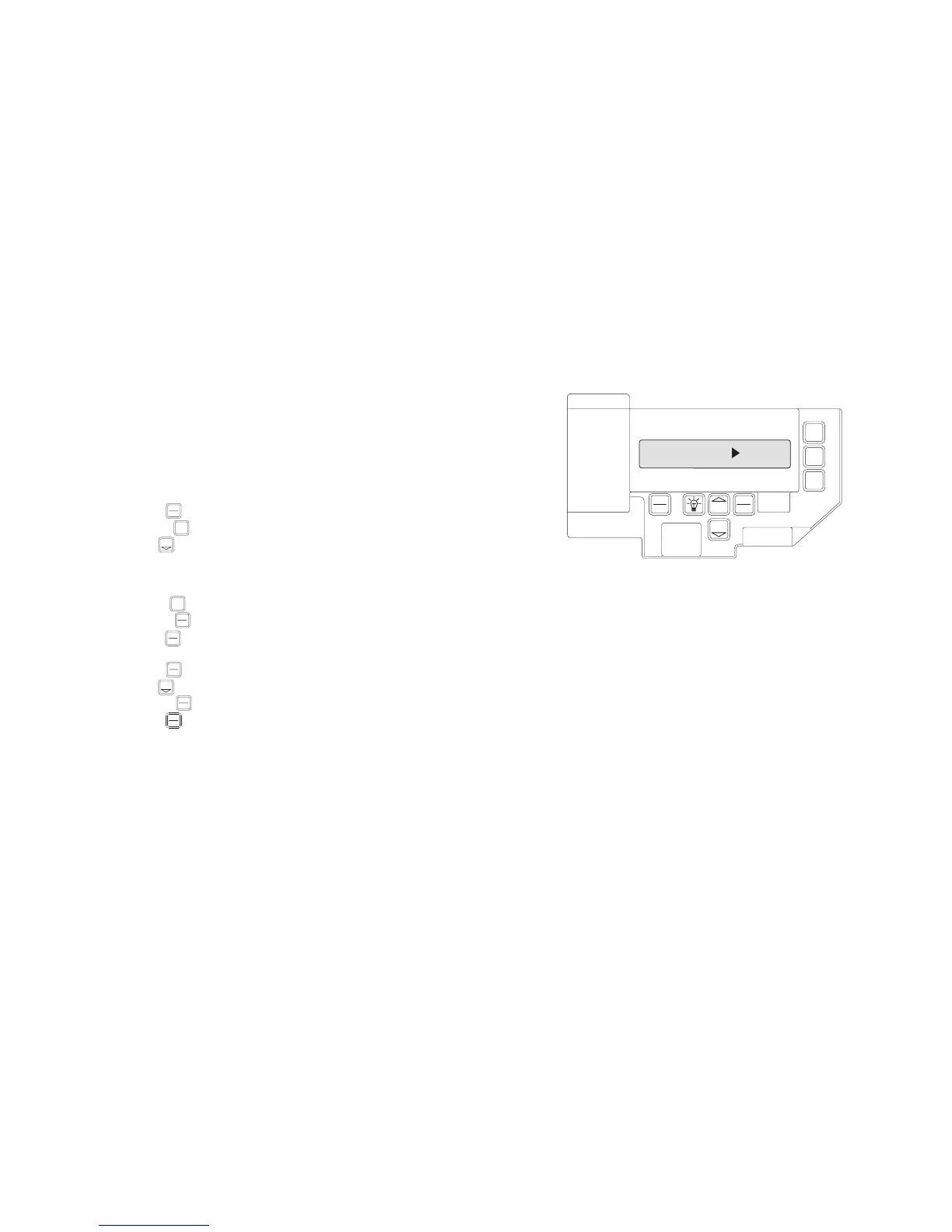

Figure 14
CAL
RUN
SCROL
SET
CLEAR
RUN
CLOSE
CAL
RUN
CAL
RUN
AL
SET
CLEAR
SCROLL
The operator includes a programmable Mid-Stop. This feature allows
the operator to stop at a user selectable point when opening. It is used
when operating very tall doors that only open to their full height
occasionally. The Mid-Stop does not effect the operator when closing. To
operate door to full open position from mid-stop, press open button again.
NOTE: Setting of the MID-STOP should only be performed AFTER Travel
Limit and Max Run Timer settings have been made.
1) Press CAL/RUN to enter calibration mode.
2) Press the CLOSE to close the door to the down limit.
3) Press SCROLL until display reads “MID-STOP
>
CLR” Figure 14
NOTE: If the display reads MID-STOP
>
SET at this point, first clear
MID-STOP as described below then repeat steps 1-3 and continue.
4) Press the OPEN to open the door to desired mid-stop height.
5) Press SET/CLEAR until the display reads ”
MID-STOP
>
SET”
6) Press CAL/RUN to return to run mode.
To CLEAR the Limit
1) Press CAL/RUN to enter calibration mode.
3) Press SCROLL until display reads “MID-STOP
>
SET”
5) Press SET/CLEAR until the display reads ”
MID-STOP
>
CLR”
8) Press CAL/RUN to return to run mode.
