Genie GCL-GCX User Manual

GCL-GCX
OPEN
CLOSE
STOP
CAL
RUN
SCROLL
SCROLL
SET
CLEAR
GDO TYPE J-SHAFT

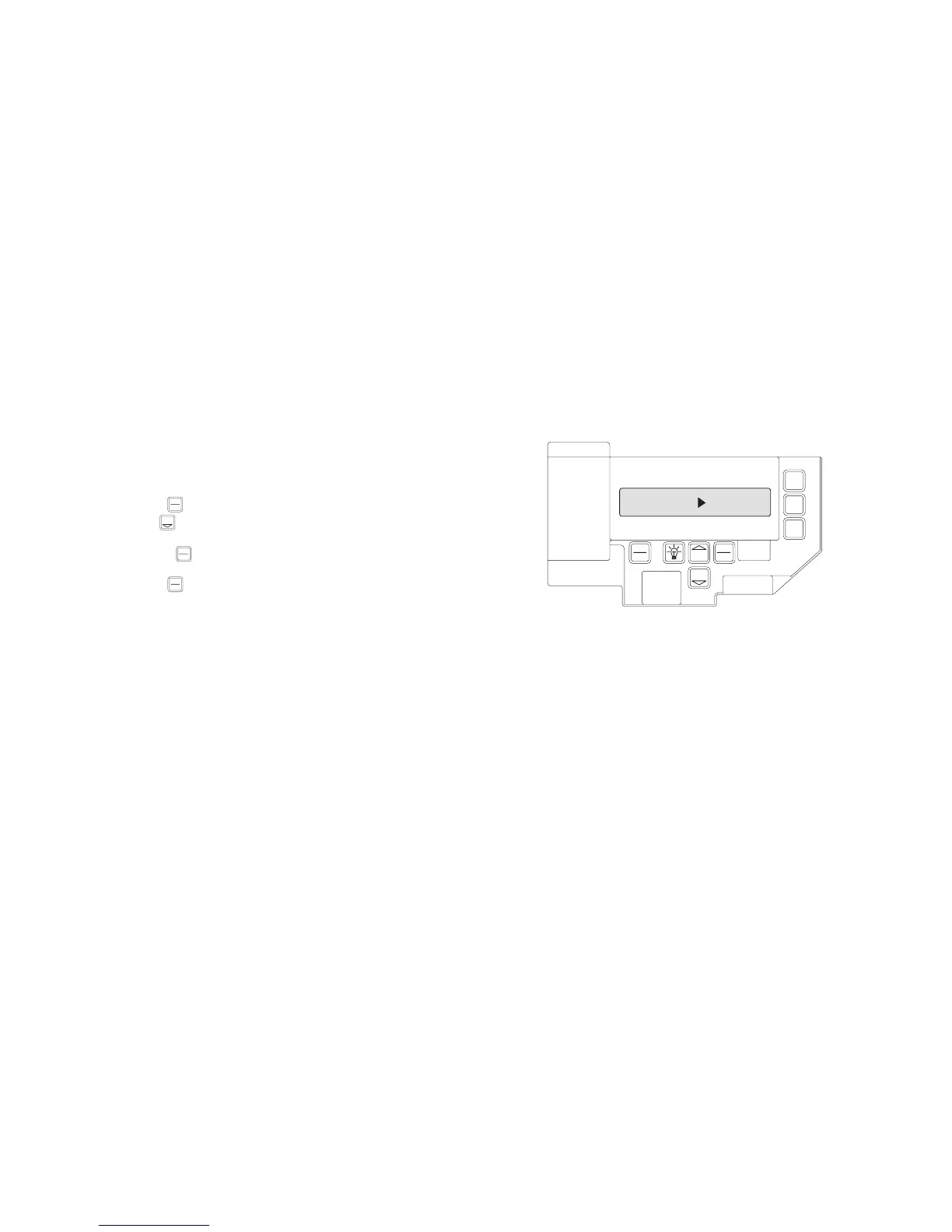

Figure 3
Operator Type Fig. 3
CAL
RUN
CAL
RUN
SCROLL
S
SET
CLEAR
Operator circuit boards are available for use in jackshaft or trolley configurations. The same
control board is used for either configuration, however the control board must be set
for the appropriate GDO configuration. A board set for trolley mode will not work in a
jackshaft operator and vice-versa.
NOTE
: The GDO type is factory set. The installer should not have to set this
feature. However, if the GDO type is inadvertently changed, or if a board needs
to be replaced in the field, follow these instructions to set GDO type.
1) Press CAL/RUN to enter calibration mode.
2) Press SCROLL until display reads “GDO TYPE
>
.”
This will display the current GDO type.
3) Press SET/CLEAR until display indicates correct GDO type
.)TFAHS-J (
4) Press CAL/RUN to return to run mode.
7.2
www.geniecompany.com 08-12
Counter Door Operator
