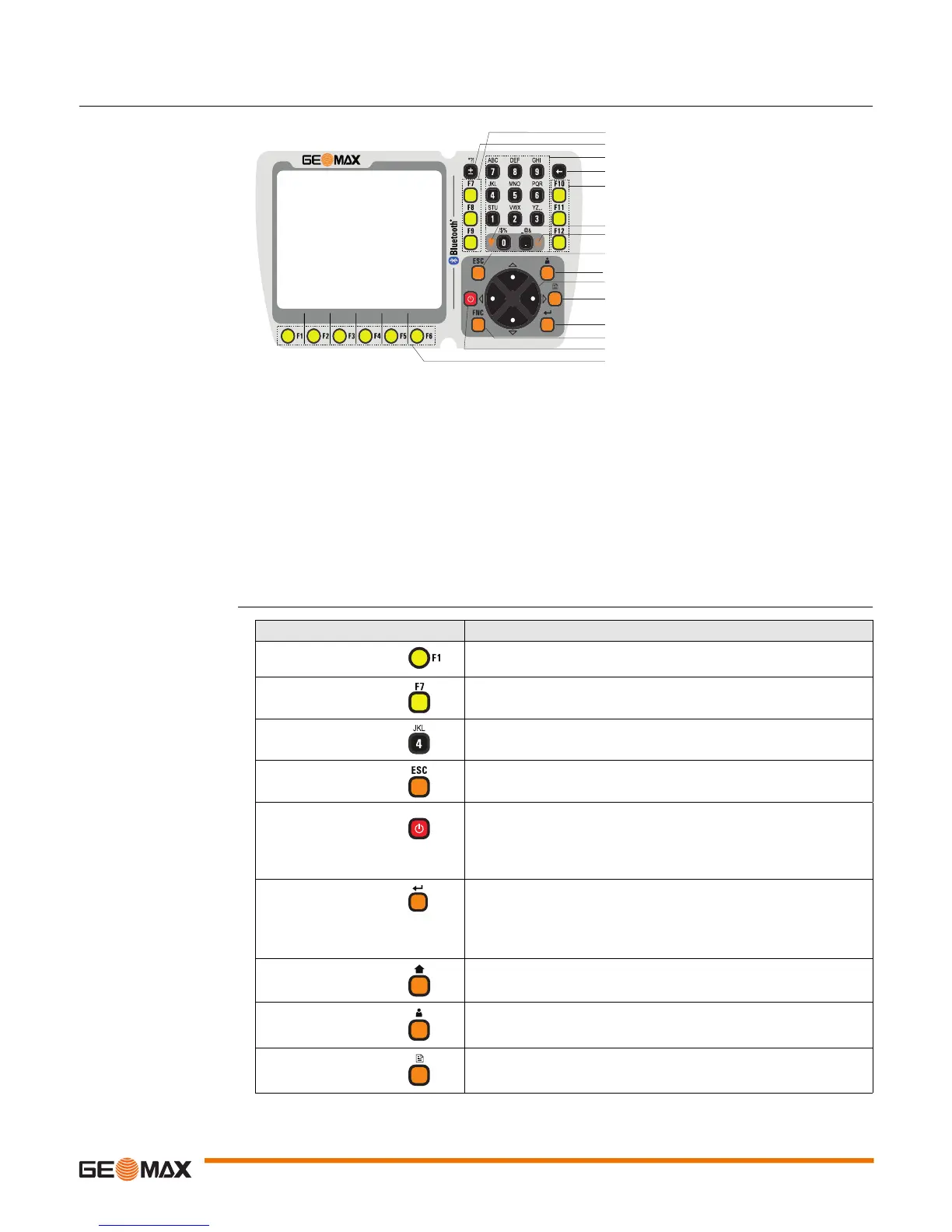

3.1 Keyboard
Keyboard
* User key is not used by GeoMax Toolkit.
Keys
a) Function keys F7 - F9
b) ± key
c) Alphanumeric keys
d) Backspace
e) Function keys F10 - F12
f) Keyboard illumination/
Access: <FNC> + <0>
g) Level key/
Access: <FNC> + <.>
h) ESC
i) User key*
j) Arrow keys
k) Page key
l) FNC
m) Shift key
n) ON/OFF, ENTER
o) Function keys F1 - F6
d
b
a
e
c
g
h
i
f
j
k
l
m
n
o
009840_001
Key Function
Function keys F1-F6 Correspond to six softkeys that appear on the bottom of the screen
when the screen is activated.
Function keys F7-F12 User definable keys to execute chosen commands or access chosen
screens.
Alphanumeric keys Alphanumeric keypad for entry of text and numerical values.
ESC Quits a screen or edit mode without saving changes. Returns to next
higher level.
ON/OFF key ON/OFF: If the instrument is already off: Turns on the instrument
when held for 2 s.
If the instrument is already on: Turns to Power Options menu when
held for 2 s.
Enter key Enter: Selects the highlighted line and leads to the next logical
menu/dialog.
Starts the edit mode for editable fields.
Opens a selectable list.
Shift key Switch the keypad between numeric mode and alphanumeric mode.
User key User key is not used by GeoMax Toolkit.
Page key Displays the next screen when several screens are available.
To Next Page
