Operation Zoom90 | 29
4.8 Working with the Memory Device
• Keep the card dry.
• Use it only within the specified temperature range.
• Do not bend the card.
• Protect the card from direct impacts.
Failure to follow these instructions could result in data loss and/or permanent damage to the card.

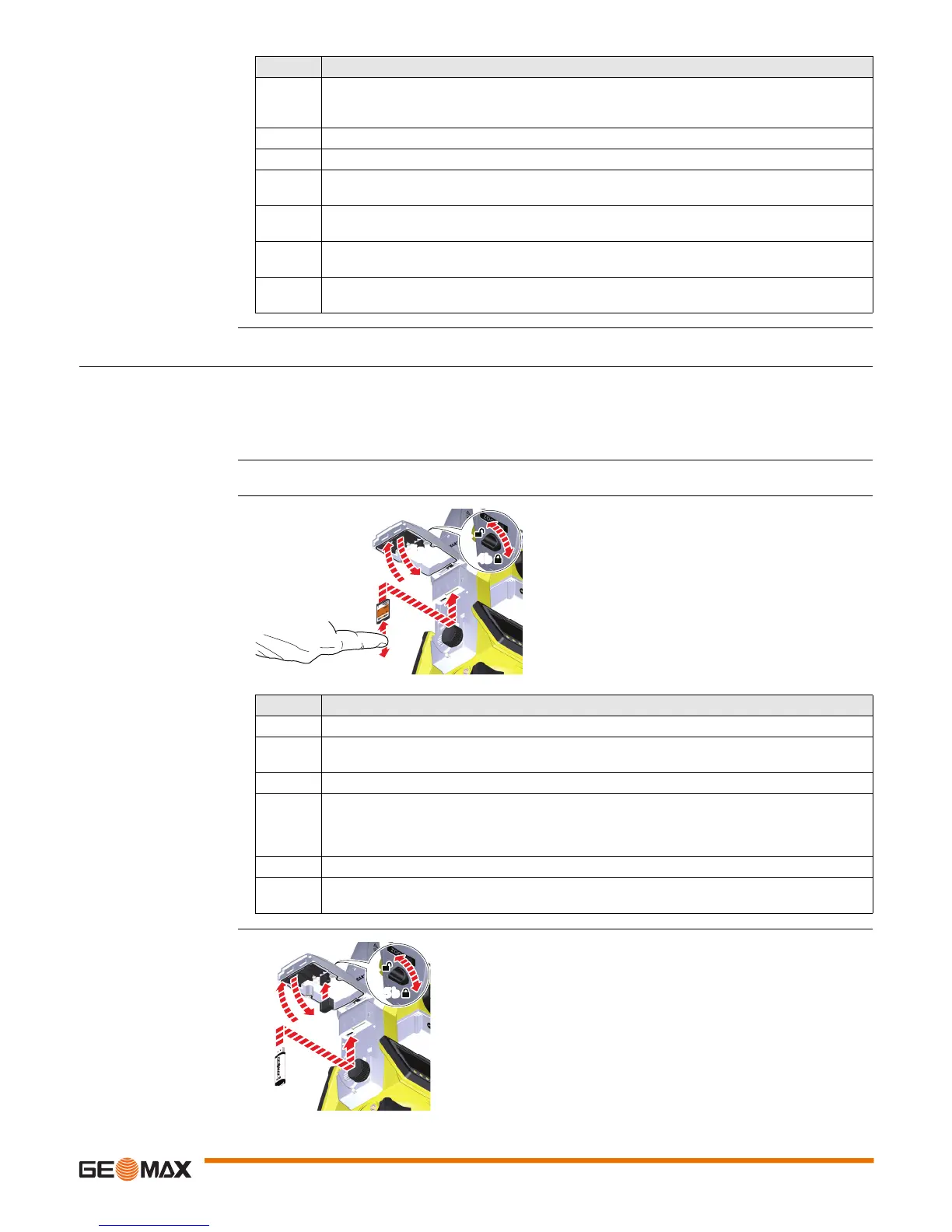

Insert and Remove an
SD Card Step-by-Step
Insert and Remove a
USB Stick Step-by-Step
Step Description
1. Face the instrument so that the vertical drive screw is on the left. The battery compartment
is below the vertical drive. Turn the knob to the vertical position, opening the lid of the battery
compartment.
2. Pull out the battery housing.
3. Pull the battery from the battery housing.
4. A pictogram of the battery is displayed inside the battery housing. This pictogram is a visual
aid to assist in placing the battery correctly.
5. Place the battery into the battery housing, ensuring that the contacts are facing outward. Click
the battery into position.
6. Place the battery housing into the battery compartment. Push the battery housing in until it
fits completely into the battery compartment.
7. Turn the knob to lock the battery compartment. Ensure that the knob is returned to its original
horizontal position.
Step Description
The SD card is inserted into a slot inside the Communication side cover of the instrument.
1. Turn the knob on the Communication side cover to the vertical position to unlock the commu-
nication compartment.
2. Open the lid of the communication compartment to access the communication ports.
3. To insert the SD card, slide it firmly into the SD slot until it clicks into position.
The card must be held with the contacts at the top and facing toward the instrument.
Do not force the card into the slot.
4. To remove the SD card, gently press on the top of the card to release it from the slot.
5. Close the lid and turn the knob to the horizontal position to lock the communication compart-
ment.
1
4b
009858_001
2
3
4a
(5)
1
4b
009859_001
2
3
4a
