Zoom90 | 50Technical Data
Control unit
Instrument Ports

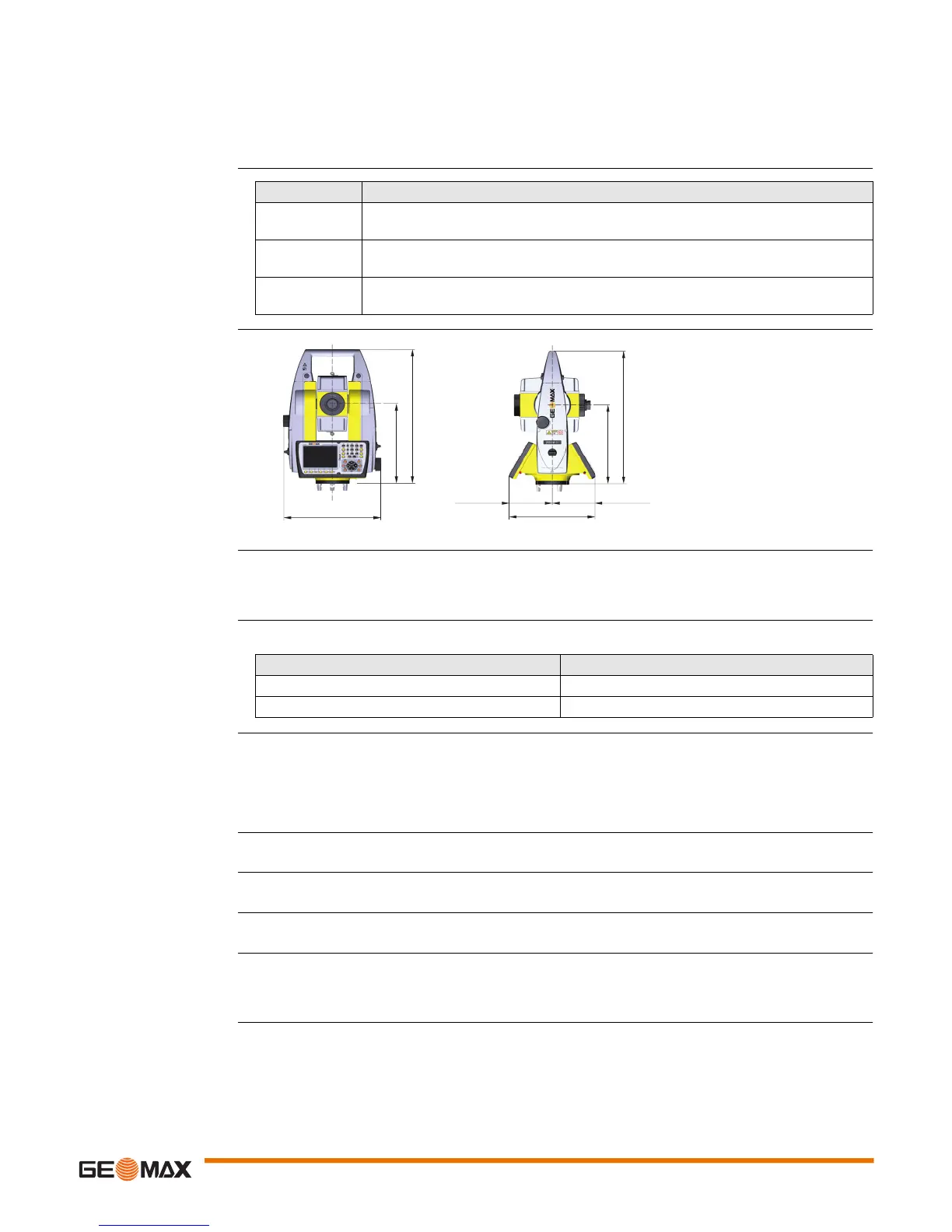

Instrument Dimensions
Weight
Recording Data can be recorded onto an SD card or into internal memory.
Laser plummet
Drives
Motorisation
Power
Internal Battery
Display: VGA (640 x 480 pixels), color TFT, LED backlight, touch
screen
Keyboard: 34 keys
including 12 function keys and 12 alphanumeric keys, illumi-
nation
Position: In both faces, face two is optional
Touch screen: Toughened film on glass
Name Description
RS232 • 5 pin LEMO-0 for power, communication, data transfer.
• This port is located at the base of the instrument.
Bluetooth
Handle
• Hotshoe connection for RadioHandle.
• This port is located on top of Communication side cover.
Internal Blue-
tooth
• Bluetooth module for communication.
• This port is housed within Communication side cover.
196 mm
328 mm
226 mm
101.5 mm101.5 mm
196 mm
328 mm
203 mm
009868_001
Instrument: 4.8 - 5.5 kg
Tribrach: 0.8 kg
Internal battery: 0.2 kg
Type Capacity
SD card 1 GB
Internal memory 1 GB
Type: Visible red laser class 2
Location: In standing axis of instrument
Accuracy: Deviation from plumb line:
1.5 mm (2 sigma) at 1.5 m instrument height
Diameter of laser point: 2.5 mm at 1.5 m instrument height
Type: Endless horizontal and vertical drives
Maximum rotating speed: 50 gon/s
External supply voltage: Nominal voltage 12.8 V DC, Range 11.5 V-13.5 V
Type: Li-Ion
Voltage: 7.4 V
Capacity: ZBA400: 6.0 Ah
