GeoVision GV-VS14 User Manual

Advanced Applications
6

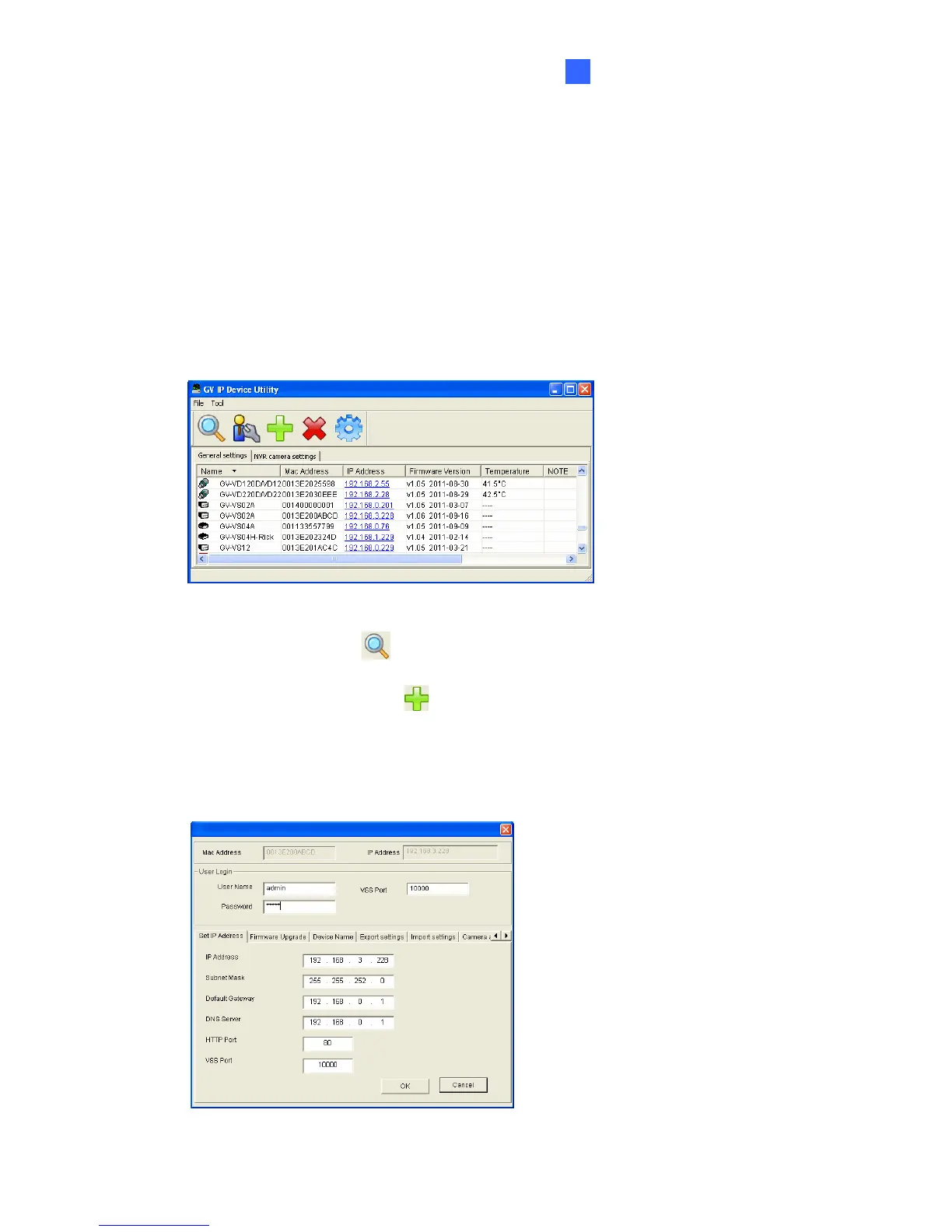

6.1.2 Using the IP Device Utility
The IP Device Utility provides a direct way to upgrade the firmware to multiple GV-Video
Servers.
1. Insert the Software CD/DVD, select IP Device Utility, and follow the onscreen
instructions to install the program.
2. Double-click the GV IP Device Utility icon created on your desktop. This dialog box
appears.
Figure 6-2
3. Click the Search button
to locate the available GV-Video Servers on the same
LAN. Or click the New button
and assign the IP address to locate a GV-Video
Server over the Internet. Or highlight one GV-Video Server in the list and click the
Delete button to remove it.
4. Double-click one GV-Video Server in the list. This dialog box appears.
Figure 6-3
111

GeoVision GV-VS14 Specifications

General

PAL resolutions	704 x 576, 704 x 576, 352 x 288, 352 x 288, 176 x 144 pixels
NTSC resolutions	704 x 480, 704 x 480, 352 x 240, 352 x 240, 176 x 112 pixels
Channels quantity	4 channels
Maximum frame rate	30 fps
Maximum video resolution	704 x 576 pixels
Video compression formats	H.264, M-JPEG
PTZ control	Yes
Compatible operating systems	Windows XP\\r Windows Vista\\r Windows 7\\r Windows 8\\r Windows Server 2008\\r Windows Server 2012
Product color	Black, White
Supported network protocols	HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, Multicast, RTSP, QoS (DSCP), SNMP
Copper ethernet cabling technology	100BASE-T, 10BASE-T
BNC input ports	4
I/O terminal ports	-
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Minimum system requirements	Internet Explorer 7+
Power requirements	12V, 1.35A
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 85 %

Weight and Dimensions

Weight	730 g
Dimensions (WxDxH)	145 x 174 x 40 mm
