GeoVision GV-VS14 User Manual

Administrator Mode
4
4.3.6 Backup Center
Note the function is only available for GV-VS04H (Firmware Version 1.03 or later), GV-
VS11, GV-VS12 (Firmware Version 1.02 or later) and GV-VS14.
The connection to GV-Backup Center allows you to back up another copy of recordings
and system log to a PC-based GV-Backup Center while the GV-Video Server is saving
these data to the attached storage device. If a disaster strikes where the GV-Video Server
is located, the recording data remain safe in a different location.

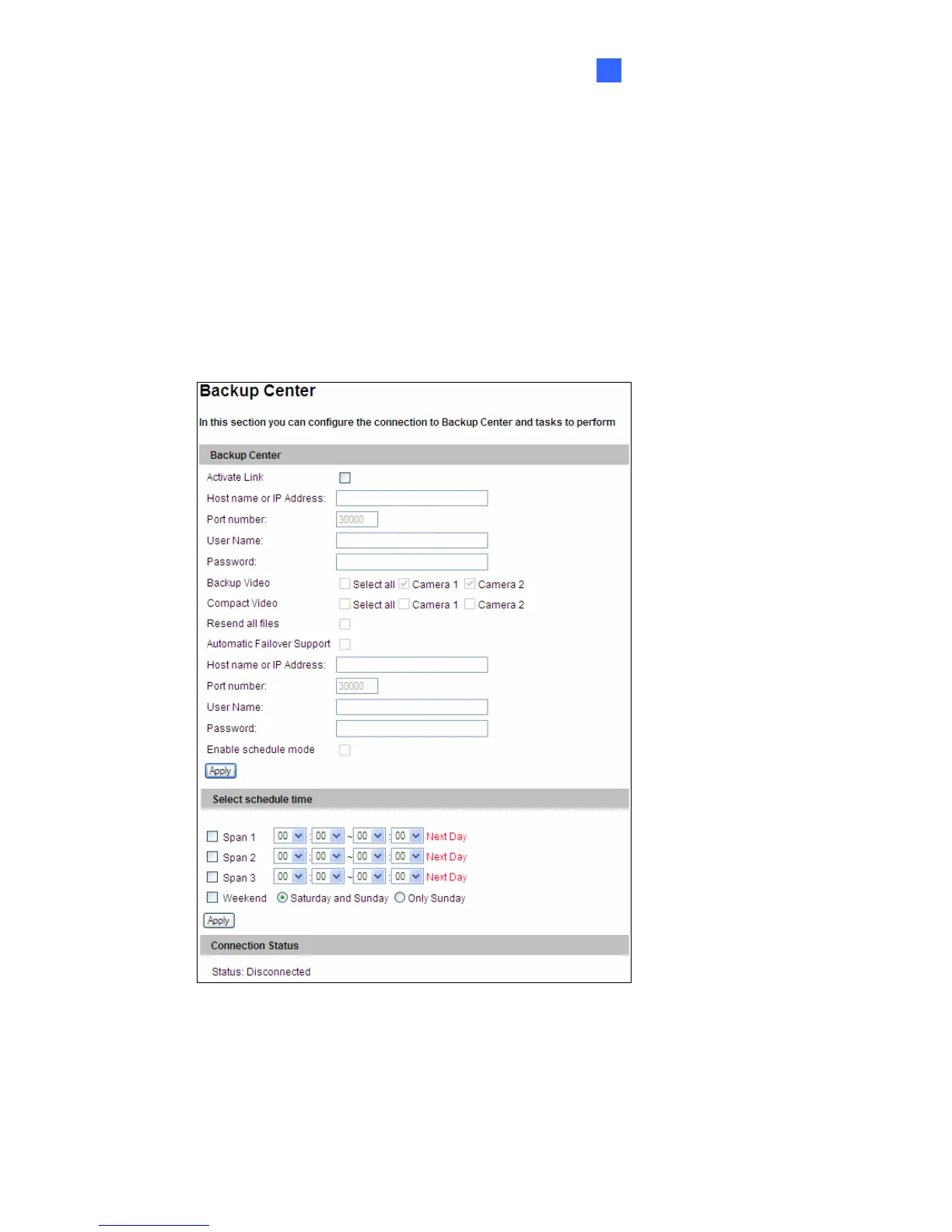

Figure 4-24
To enable the GV-Backup Center connection:
1. Activate Link: Enable the connection to GV-Backup Center.
2. Host Name or IP Address: Type the host name or IP address of GV-Backup Center.
65

GeoVision GV-VS14 Specifications

General

PAL resolutions	704 x 576, 704 x 576, 352 x 288, 352 x 288, 176 x 144 pixels
NTSC resolutions	704 x 480, 704 x 480, 352 x 240, 352 x 240, 176 x 112 pixels
Channels quantity	4 channels
Maximum frame rate	30 fps
Maximum video resolution	704 x 576 pixels
Video compression formats	H.264, M-JPEG
PTZ control	Yes
Compatible operating systems	Windows XP\\r Windows Vista\\r Windows 7\\r Windows 8\\r Windows Server 2008\\r Windows Server 2012
Product color	Black, White
Supported network protocols	HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, Multicast, RTSP, QoS (DSCP), SNMP
Copper ethernet cabling technology	100BASE-T, 10BASE-T
BNC input ports	4
I/O terminal ports	-
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Minimum system requirements	Internet Explorer 7+
Power requirements	12V, 1.35A
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 85 %

Weight and Dimensions

Weight	730 g
Dimensions (WxDxH)	145 x 174 x 40 mm
