GeoVision GV-VS14 User Manual

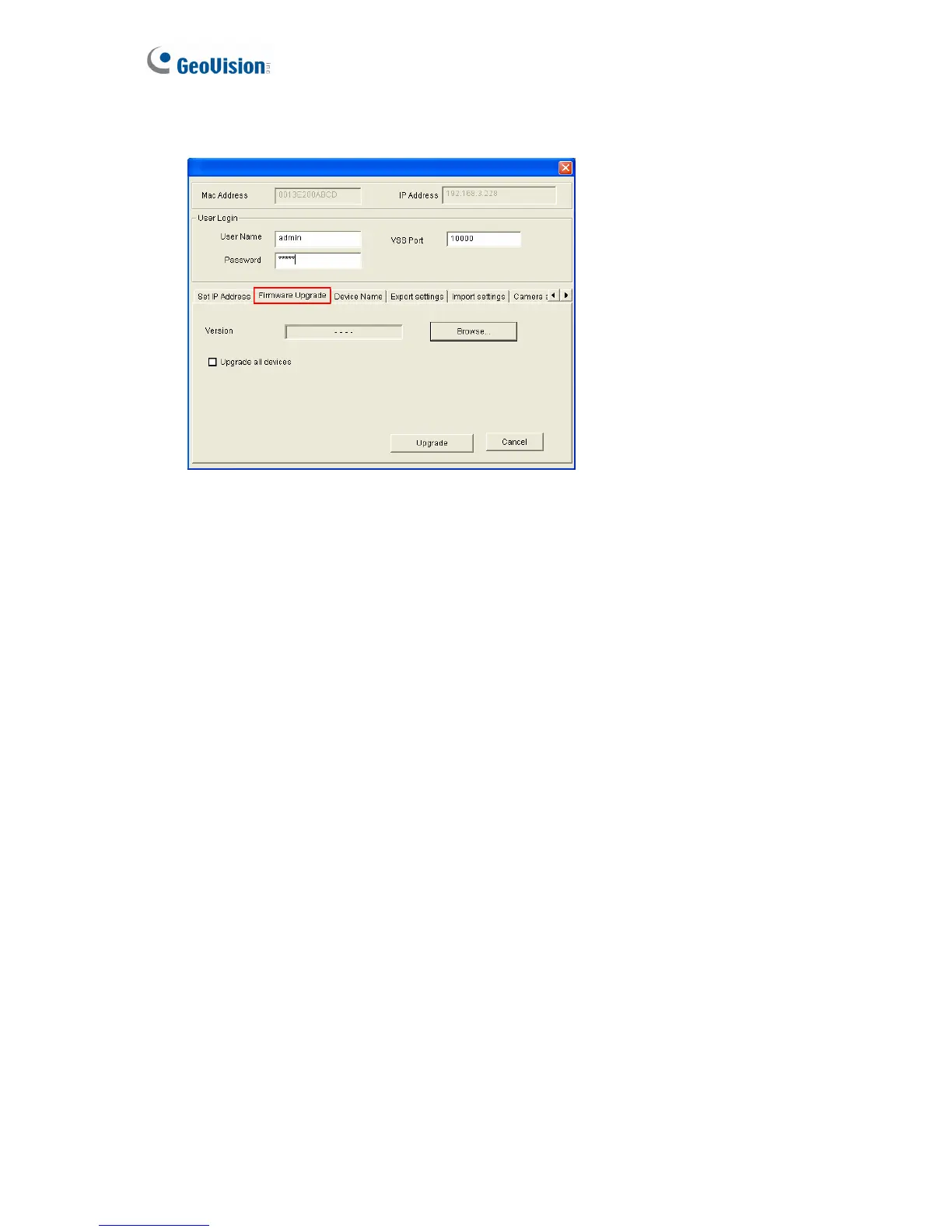

5. Click the Firmware Upgrade tab. This dialog box appears.
Figure 6-4
6. Click the Browse button to locate the firmware file (.img) saved at your local computer.
7. If you like to upgrade all the GV-Video Servers in the list, check Upgrade all devices.
8. Type the Password, and click Upgrade to process the upgrade.
6.2 Backing Up and Restoring Settings
With the IP Device Utility included on the Software CD/DVD, you can back up the
configurations in the GV-Video Server, and restore the backup data to the current unit or
import it to another unit.
6.2.1 Backing Up the Settings
1. Run IP Device Utility and locate the desired GV-Video Server. See Steps 1-3 in 6.1.2
Using the IP Device Utility.
2. Double-click the GV-Video Server in the list. Figure 6-3 appears.
112

GeoVision GV-VS14 Specifications

General

PAL resolutions	704 x 576, 704 x 576, 352 x 288, 352 x 288, 176 x 144 pixels
NTSC resolutions	704 x 480, 704 x 480, 352 x 240, 352 x 240, 176 x 112 pixels
Channels quantity	4 channels
Maximum frame rate	30 fps
Maximum video resolution	704 x 576 pixels
Video compression formats	H.264, M-JPEG
PTZ control	Yes
Compatible operating systems	Windows XP\\r Windows Vista\\r Windows 7\\r Windows 8\\r Windows Server 2008\\r Windows Server 2012
Product color	Black, White
Supported network protocols	HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, Multicast, RTSP, QoS (DSCP), SNMP
Copper ethernet cabling technology	100BASE-T, 10BASE-T
BNC input ports	4
I/O terminal ports	-
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Minimum system requirements	Internet Explorer 7+
Power requirements	12V, 1.35A
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 85 %

Weight and Dimensions

Weight	730 g
Dimensions (WxDxH)	145 x 174 x 40 mm
