GeoVision GV-VS14 User Manual

Chapter 9 Auxiliary Device Connectors
9.1 GV-VS04H and GV-VS14
The 16-pin terminal block, located on the rear panel, provides interfaces for four digital
inputs, four relay outputs, an RS-485 interface, a Wiegand interface, a GPS interface and
auxiliary power. The terminal block can be used to develop applications for motion
detection, event alerts via E-mail and FTP, center monitoring by Center V2 and VSM, PTZ
control, Wiegand-interface card reader and a variety of other functions.

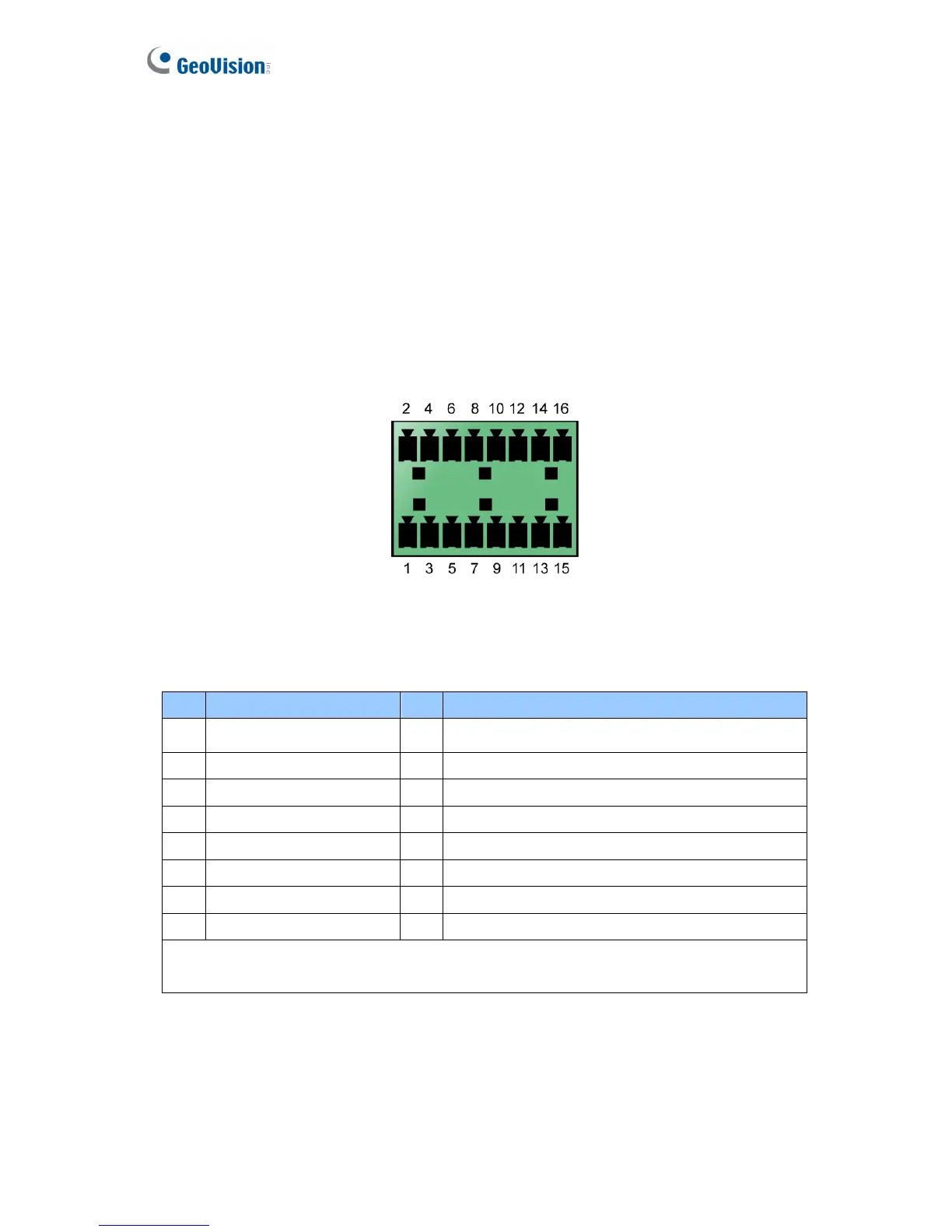

Figure 9-1
9.1.1 Pin Assignment
The table below lists the pin assignment for the terminal block.
Pin Function Pin Function
1 Relay Output 1 9 DC 5V Out for GV-Relay Module, or GPS Module
2 Digital Input 1 10 Ground, or GPS Ground
3 Relay Output 2 11 RS 485+
4 Digital Input 2 12 Wiegand D0, or GPS RX
5 Relay Output 3 13 RS 485-
6 Digital Input 3 14 Wiegand D1, or GPS TX
7 Relay Output 4 15 Ground
8 Digital Input 4 16 DC 12V Out for Wiegand Card Reader
Note: To connect the GPS module, use the Pin 9 for power supply, Pin 10 for ground, Pin
12 for GPS RX and Pin 14 for GPS TX.
136

GeoVision GV-VS14 Specifications

General

PAL resolutions	704 x 576, 704 x 576, 352 x 288, 352 x 288, 176 x 144 pixels
NTSC resolutions	704 x 480, 704 x 480, 352 x 240, 352 x 240, 176 x 112 pixels
Channels quantity	4 channels
Maximum frame rate	30 fps
Maximum video resolution	704 x 576 pixels
Video compression formats	H.264, M-JPEG
PTZ control	Yes
Compatible operating systems	Windows XP\\r Windows Vista\\r Windows 7\\r Windows 8\\r Windows Server 2008\\r Windows Server 2012
Product color	Black, White
Supported network protocols	HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, Multicast, RTSP, QoS (DSCP), SNMP
Copper ethernet cabling technology	100BASE-T, 10BASE-T
BNC input ports	4
I/O terminal ports	-
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Minimum system requirements	Internet Explorer 7+
Power requirements	12V, 1.35A
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 85 %

Weight and Dimensions

Weight	730 g
Dimensions (WxDxH)	145 x 174 x 40 mm
