GeoVision GV-VS14 User Manual

Advanced Applications
6

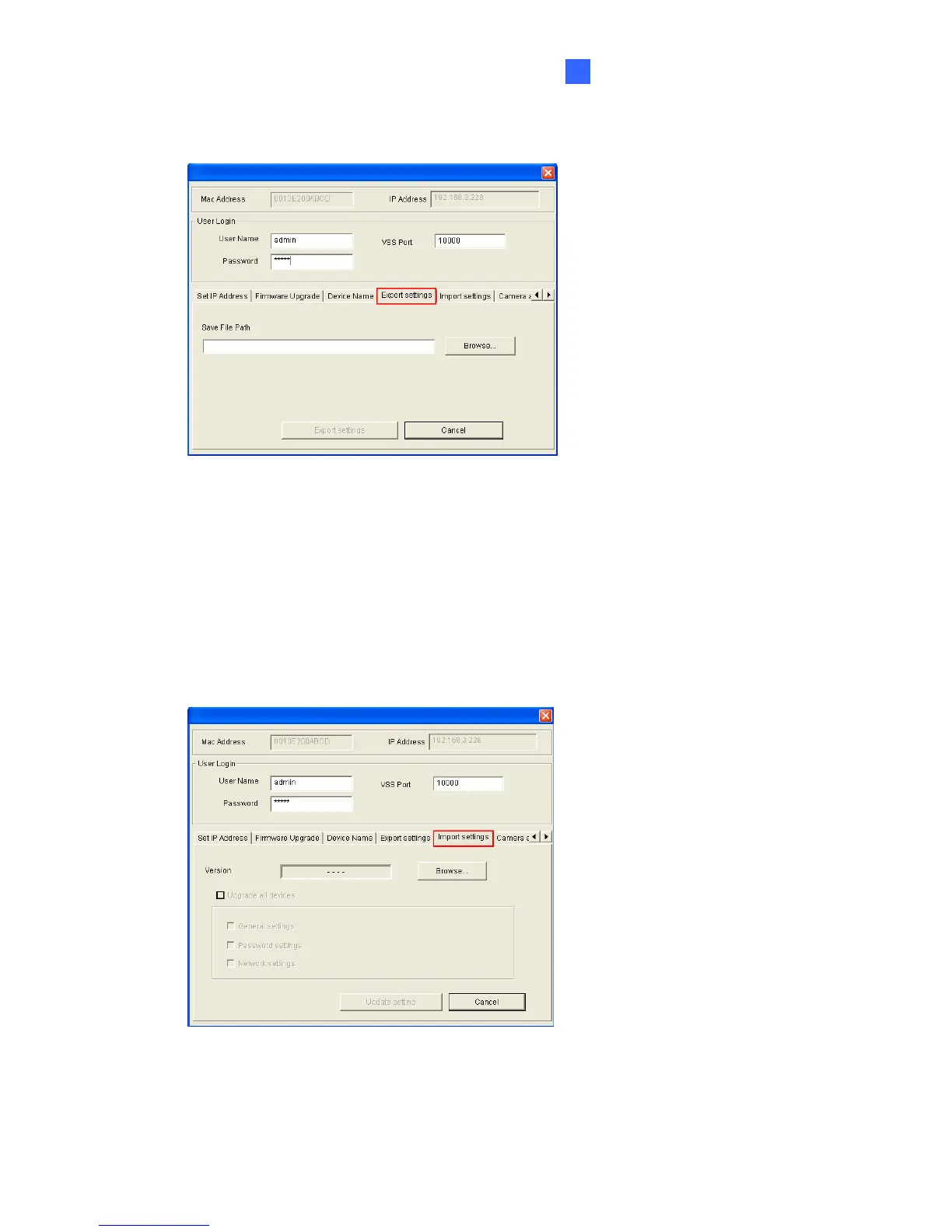

3. Click the Export Settings button. This dialog box appears.
Figure 6-5
4. Click the Browse button to assign a file path.
5. Type Password, and click Export Settings to save the backup file.
6.2.2 Restoring the Settings
1. In Figure 6-3, click the Import Settings tab. This dialog box appears.
Figure 6-6
2. Click the Browse button to locate the backup file (.dat).
3. Click Update Settings to start restoring.
113

GeoVision GV-VS14 Specifications

General

PAL resolutions	704 x 576, 704 x 576, 352 x 288, 352 x 288, 176 x 144 pixels
NTSC resolutions	704 x 480, 704 x 480, 352 x 240, 352 x 240, 176 x 112 pixels
Channels quantity	4 channels
Maximum frame rate	30 fps
Maximum video resolution	704 x 576 pixels
Video compression formats	H.264, M-JPEG
PTZ control	Yes
Compatible operating systems	Windows XP\\r Windows Vista\\r Windows 7\\r Windows 8\\r Windows Server 2008\\r Windows Server 2012
Product color	Black, White
Supported network protocols	HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, Multicast, RTSP, QoS (DSCP), SNMP
Copper ethernet cabling technology	100BASE-T, 10BASE-T
BNC input ports	4
I/O terminal ports	-
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Minimum system requirements	Internet Explorer 7+
Power requirements	12V, 1.35A
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 85 %

Weight and Dimensions

Weight	730 g
Dimensions (WxDxH)	145 x 174 x 40 mm
