GeoVision GV-VS14 User Manual

Accessing the GV-Video Server
3
3.2 Functions Featured on the Main Page
This section introduces the features of the Live View window and Network Status on the
main page. The two features are accessible by both Administrator and Guest.
Main Page of Guest Mode
▼ Video and Motion
▼ Live View
► Camera 1
► Camera 2
► Camera 3
► Camera 4
► 4 Cameras
▼ Network
► Status

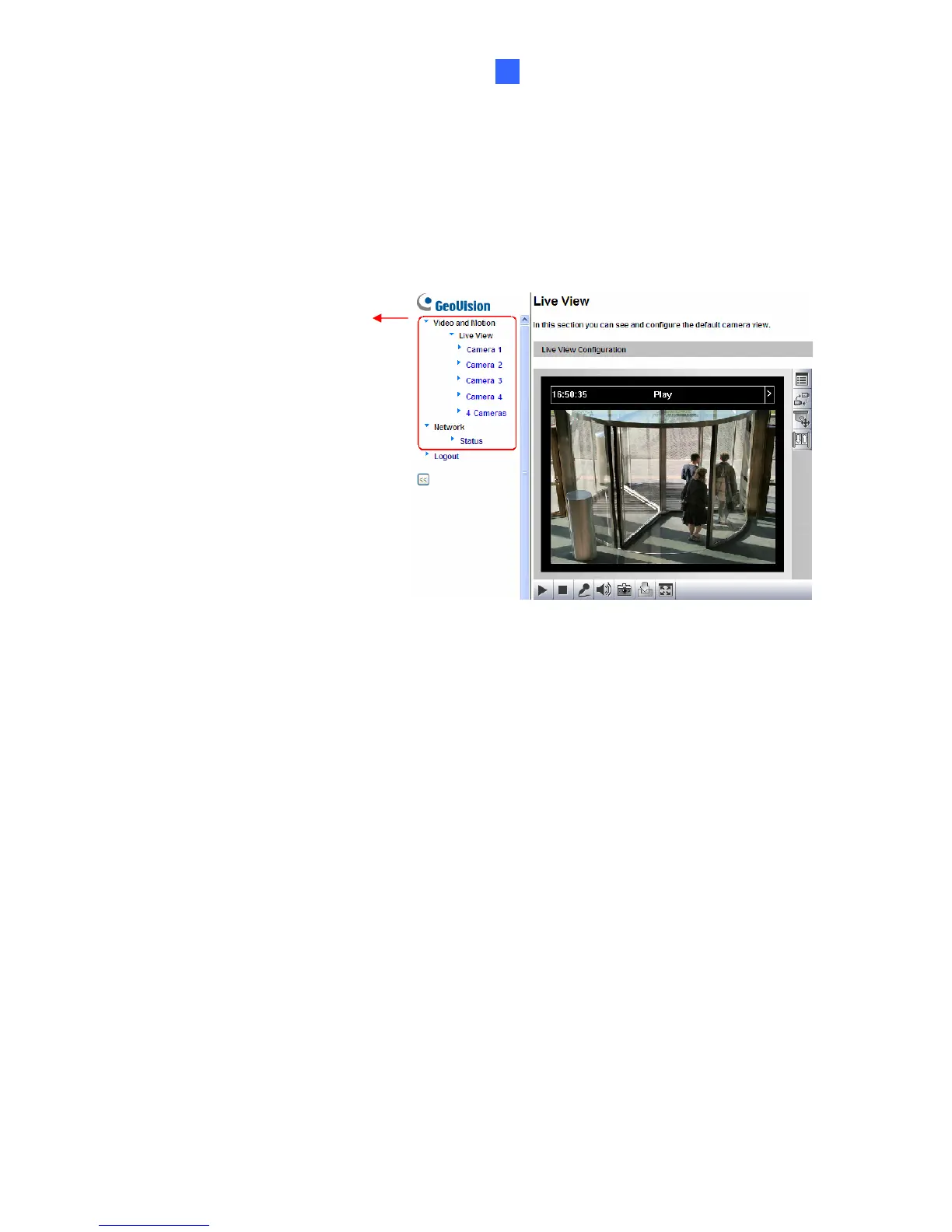

Figure 3-2 Main page of GV-VS04H in Guest Mode
For GV-VS11 and GV-VS14 users, you can process one video stream in two different image
settings. In the Administrator mode, both streams are available. Click Streaming 1 or
Streaming 2 in the left menu to access the live view. In the Guest mode, only one stream is
available.
17

GeoVision GV-VS14 Specifications

General

PAL resolutions	704 x 576, 704 x 576, 352 x 288, 352 x 288, 176 x 144 pixels
NTSC resolutions	704 x 480, 704 x 480, 352 x 240, 352 x 240, 176 x 112 pixels
Channels quantity	4 channels
Maximum frame rate	30 fps
Maximum video resolution	704 x 576 pixels
Video compression formats	H.264, M-JPEG
PTZ control	Yes
Compatible operating systems	Windows XP\\r Windows Vista\\r Windows 7\\r Windows 8\\r Windows Server 2008\\r Windows Server 2012
Product color	Black, White
Supported network protocols	HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, Multicast, RTSP, QoS (DSCP), SNMP
Copper ethernet cabling technology	100BASE-T, 10BASE-T
BNC input ports	4
I/O terminal ports	-
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Minimum system requirements	Internet Explorer 7+
Power requirements	12V, 1.35A
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 85 %

Weight and Dimensions

Weight	730 g
Dimensions (WxDxH)	145 x 174 x 40 mm
