GeoVision GV-VS14 User Manual

Administrator Mode
4
4.3.5 GV-GIS
Note the GV-GIS with two connections is only available on GV-VS04H (Firmware Version
1.03 or later), GV-VS12 (Firmware Version 1.02 or later) and GV-VS14.
Through the Internet connection, the GV-Video Server with enabled-GPS function can
send GPS data and live video to the GV-GIS geographic information system for the
services of vehicle tracking, location verification and live monitoring. The GV-Video Server
can connect up to two GV-GIS systems simultaneously.
Before you configure the GV-GIS connection on this setting page, the following conditions
must be met:
• A subscriber account created on the GV-GIS (For details on the GV-GIS geographic
information system, see GV-GIS User’s Manual)
• UMTS mobile connection activated on the GV-Video Server (See 4.7.4 UMTS)
• GPS function activated on the GV-Video Server (See 4.2.3 GPS/Wiegand)

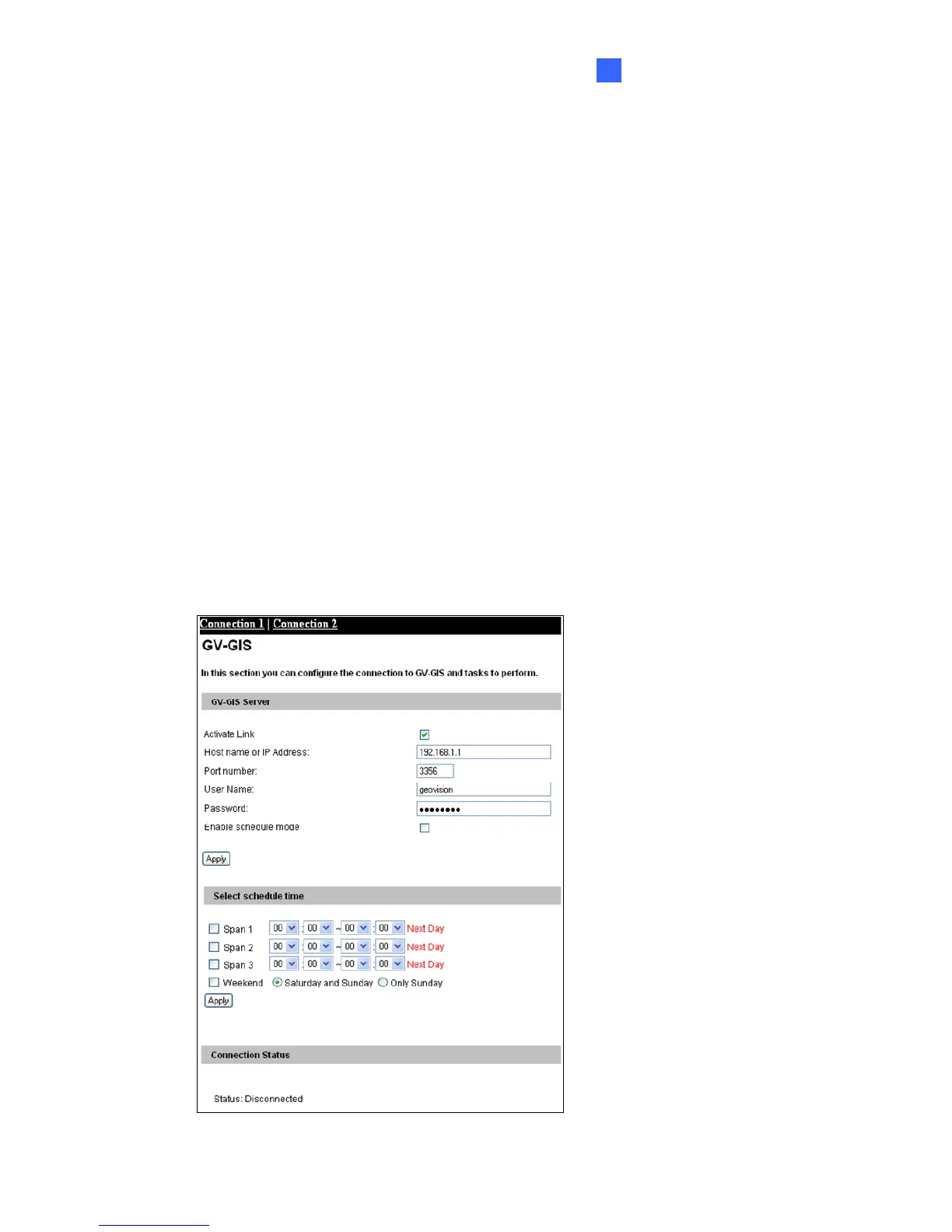

Figure 4-23
63

GeoVision GV-VS14 Specifications

General

PAL resolutions	704 x 576, 704 x 576, 352 x 288, 352 x 288, 176 x 144 pixels
NTSC resolutions	704 x 480, 704 x 480, 352 x 240, 352 x 240, 176 x 112 pixels
Channels quantity	4 channels
Maximum frame rate	30 fps
Maximum video resolution	704 x 576 pixels
Video compression formats	H.264, M-JPEG
PTZ control	Yes
Compatible operating systems	Windows XP\\r Windows Vista\\r Windows 7\\r Windows 8\\r Windows Server 2008\\r Windows Server 2012
Product color	Black, White
Supported network protocols	HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, Multicast, RTSP, QoS (DSCP), SNMP
Copper ethernet cabling technology	100BASE-T, 10BASE-T
BNC input ports	4
I/O terminal ports	-
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Minimum system requirements	Internet Explorer 7+
Power requirements	12V, 1.35A
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 85 %

Weight and Dimensions

Weight	730 g
Dimensions (WxDxH)	145 x 174 x 40 mm
