GeoVision GV-VS14 User Manual

Mobile Phone Connection
10
2. Select the desired event from the list. The video will start to play.
[PRB]

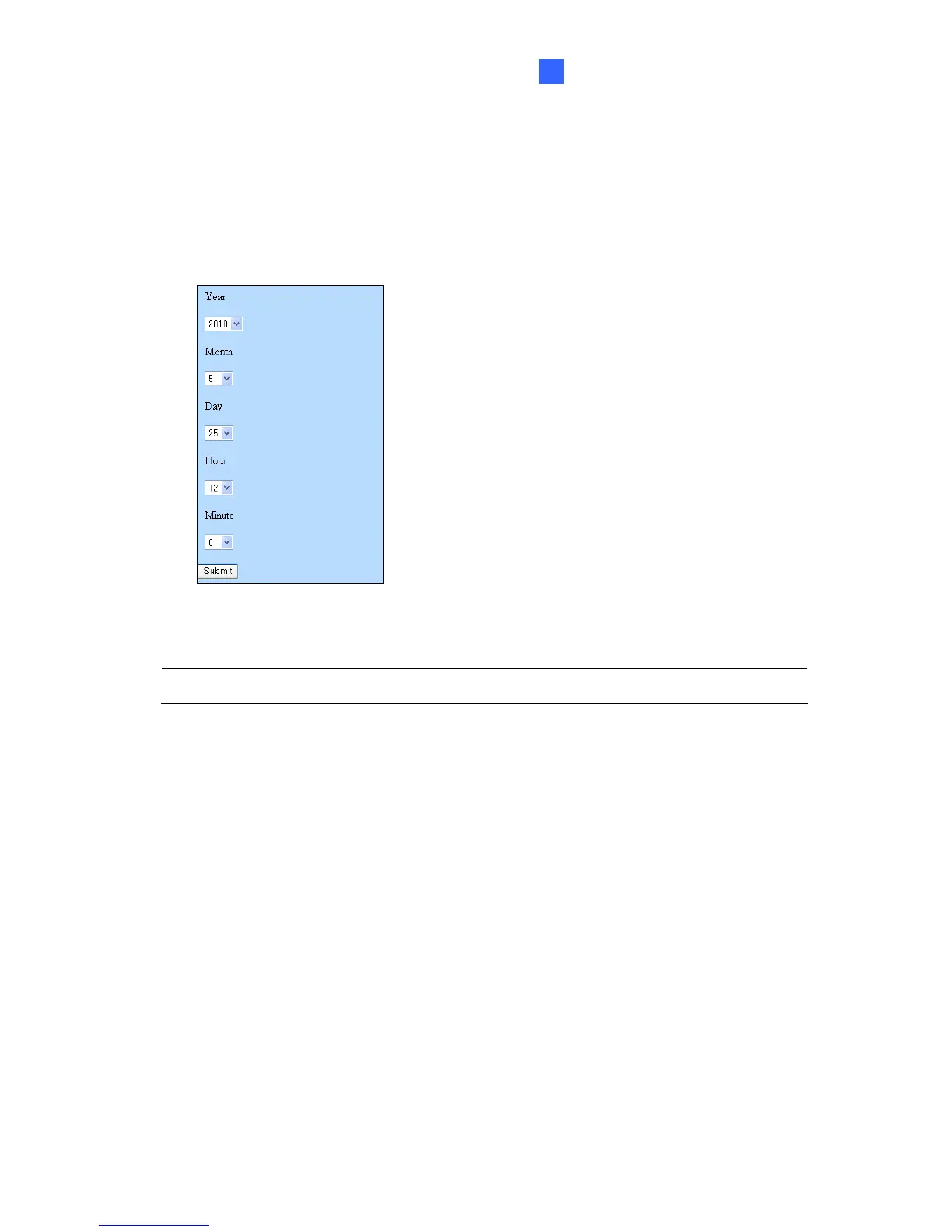

Select this option. This screen appears. Search the desired video by date and time with
the drop-down list, and click Submit. The video will start to play.
Figure 10-27
Note: Currently the 3GPP application does not support I/O control or PTZ control.
161

GeoVision GV-VS14 Specifications

General

PAL resolutions	704 x 576, 704 x 576, 352 x 288, 352 x 288, 176 x 144 pixels
NTSC resolutions	704 x 480, 704 x 480, 352 x 240, 352 x 240, 176 x 112 pixels
Channels quantity	4 channels
Maximum frame rate	30 fps
Maximum video resolution	704 x 576 pixels
Video compression formats	H.264, M-JPEG
PTZ control	Yes
Compatible operating systems	Windows XP\\r Windows Vista\\r Windows 7\\r Windows 8\\r Windows Server 2008\\r Windows Server 2012
Product color	Black, White
Supported network protocols	HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, Multicast, RTSP, QoS (DSCP), SNMP
Copper ethernet cabling technology	100BASE-T, 10BASE-T
BNC input ports	4
I/O terminal ports	-
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Minimum system requirements	Internet Explorer 7+
Power requirements	12V, 1.35A
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 85 %

Weight and Dimensions

Weight	730 g
Dimensions (WxDxH)	145 x 174 x 40 mm
