LRR 1-52,
LRR 1-53,
URB 55 - USA - Installation & Operating Manual -
850703-00

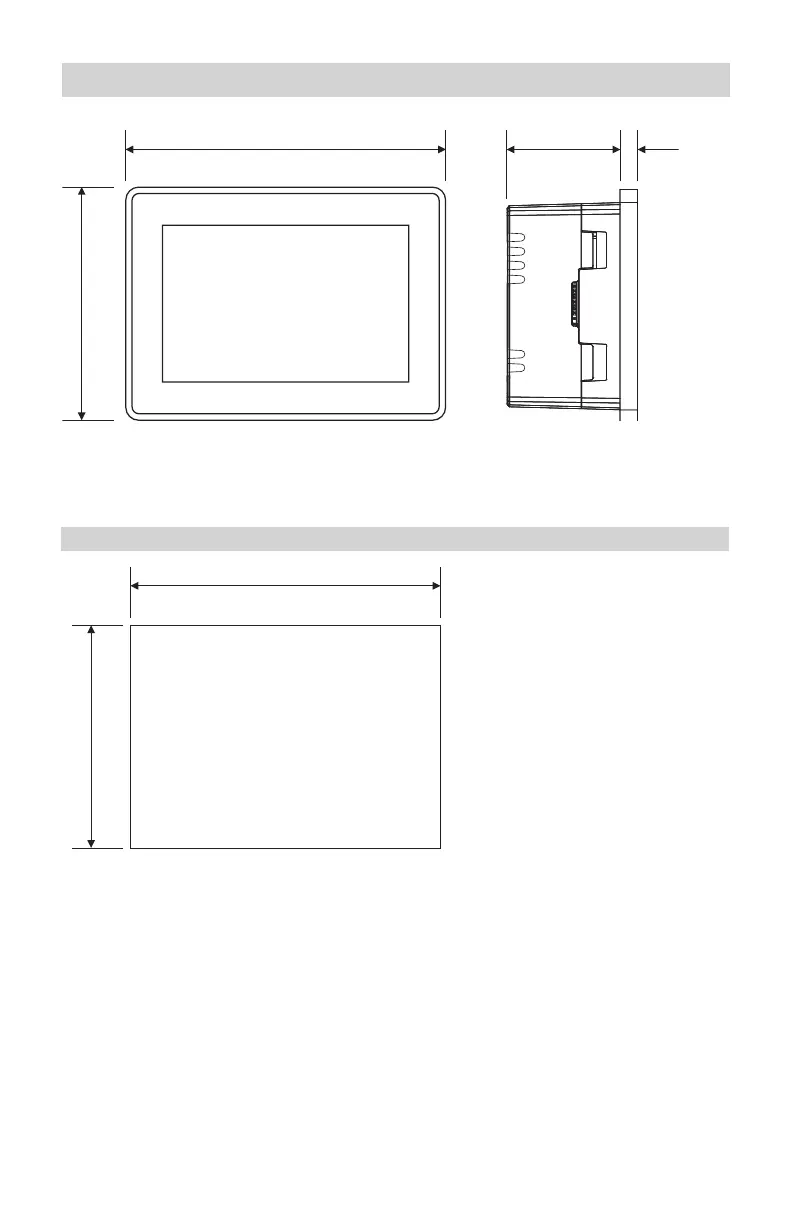

Dimensions of the URB 55
Fig.
9
Fig.
10
Required installation aperture in the control cabinet door or switch panel
5.79 in (147 mm)
5.35 in (136 mm)
2.05 in (52 mm)
4.21 in (107 mm)
3.78 in (96 mm)
0.32 in
(8 mm)
25
27
Table of Contents
Table of Contents
2
Content of this Manual
5
Scope of Supply, Product Package
5
How to Use this Manual
6
Illustrations and Symbols Used
6
Hazard Symbols in this Manual
6
Types of Warning
7
Specialist Terms, Abbreviations
8
Usage for the Intended Purpose
10
IT Security and Rules for the Use of Ethernet Devices
11
Applicable Standards for the LRR 1-52, LRR 1-53
11
Applicable Standards for the URB 55
12
Improper Use
12
Basic Safety Information
13
Required Personnel Qualifications
13
Notes on Product Liability
13
Function
14
Possible Combinations of Functions and Equipment
14
Technical Data for the LRR 1-52, LRR 1-53
16
Technical Data for the URB 55
18
Factory Settings of the LRR 1-52, LRR 1-53
20
Lrr 1-52
20
Lrr 1-53
20
Lrr 1-52, Lrr 1-53
20
Factory Default Settings of the URB 55
21
Rating Plate, Identification of the LRR 1-52, LRR 1-53
22
Rating Plate, Identification of the URB 55
23
Functional Elements and Dimensions of the LRR 1-52, LRR 1-53
24
Installing the LRR 1-52, LRR 1-53 Conductivity Controller
25
Dimensions of the URB 55
26
Required Installation Aperture in the Control Cabinet Door or Switch Panel
26
Installing the URB 55
27
Connecting the URB 55
28
Ports and Sockets on the Back of the Unit
28
Connection for 24 V DC Supply Voltage - Pin Assignment
28
Pin Assignment of Data Line between URB 55 and LRR 1-52, LRR 1-53
28
Safety Information on the Electrical Connection
29
Wiring Diagram for the LRR 1-52 Conductivity Controller
30
Connecting LRG 16-4 Conductivity Electrodes
30
Connecting an LRG 16-9 Conductivity Electrode
31
Wiring Diagram for the LRR 1-53 Conductivity Controller
32
Connecting an LRGT 1X-X Conductivity Transmitter (4 - 20 Ma)
32
Electrical Connection of the LRR 1-52, LRR 1-53
33
Connecting the 24 V DC Power Supply
33
Connecting the MIN/MAX/CLOSED/OPEN Output Contacts
33
Notes on Connecting Inductive Loads
33
Connecting an LRG 16-9 Conductivity Electrode
33
Connecting an LRGT 1X-X Conductivity Transmitter
34
Connecting the Actual Value/Manipulated Variable Output (4 - 20 Ma)
34
Connecting the Standby Input (24 V DC)
34
Connecting the Potentiometer (0 - 1000 W)
34
Connecting the Data Line between the Conductivity Controller and the URB 55
35
Connecting the Spectormodul Bus System
35
Changing the Equipment Settings
36
Status Display of the LRR 1-52, LRR 1-53
38
Visual Display and Operating Unit URB 55
39
Switching on the Supply Voltage
39
Operation and Navigation
40
User Interface (Example)
40
Color Coding of Input and Status Fields
40
Automatic Functions
41
Entering Parameters Using the Virtual Keypad
41
Entering Parameters with Password Protection
42
Scroll Bar for Long Lists and Menus
42
Icons and Functions of the LRR 1-52, LRR 1-53
43
Home Screen of LRR 1-52, LRR 1-53 Conductivity Controllers
46
Alarm and Fault Indications
47
Opening the Alarm History
48
System Settings
49
System Information
49
Setting the Date/Time
50
Password
50
Network Settings
51
Data Exchange Via Modbus TCP
51
VNC Server / Remote Software
52
Configuring the Conductivity Controller
53
Setting the MIN/MAX Switchpoints and Set Point
53
Trend Log
55
Test - Testing the Relays of the Connected Conductivity Controller
56
Setting the Flushing Interval and Flushing Time of the Continuous Blowdown Valve
57
Calibrating the Feedback Potentiometer for a Display of the Continuous Blowdown Valve Position
58
Calibrating the Conductivity Electrode
59
Setting Correction Factor C
60
Setting the Measuring Range of the LRR 1-52
61
Setting the Measuring Range of the LRR 1-53
61
Setting the Control Parameters
62
Guide to Setting Control Parameters
62
Setting Automatic Intermittent Blowdown
63
System Malfunctions of the URB 55
64
Indication of System Malfunctions in the Alarm and Error List Using Error Codes
64
Common Faults and Issues During Use of the URB 55
65
System Malfunctions of the LRR 1-52, LRR 1-53
66
Causes
66
Check the Installation and Configuration before Systematic Troubleshooting
66
What to Do in the Event of System Malfunctions
67
Check Installation and Function
67
Taking the LRR 1-52, LRR 1-53 out of Service
67
Taking out of Service URB 55
67
Disposal
68
Returning Decontaminated Equipment
68
UL Components
68
