Installing the URB 55
The URB 55 is designed for installation in control cabinet doors or switch panels. The maximum
panel thickness is 0.39in (10mm).
For this, you will need the following tools:
■
A tool for cutting the installation aperture
■
A Phillips PH2 screwdriver
A

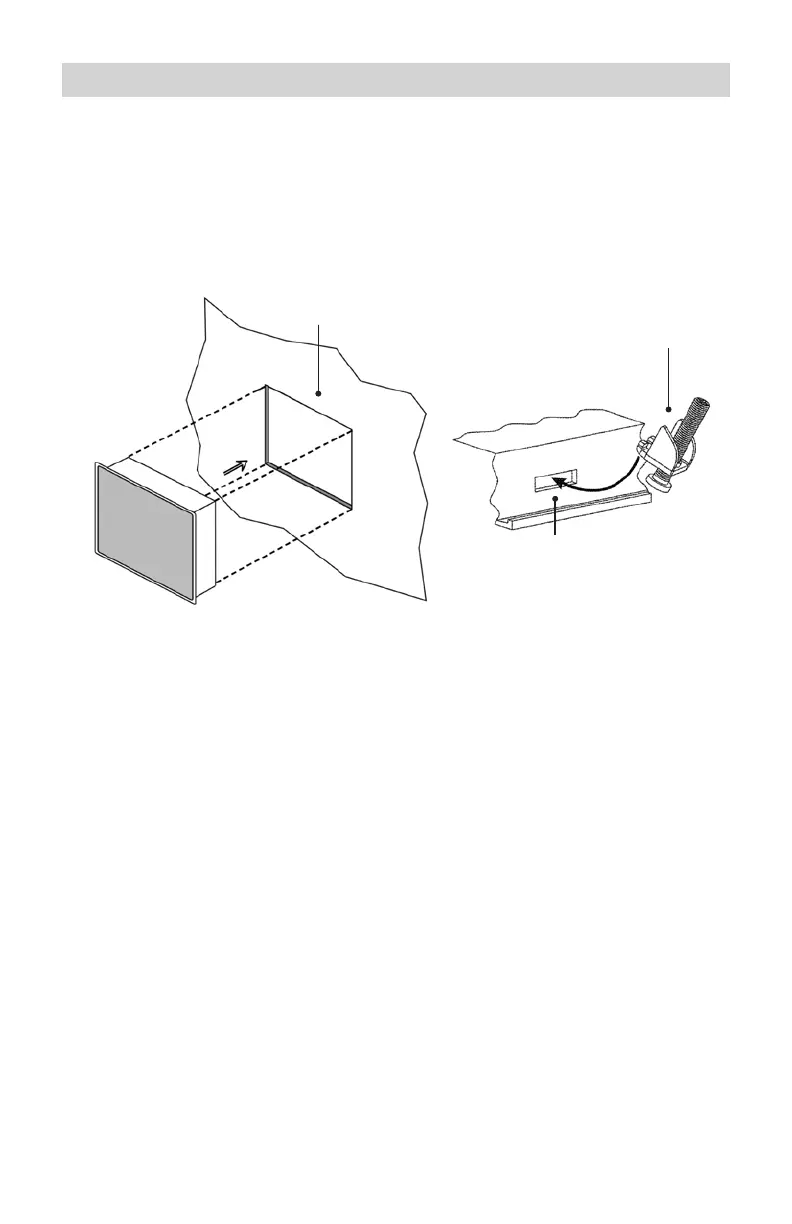

B
Fig. 11 Fig. 12
A Installation aperture 5.35in (136mm) x
3.78in (96mm), e.g., in a control cabinet door
B 4 x fastening elements
(supplied)
C 4 x mounting holes in the unit
1. Cut an aperture (see Fig. 11) in the control cabinet door or switch panel.
2. Stick the supplied gasket to the back of the display frame.
3. Carefully push the URB 55 visual display and operating unit through the aperture, making sure
the gasket is correctly seated.
4. Insert the supplied fastening elements and tighten until the corners of the display frame are in
contact with the gasket.
5. Remove the protective film from the display.
