Operation and navigation
The URB 55 is operated in situ using the color touchscreen or via Ethernet using remote software.

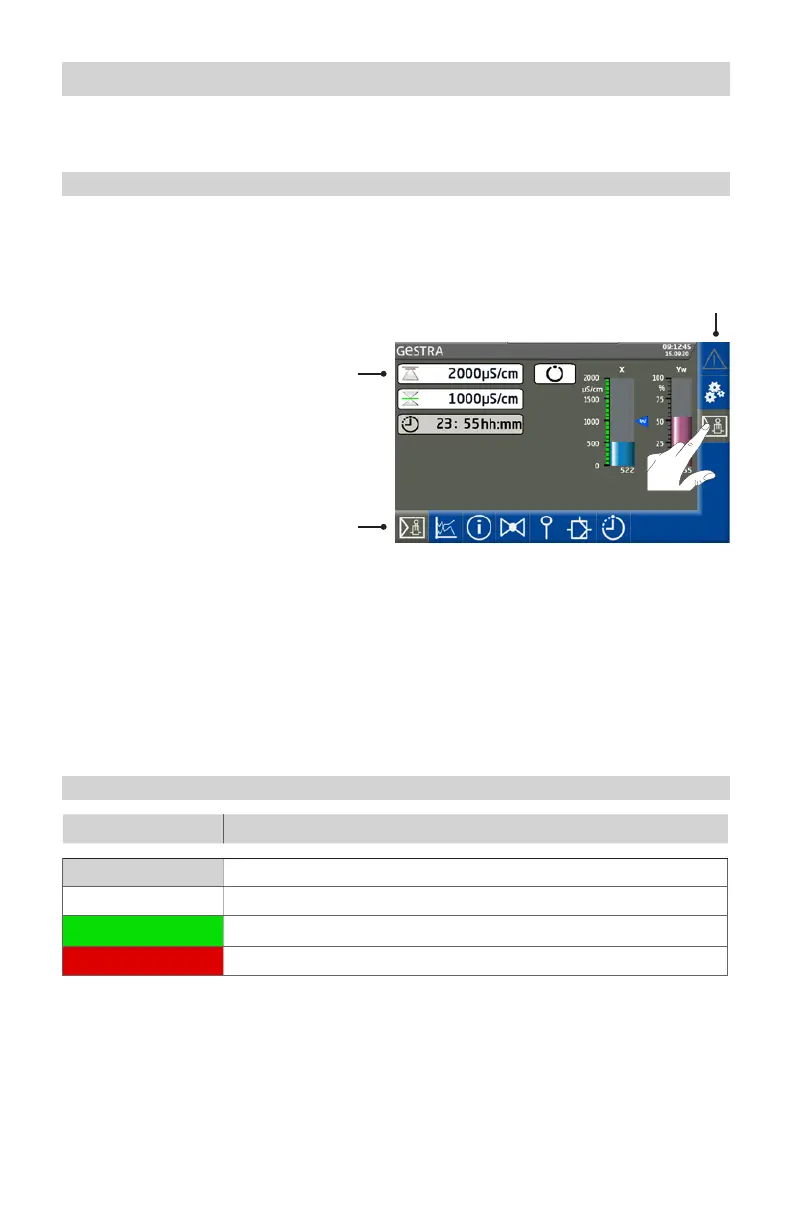

User interface (example)
The URB 55 visual display and operating unit shows parameters, operating states, etc. on a display.
The user interface of the URB 55 is divided into three areas:
alarm, system and controller icons
Display window
Controller parameters
■
The display window shows operating states and actual values.
■
The various parameter screens are opened via the icons. These icons change dynamically and
are either shown or hidden, depending on the current page and configuration.
■
All entries and actions, e.g., opening setup menus and parameter screens, are initiated by
tapping the buttons and input fields. The active screen has a gray background, see above.
■
You can close smaller windows that appear by touching the screen outside of the window.
Color coding of input and status fields
Background color Description, function
Gray Unavailable/static
White Input field
Green Status information, On, OK status
Red Status information, Alarm status
Fig. 21
