GESTRA LRR 1-52 Original Installation & Operating Manual

31LRR 1-52, LRR 1-53, URB 55 - USA - Installation & Operating Manual - 850703-00
24 V DC
4-20 mA
+
–
M 0,5 A
+
–
+
–
24 V DC
2716 17 18 19 20 21 22 23 24 25 26 28 29 30
123456789101112131415
0 - 1K
Ω
–
+
H L
5 2 14 3
S S

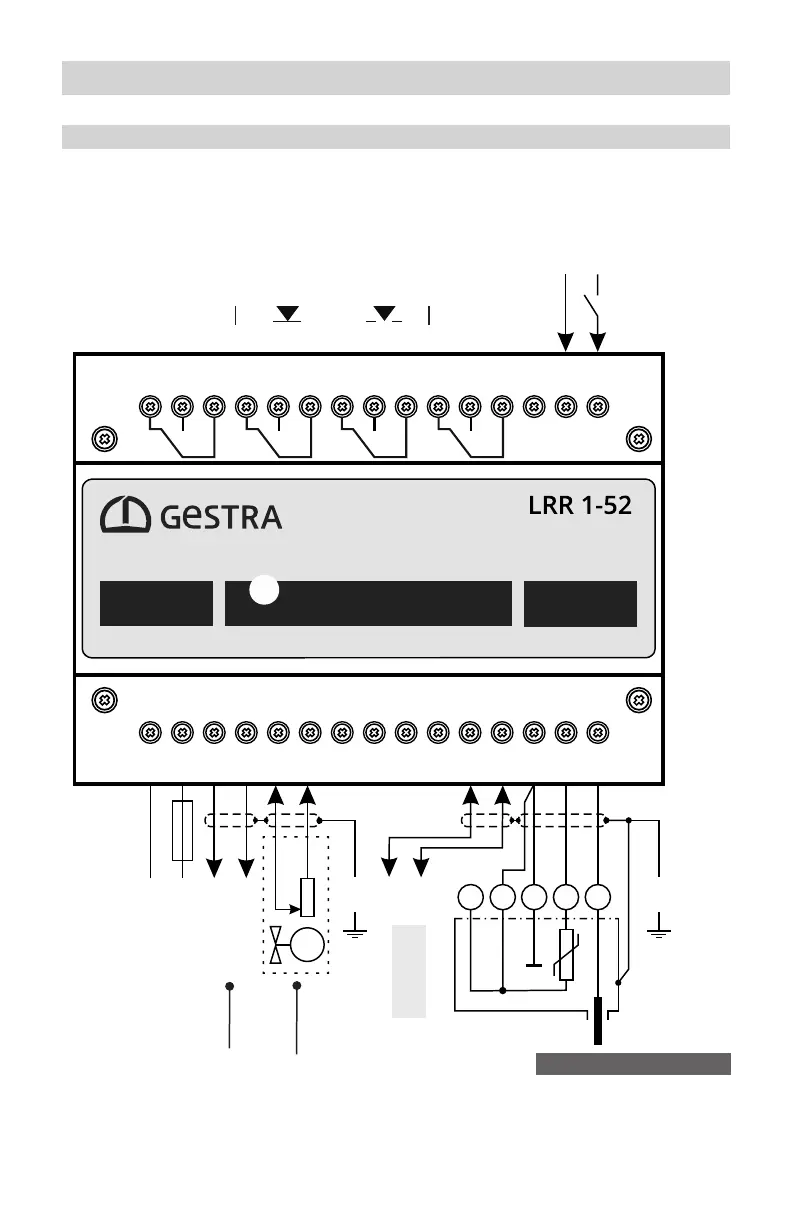

Wiring diagram for the LRR 1-52 conductivity controller
Connecting an LRG 16-9 conductivity electrode
Relay output for
MIN alarm
or
Actuation of an
intermittent blowdown valve
MIN
Actuation of a continuous
blowdown valve
CLOSED
Relay output for
MAX alarm
MAX
OPEN
Supply voltage,
fuse provided by customer
M0.5A (medium time-lag)
Actual value/
manipulated
variable output
(switch-selectable)
Indication of valve position
(potentiometer 0 - 1000W)
M
Data line
for URB 55
= shield
LRG 16-9
Conductivity electrode with
integrated resistance ther-
mometer.
Fig. 17
Standby input for an external command:
Control OFF / Valve CLOSED / Intermittent blowdown OFF
