47

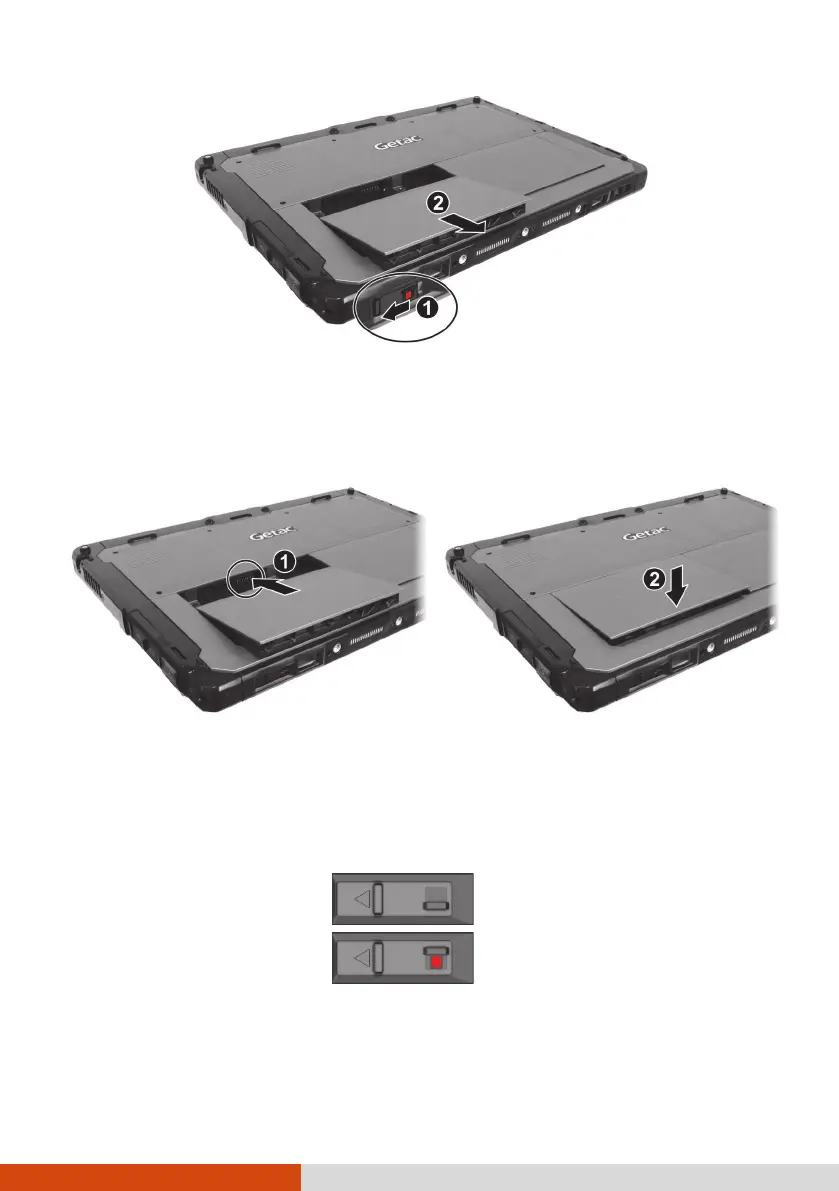

5. Fit another battery pack into place. With the battery pack correctly
oriented, attach its connector side to the battery compartment at an
angle (
) and then press down the other side (
). The battery release
latch should automatically engage.
6. Slide the lock of the battery release latch downward to the locked
position.
CAUTION: Make sure the latch is correctly locked, not revealing the
underneath red part.
Locked
Unlocked
(revealing red part)
To Next Page
