Installing the Battery Packs
K120 has two battery compartments for two battery packs; each is installed
in the same way.

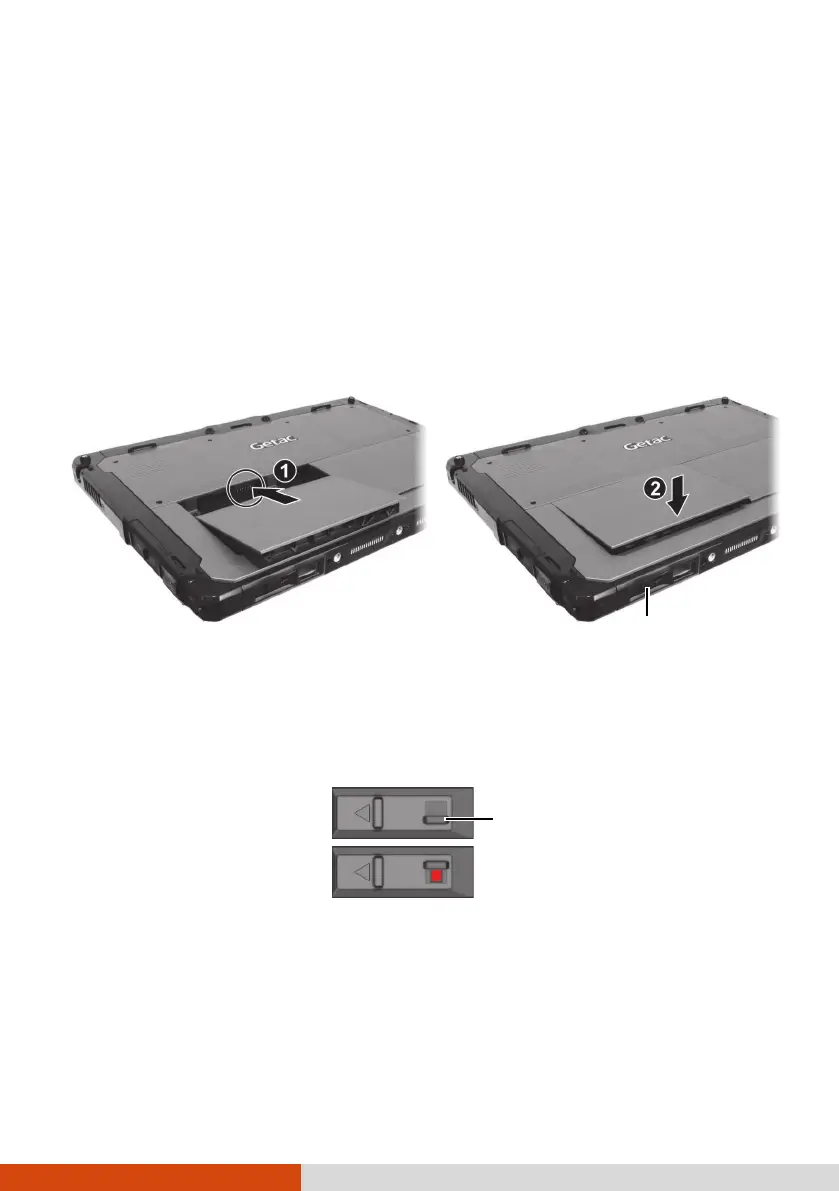

1. With the battery pack correctly oriented, attach its connector side to the
battery compartment at an angle (
) and then press down the other
side (
). The battery release latch should automatically engage.
NOTE: If you have the high-capacity battery model, the battery pack looks
different from the one shown here. The removal and installation method is
the same.
2. Slide the lock of the battery release latch downward to the locked position.
CAUTION: Make sure the latch is correctly locked, not revealing the
underneath red part.
Locked
Unlocked
(revealing the red part)
