4.02.2 Baffle Filter Removal
Turn OFF hood power ...
B
A
F
F
L
E
F
I
L
T
E
R
BA
FF
L
E
F
ILT
E
R
B
A
F
FL
E
F
ILT
E
R
BA
F
F
LE
FIL
T
E
R

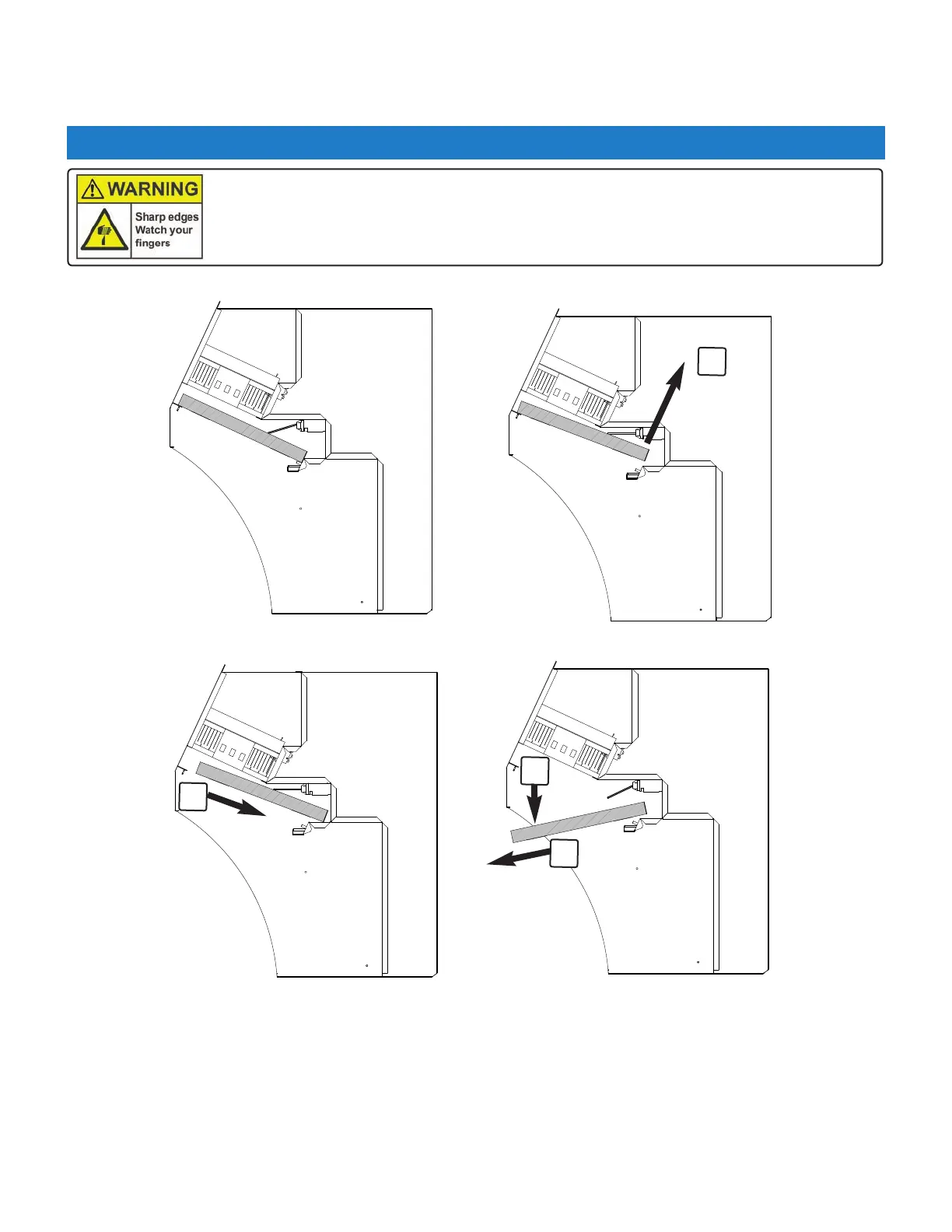

①Lift rear edge of filter enough to clear the edge of rear support channel.
②Slide filter toward the back of the hood, allowing front edge to slide free of front support ledge.
③Drop front edge down to clear Front Header Panel.
④Remove filter from hood.
1
2
3
4
The Baffle Filter has sharp exposed edges, which may cause cuts. Use due caution when handling and
cleaning. Heavy duty rubber gloves are advised.
