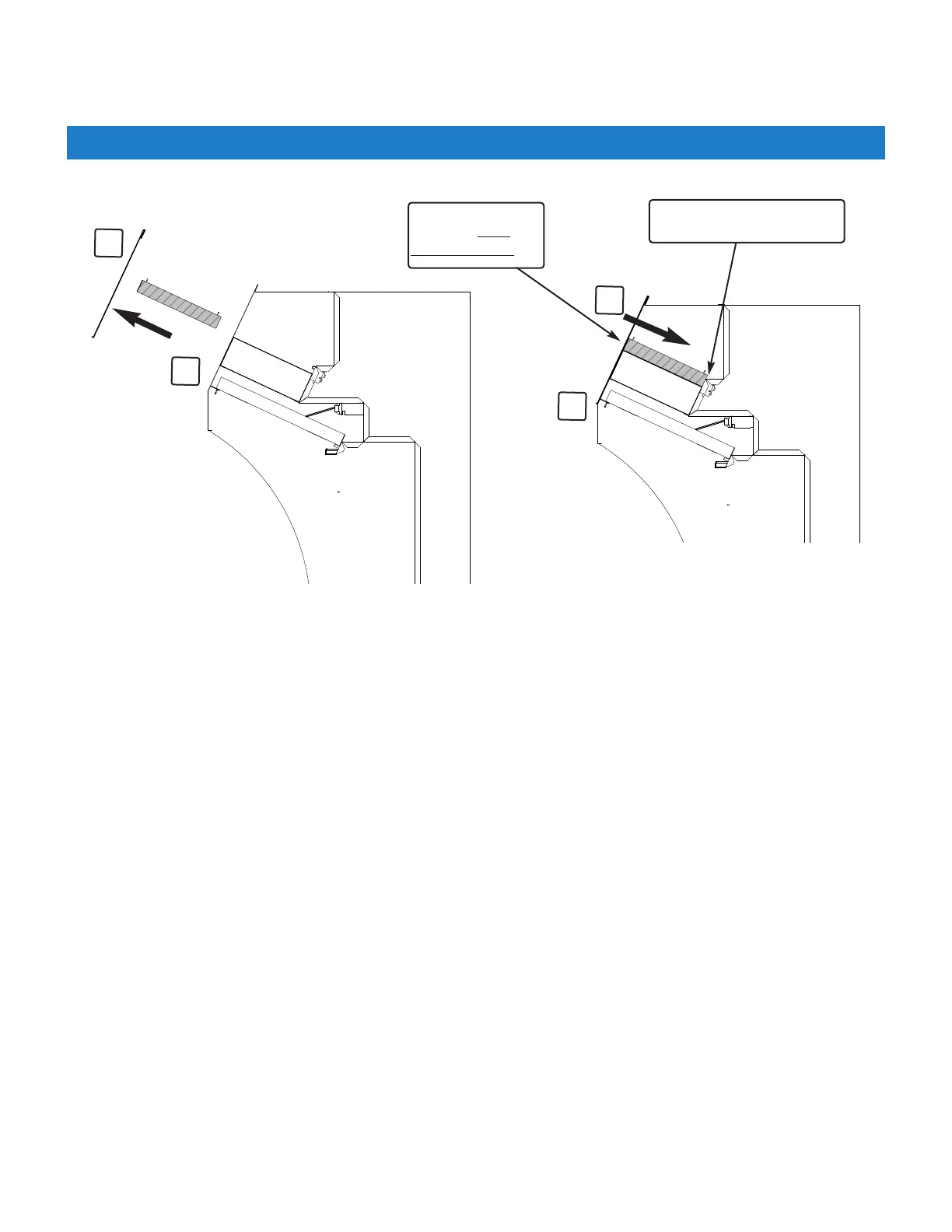

① Unlatch Access Cover and lift off.
② Grasp charcoal filter and pull straight out, at an slight
upward angle.
① Align in guide channels, slide straight into hood.
Filter must fit flush with front. Blue fiber‐fill side
must face upward.
② Replace and latch cover.
Switch must be actuated by
the filter when installed.
Note airflow arrow
on label; “Blue
fiber‐fill side UP”
1
2
1
2
NOTE: HEPA Filter models ONLY ‐ charcoal filter is located beneath the HEPA, such that air passes through it first before the
HEPA filter. When installed, the filter must properly engage a proofing switch located on the back wall.
