Switch arm
must be
actuated by
the Baffle
Filter when
installed, as
shown

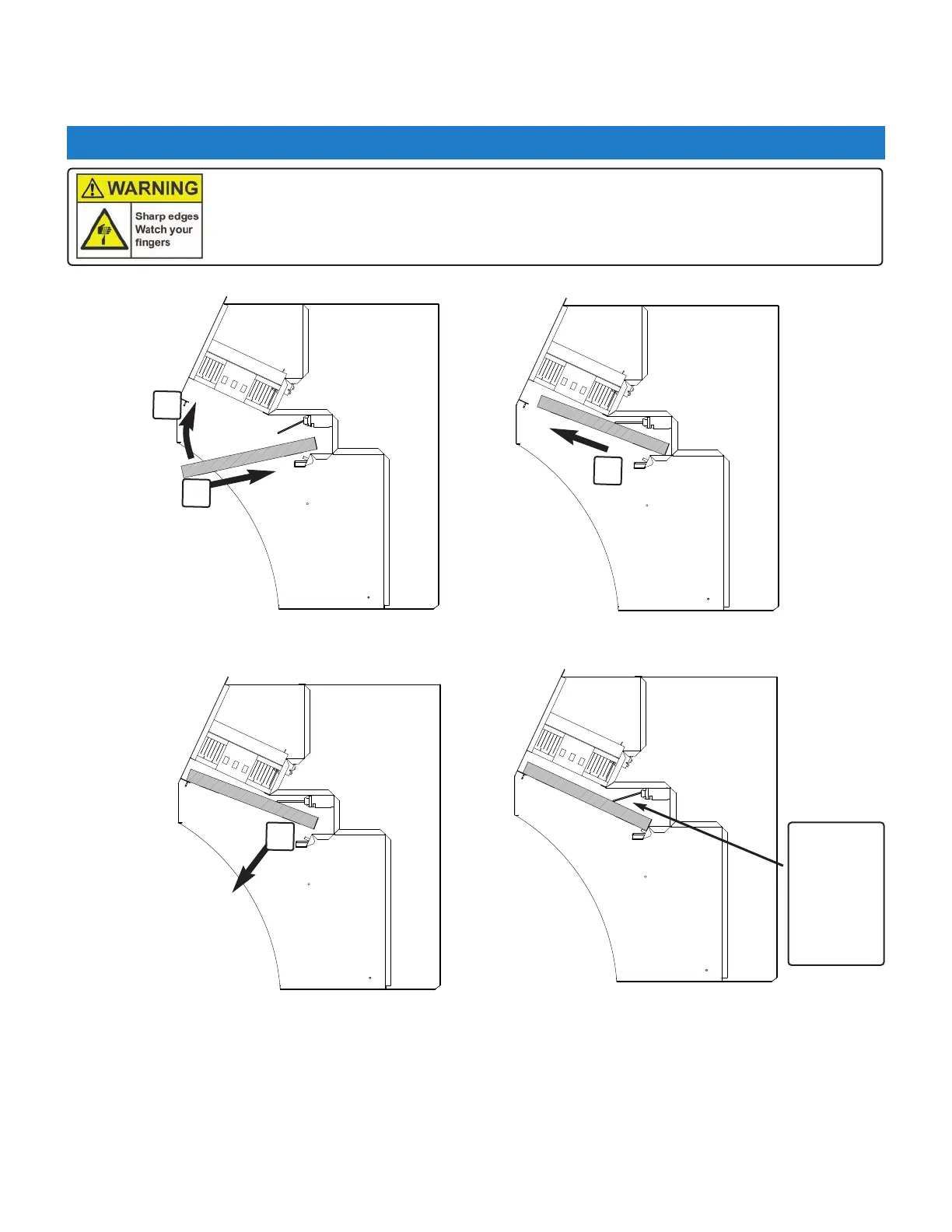

① Insert back edge of filter into hood (to the back wall).
② Lift front edge up behind Front Header Panel.
③ Pull filter forward until front edge rests on support ledge inside front panel.
④ Allow back edge to drop down and rest on studs in the rear channel.
IMPORTANT! As shown above, the filter body must engage and actuate the curved actuator lever located at the rear of
hood, on the right side. Filter must be installed so that the slats/slots are vertical, NOT horizontal.
The Baffle Filter has sharp exposed edges, which may cause cuts. Use due caution when handling and
cleaning. Heavy duty rubber gloves are advised.
1
2
3
4
