GILES FSH-2-PH - Collector Cell (or HEPA) Removal; Collector Cell (or HEPA) Installation

30
Operation
FSH-2-PH

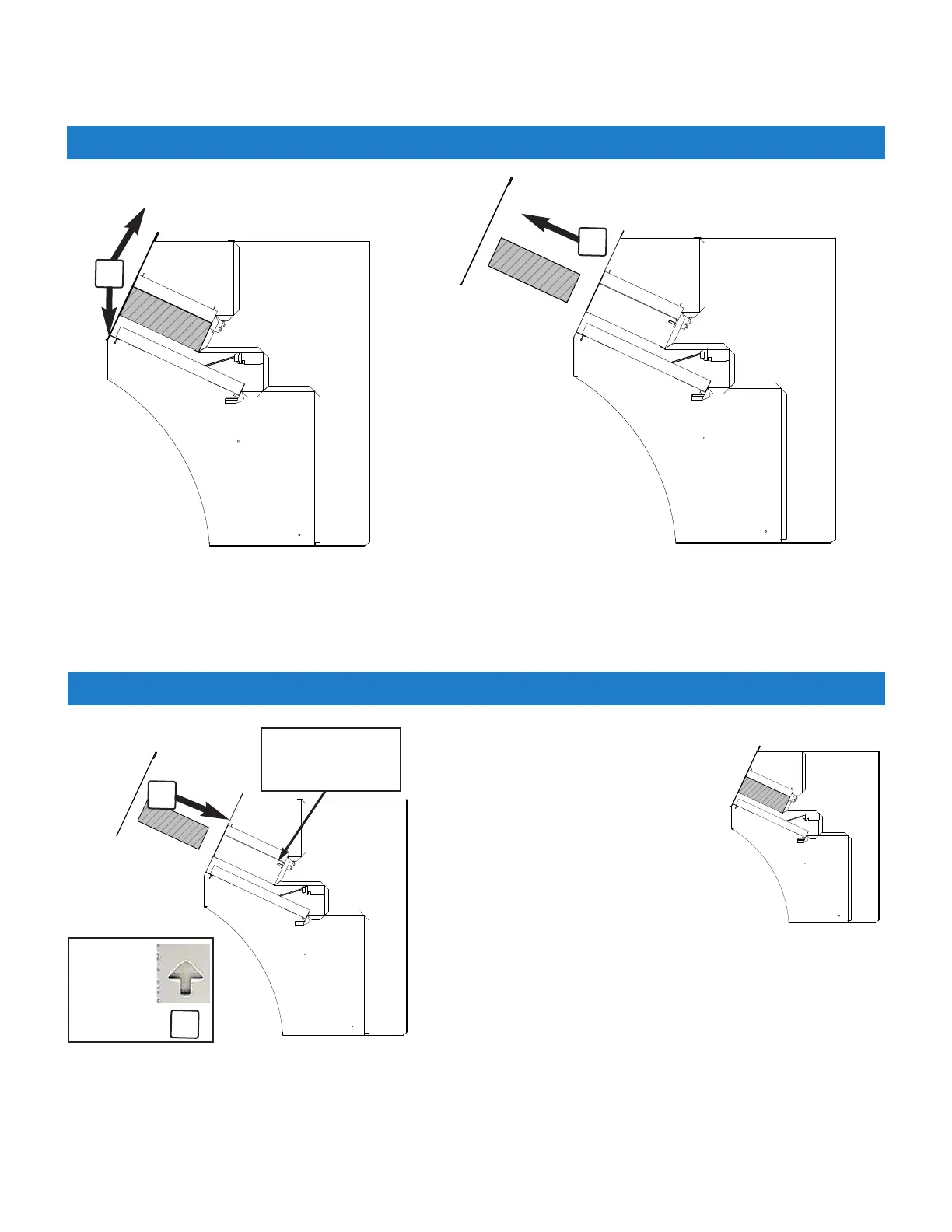

4.02.5 E.A.C. Collector Cell / HEPA Filter Installation
4.02.4 E.A.C. Collector Cell / HEPA Filter Removal
NOTE: HEPA Filter models ONLY ‐ charcoal filter is located beneath the HEPA, such that air passes through it first before the
HEPA filter. When installed, the filter must properly engage a proofing switch located on the back wall.
E
A
C
EA
C
① Unlatch Access Cover and lift off.
② Grasp E.A.C. Collector Cell / HEPA Filter and pull straight out, at a slightly upward angle.
1
2
EA
C
Pin must align & fit
thru hole in rear of
cell.
Airflow
arrow on
cell must
point up
① Ensure the airflow indicator
arrow points [UP] & the
cell’s Contact Pad faces to
the right side.
② Align cell (or filter) in guides
and slide into hood. If
installed properly, cell is
flush with hood front. If
not, cell is not installed
incorrectly.
③Replace Access Cover and latch.
1
2
E
A
C
