Ride Height Adjustment
19
Measurement:
• Ride height is defined as the distance between the ground and the
cars floor (Not plank)

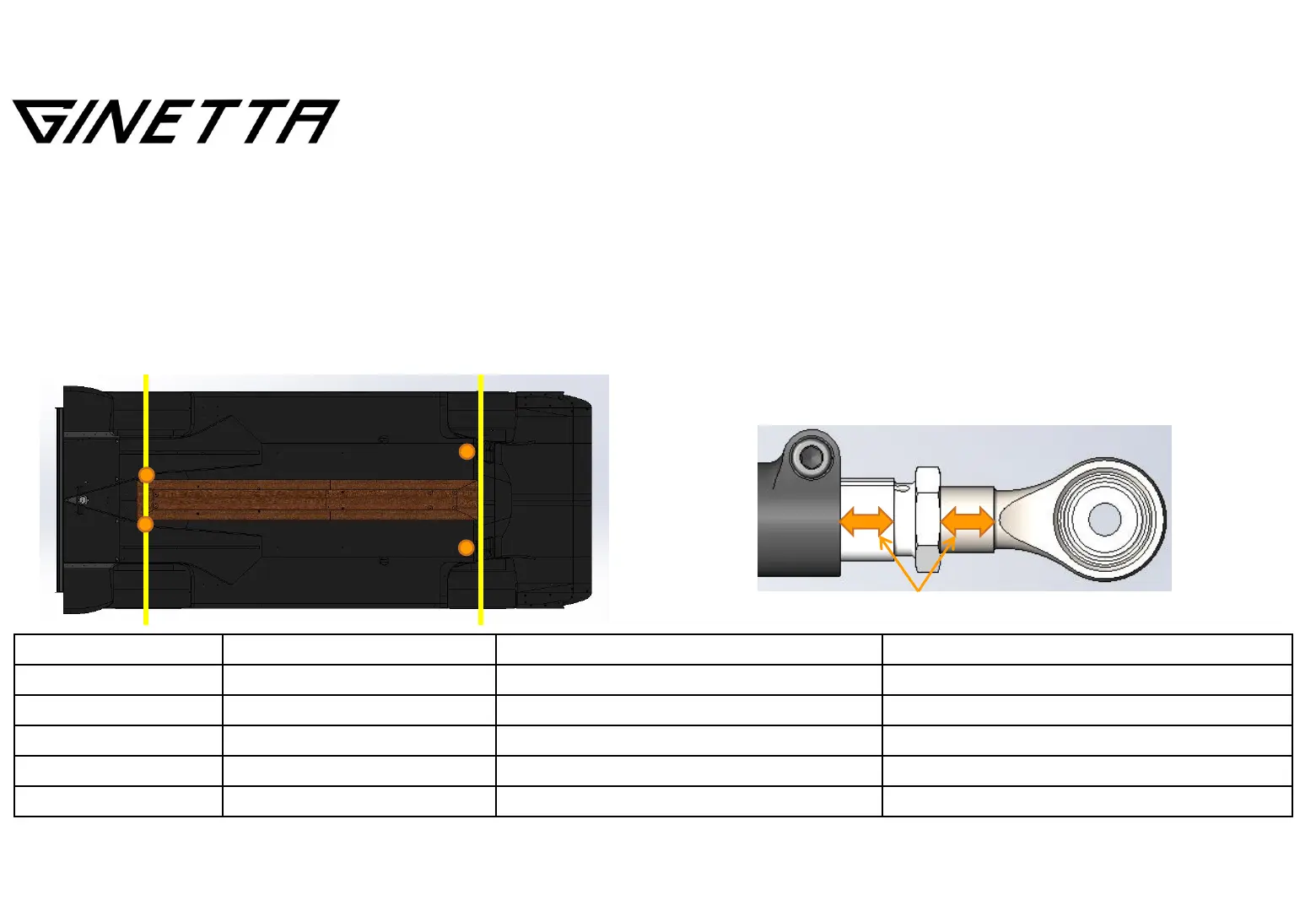

• Correct measurement location shown below:
• Front: level with Front axle centre, just behind nylon skid
• Rear: level with Rear axle centre, on flat section of floor
Adjustment Pushrod length change Front Ride height change Rear Ride Height change
One flat on adjuster 0.5 mm 0.86 mm 1.40 mm
Half turn on adjuster 1.5 mm 2.59 mm 4.20 mm
Full turn on adjuster 3 mm 5.18 mm 8.40 mm
Half turn on lower rod end 0.6 mm 1.09 mm 1.78 mm
Full turn on lower rod end 1.3 mm 2.18 mm 3.56 mm
Adjustment:
• Raise car on air jacks (ensure safety's or skates are in place)
• Loosen pinch bolt on pushrod
• Turn adjuster by required amount (Refer to table below, 22mm spanner)
• Ensure no more than 13mm thread showing
• For more adjustment reset the adjuster and wind out lower rod end
• Tighten pinch bolt to 16Nm (5mm hex key + 7mm spanner)
• Lower car and re-measure
13mm MAX
