Camber/Toe Relationship
22
Camber Adjustment Toe Correction Required
+1 camber shim(0.7mm) / +0.2 deg camber ~1 flat toe in / 1.2mm toe in / 0.4mm longer toe link
-1 camber shim(0.7mm) / -0.2 deg camber ~1 flat toe out / 1.2mm toe out / 0.4mm shorter toe link
Camber Adjustment:
• Rear toe changes 1.2mm out when adding a 0.7mm shim
Toe Adjustment:
• Rear camber increases by 0.04 deg when adding 1.2mm toe out
• Front camber and toe are independent of each other
• Rear camber and toe are dependent upon each other
• We recommend checking the tracking after a camber change

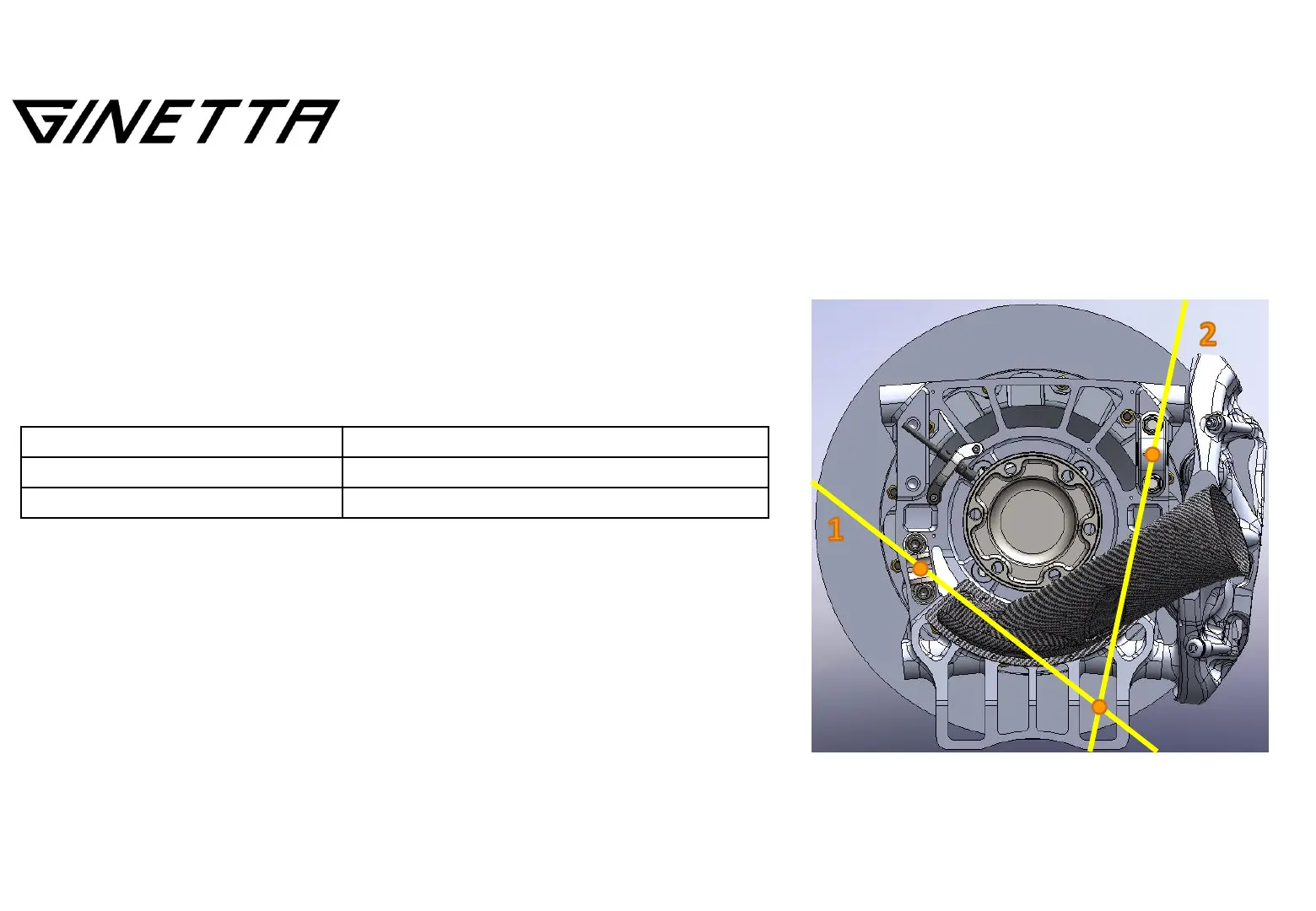

• Camber change rotates upright over axis 1
• Toe change rotates upright over axis 2
