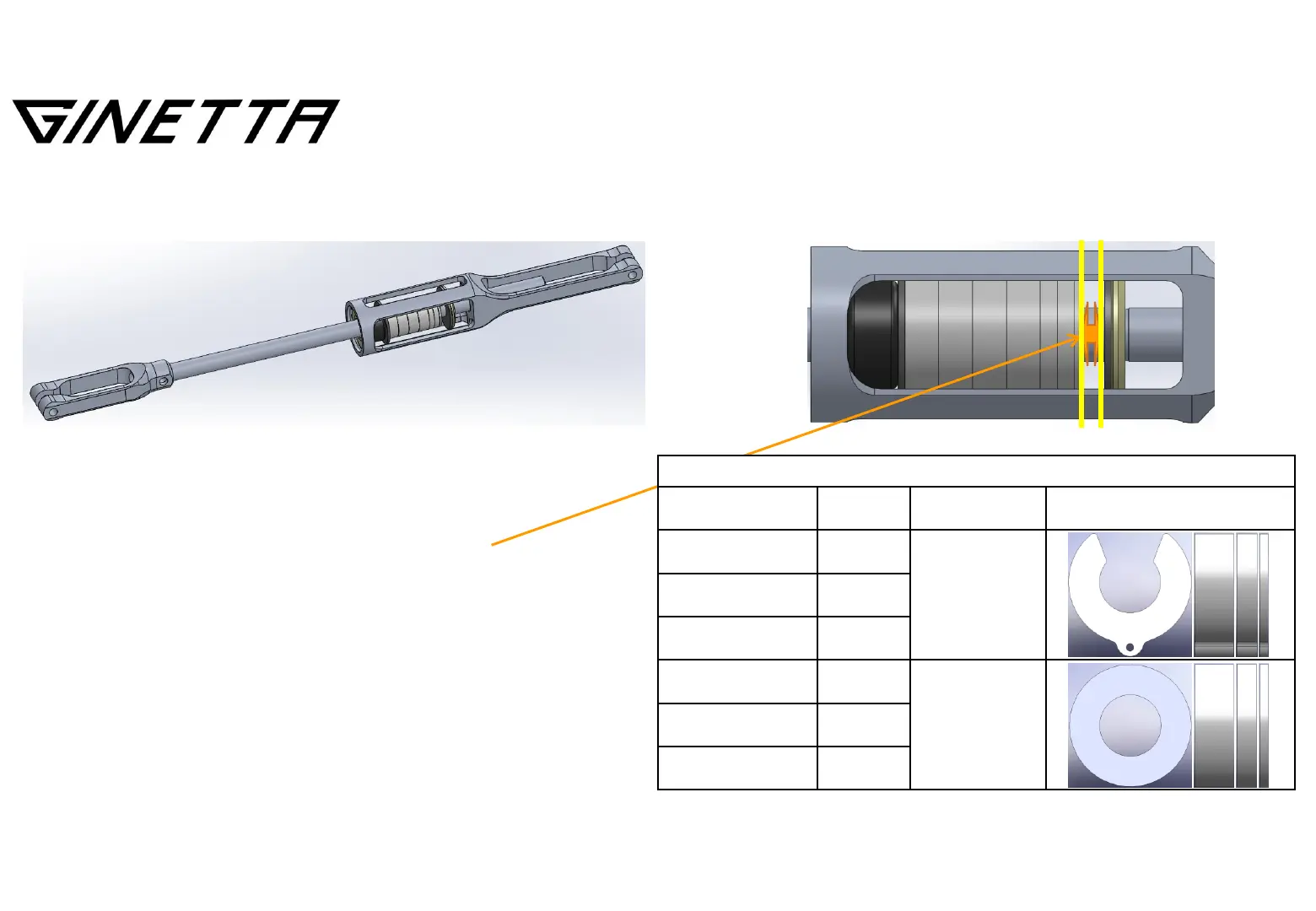

Front Heave Element Adjustment
29
• Front heave is a pull type bump stop
• Adjustment:
• Bump rubber stiffness/stack
• Adding/removing packers to adjust static gap
• Any type of springing method can be employed if the following
requirements are met
• Internal diameter >16 mm
• External diameter <42 mm
• Ensure closed packer always used either side of rubber/spring
Packer Options
Part Number Thickness Description
GIN-LMP3-C0100-A 2mm
Open
GIN-LMP3-C0101-A 5mm
GIN-LMP3-C0102-A 10mm
GIN-LMP3-C0112 2mm
Closed
GIN-LMP3-C0113 5mm
GIN-LMP3-C0114 10mm
